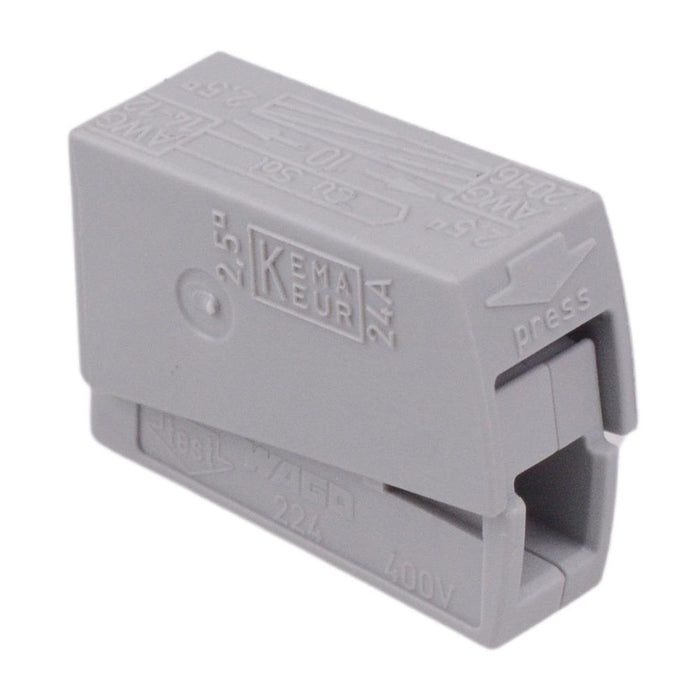

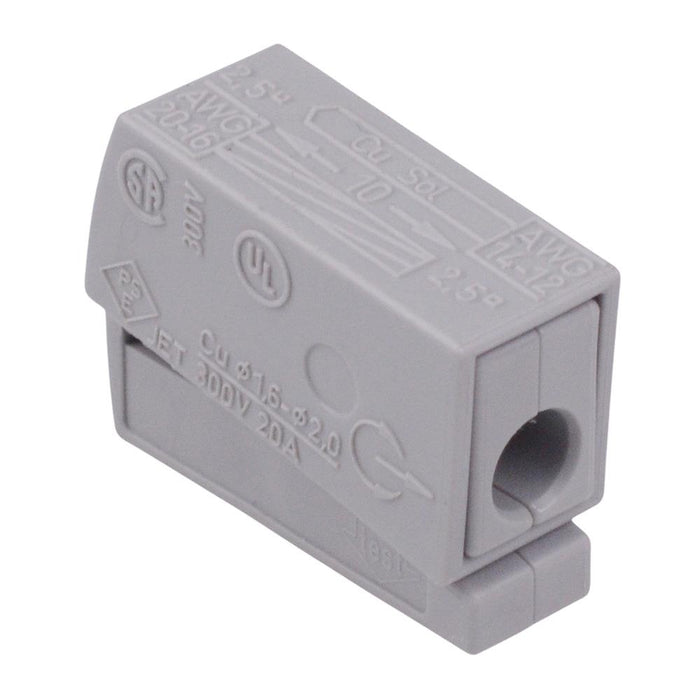

Wago 224-101 Lighting Connector 0.5-2.5mm²

by Wago
SKU 551008

MPN: 224-101

750 in stock
Original price £0.49 - Original price £0.49
Original price
£0.49 Inc VAT
£0.49 - £0.49
Current price £0.49 Inc VAT
The 224-101 is a standard lighting connector by WAGO, featuring a push button cage clamp suitable for use with solid and stranded wire conductors. The connectors utilise WAGO's push wire technology providing a quick push-in connection without any necessary tools. Due to its approval as independent equipment according to EN 60998, the lighting connectors can be used in nearly all electrical connections required for household and similar purposes in buildings.

  • Installation Side - Solid conductor size 1mm² to 2.5 mm²
  • Lighting Side – Solid, Stranded or Flexible 0.5 mm² to 2.5 mm²
  • Number of connection points: 2
  • Maximum Voltage: 400V
  • Maximum current: 24A
  • Strip length: 9-11mm
  • Dimensions: 15.5 x 8.5 x 20.5mm (Height x Width x Depth)
  • Specification
    Back order lead time 5 Days
    Colour Grey
    Contact material Copper Aluminium
    Current rating 24A
    Mounting type Cable Mount
    Number of ways 1
    Termination method Spring Lever
    Voltage rating 400V
    Wire range 0.5 to 2.5 mm²
