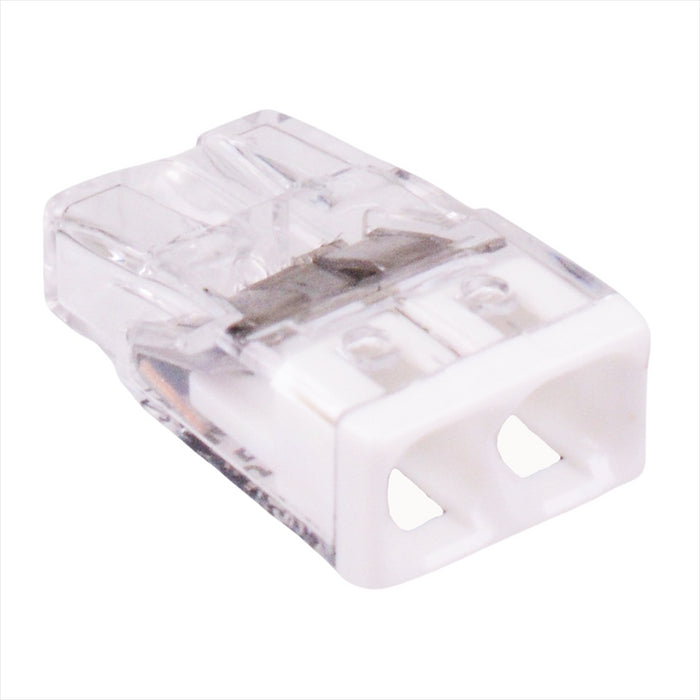

Wago 2-Way Push Wire Connector 24A 2273-202
by Wago
SKU 551003
MPN: 2273-202
Availability:
898 in stock
Original price
£0.22
-
Original price
£0.22
Original price
£0.22
Inc VAT
£0.22
-
£0.22
Current price
£0.22
Inc VAT
The 2273-202 are compact push wire connectors by WAGO and 50% smaller than the original 273 series used successfully in billions of applications. They save a great deal of space for electrical installations. The individually combinable connection cross sections from 0.5 to 2.5 mm², nominal current up to 24A and clear, unique color coding for quick access provide you with perfect installation conditions.
The transparent enclosure allows visual inspection for correct wiring. You can use the clear port to check if the conductors have been stripped properly, ensuring protection against accidental contact, making them easier and safer. The test slots are optimized for all standard test probes.
Wire size: 0.5 to 2.5mm² (20-16AWG) Voltage rating: 450V Current rating: 24A Strip length: 11mm Compatible mounting carrier: 221-500
The transparent enclosure allows visual inspection for correct wiring. You can use the clear port to check if the conductors have been stripped properly, ensuring protection against accidental contact, making them easier and safer. The test slots are optimized for all standard test probes.
Specification
| Back order lead time | 5 Days |
| Colour | White |
| Contact material | Copper |
| Current rating | 24A |
| Housing material | PC |
| Mounting type | Cable Mount |
| Number of ways | 2 |
| Termination method | Push In |
| Voltage rating | 450V |
| Wire range | 0.5 to 2.5 mm² |
