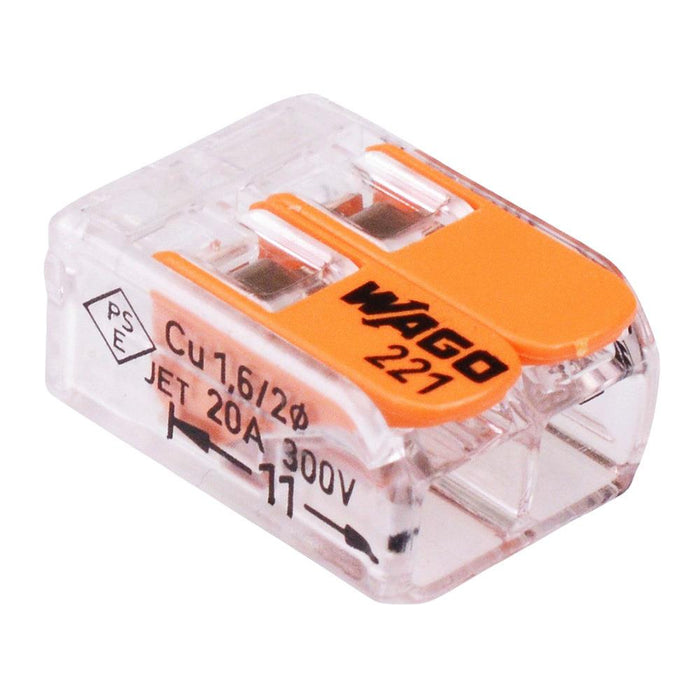

Wago 2-Way Compact Lever Connector 221-412
by Wago
SKU 356089
MPN: 221-412
Availability:
1306 in stock
Original price
£0.50
-
Original price
£0.50
Original price
£0.50
Inc VAT
£0.50
-
£0.50
Current price
£0.50
Inc VAT
The 221-412 is a 2 conductor lever operated connector by WAGO, suitable for electrical installations allowing solid, stranded and fine-stranded wires. The connectors can be connected faster, more reliably, while minimizing the amount of space in junction boxes: This is not just made possible by their compact design, which is 40% smaller than the well-established 222 Series, but also by their transparent housing, easier handling and two test ports.
The transparent housing allows you to clearly see see if the wires are connected properly and stripped to the correct length. Furthermore, two easily accessible test ports, one in the wire entry direction and one opposite this, provide easy test conditions, even when installed. WAGO's new 221 Series splicing connectors are also easier to use: The operating levers can now be opened and closed using noticeably less force. Lateral hollowed-out grips provide a firm hold on the 221 Series connectors in any situation.
Two test slots Wire size: 0.2 to 4mm² (24-12AWG) Voltage rating: 450V Current rating: 32A Strip length: 11mm Compatible mounting carrier: 221-500
The transparent housing allows you to clearly see see if the wires are connected properly and stripped to the correct length. Furthermore, two easily accessible test ports, one in the wire entry direction and one opposite this, provide easy test conditions, even when installed. WAGO's new 221 Series splicing connectors are also easier to use: The operating levers can now be opened and closed using noticeably less force. Lateral hollowed-out grips provide a firm hold on the 221 Series connectors in any situation.
Specification
Back order lead time | 5 Days |
Colour | Orange |
Contact material | Copper |
Current rating | 32A |
Housing material | PC |
Mounting type | Cable Mount |
Number of ways | 2 |
Operating temperature | 85°C Maximum |
Termination method | Spring Lever |
Voltage rating | 450V |
Wire range | 12-24AWG |
