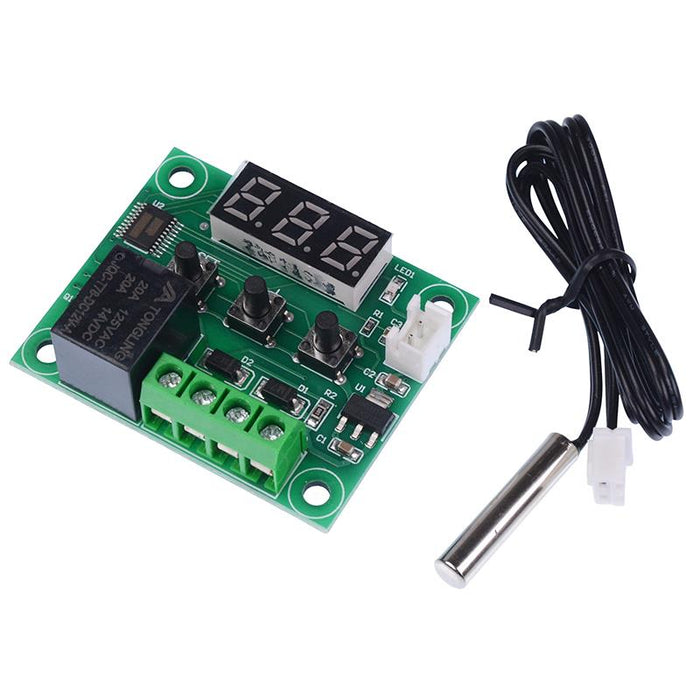

W1209 12V Digital Thermostat Sensor Temperature Control Module -50°C to 110°C

SKU 484515

MPN: 484515

Availability:
82 in stock
Original price £4.58 - Original price £4.58
Original price
£4.58 Inc VAT
£4.58 - £4.58
Current price £4.58 Inc VAT
W1209 digital temperature control module capable of controlling power to most types of electrical devices based on temperature sensed by the NTC sensor. The tactile switches allow configuration of various parameters including on/off trigger temperatures, and the temperature is displayed on the 7 segment display.

  • Temperature control mode: On/Off
  • Temperature range: -50°C to +110°C
  • Resolution: -9.9 to 99.9 0.1°C, other temperatures 1°C
  • Control accuracy: 0.1°C
  • Measurement accuracy accuracy: 0.1°C
  • Refresh rate: 0.5 seconds
  • Input Power: 12VDC
  • Measuring Inputs: NTC (10K 0.5%)
  • Output: 1 Channel Relay Output, Capacity: 10A
  • Dimensions: 48 x 40mm
  • Static Current: <=35mA, Current: <=65mA
  • Specification
    Back order lead time 30 Days
