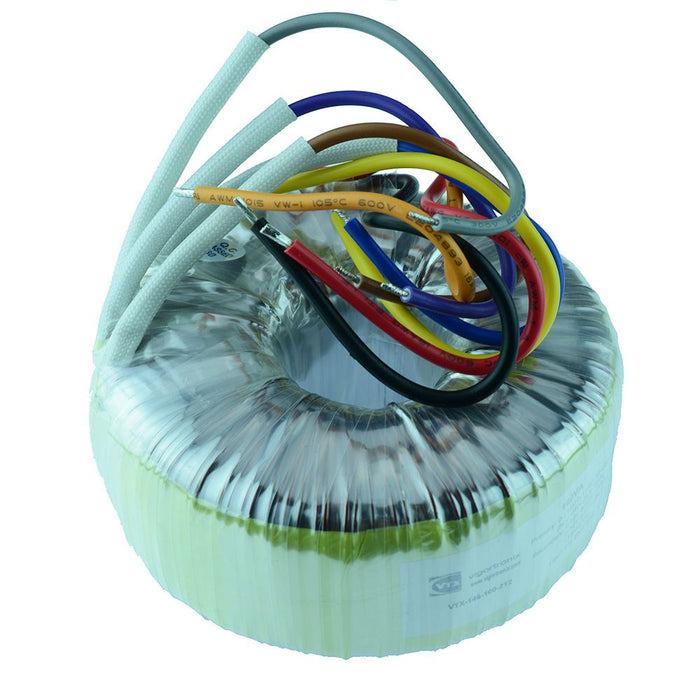

VTX-146-160-212 Toroidal Transformer 160VA 0-12V Vigortronix
by Vigortronix
SKU 480287
MPN: VTX-146-160-212
Availability:
9 in stock
Original price
£27.85
-
Original price
£27.85
Original price
£27.85
£27.85
-
£27.85
Current price
£27.85
The VTX-146-160-212 is a high quality toroidal transformer featuring dual primary and secondary windings. The transformer features thermal fuses fitted to each primary winding, and a very low level radiated magnetic field.
Dual primary winding: 115V+115V Dual secondary winding: 0-12V 0-12V Power: 160VA Supplied with mounting kit Dimensions: 47 x 105mm (Height x Diameter) Compliant standards: EN61558, EN60950, UL, C-UL and CE
Specification
| Back Order Lead Time | 5 Days |
| Diameter | 105mm |
| Height | 47mm |
| Output Current | 6.67A |
| Power | 160VA |
| Primary Voltage | 2 x 115V |
| Regulation | 8% |
| Secondary Voltage | 2 x 12V |
| Weight | 1600g |
