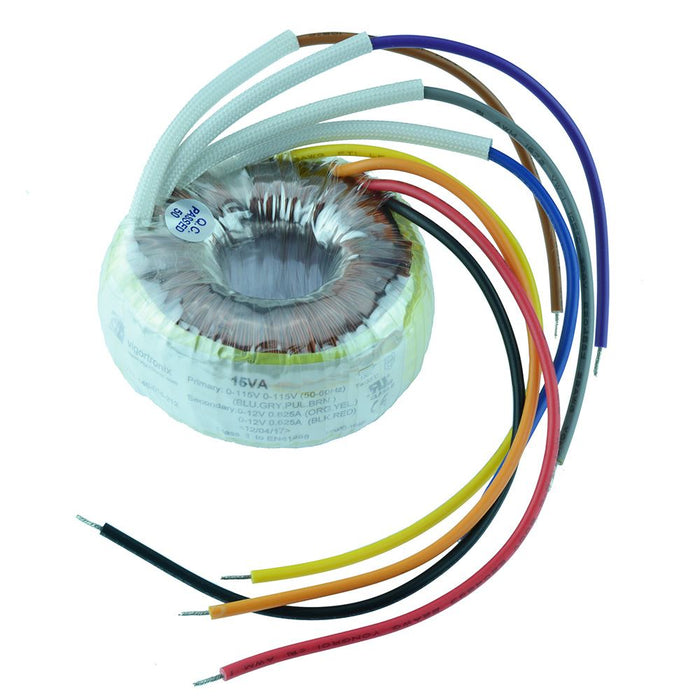

VTX-146-015-212 Toroidal Transformer 15VA 0-12V Vigortronix
by Vigortronix
SKU 480281
MPN: VTX-146-015-212
Availability:
Only 5 left!
Original price
£15.33
-
Original price
£15.33
Original price
£15.33
Inc VAT
£15.33
-
£15.33
Current price
£15.33
Inc VAT
The VTX-146-015-212 is a high quality toroidal transformer featuring dual primary and secondary windings. The transformer features thermal fuses fitted to each primary winding, and a very low level radiated magnetic field.
Dual primary winding: 115V+115V Dual secondary winding: 0-12V 0-12V Power: 15VA Supplied with mounting kit Dimensions: 36 x 65mm (Height x Diameter) Compliant standards: EN61558, EN60950, UL, C-UL and CE
Specification
| Back order lead time | 5 Days |
| Diameter | 65mm |
| Height | 36mm |
| Output current | 0.63A |
| Power | 15VA |
| Primary voltage | 2 x 115V |
| Regulation | 16% |
| Secondary voltage | 2 x 12V |
| Weight | 330g |
