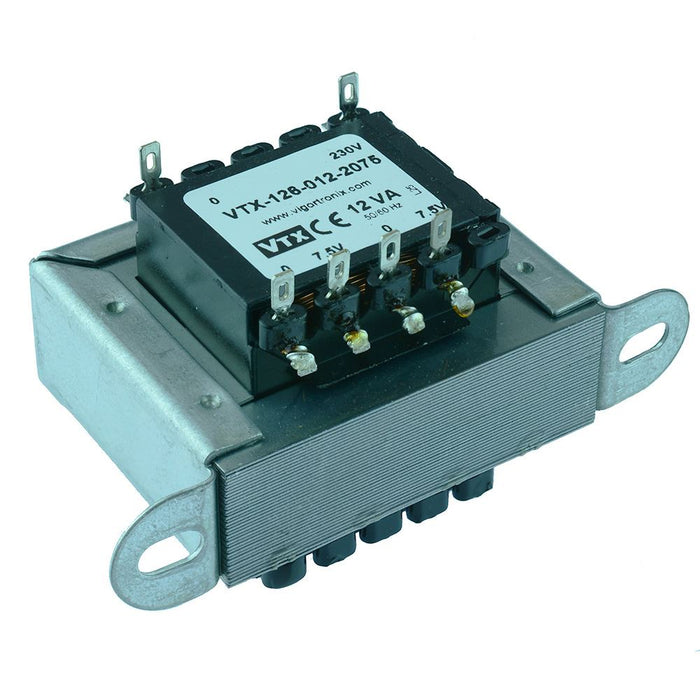

VTX-126-012-2075 Chassis Mount Transformer 230V 12VA 7.5V+7.5V Vigortronix
by Vigortronix
SKU 480242
MPN: VTX-126-012-2075
Availability:
Out of stock
Sold out
Original price
£15.21
-
Original price
£15.21
Original price
£15.21
Inc VAT
£15.21
-
£15.21
Current price
£15.21
Inc VAT
The VTX-126-012-2075 is a high quality chassis mount transformer featuring a single 230V primary winding and 7.5V twin secondary winding. The transformer features 12VA power and can be connected in series or parallel.
Double section metric bobbins Primary winding: 230V Secondary winding: 7.5V+7.5V Power: 12VA Dielectric strength: 3750Vrms Manufactured and tested in accordance to EN61558, EN60950, CE
Specification
| Back order lead time | 5 Days |
| Dielectric strength | 3750Vrms |
| Height | 45mm |
| Length | 60mm |
| Output current | 0.8A |
| Power | 12VA |
| Primary voltage | 230VAC |
| Secondary voltage | 7.5V+7.5V |
| Weight | 390g |
| Width | 50mm |
