VTX-126-006-2045 Chassis Mount Transformer 230V 6VA 4.5V+4.5V Vigortronix
by Vigortronix
SKU 480232
MPN: VTX-126-006-2045
Availability:
6 in stock
Original price
£11.58
-
Original price
£11.58
Original price
£11.58
Inc VAT
£11.58
-
£11.58
Current price
£11.58
Inc VAT

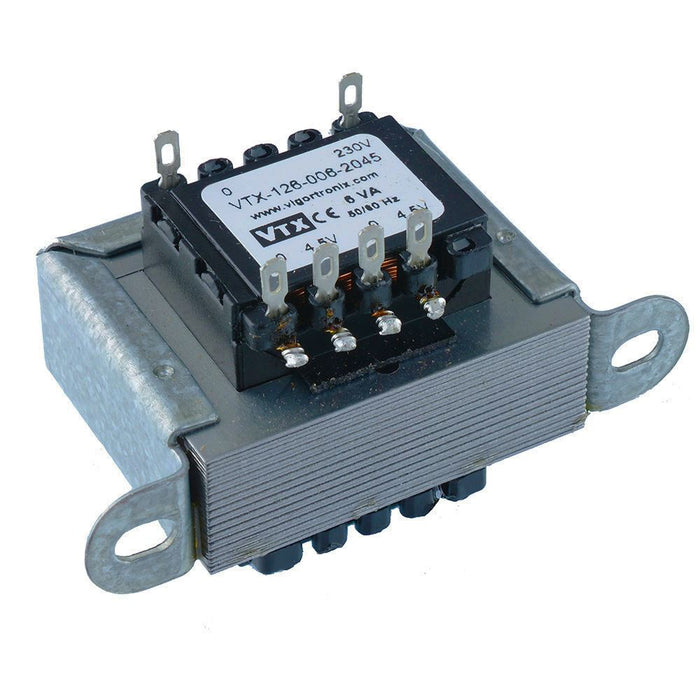

The VTX-126-006-2045 is a high quality chassis mount transformer featuring a single 230V primary winding and 4.5V twin secondary winding. The transformer features 6VA power and can be connected in series or parallel.
Double section metric bobbins Primary winding: 230V Secondary winding: 4.5V+4.5V Power: 6VA Dielectric strength: 3750Vrms Manufactured and tested in accordance to EN61558, EN60950, CE
Specification
| Back order lead time | 5 Days |
| Dielectric strength | 3750Vrms |
| Height | 36mm |
| Length | 45mm |
| Output current | 0.67A |
| Power | 6VA |
| Primary voltage | 230VAC |
| Secondary voltage | 4.5V+4.5V |
| Weight | 170g |
| Width | 37mm |
