VTX-120-3803-206 PCB Transformer 230V 3VA 6V+6V Vigortronix
by Vigortronix
SKU 480249
MPN: VTX-120-3803-206
Availability:
10 in stock
Original price
£7.61
-
Original price
£7.61
Original price
£7.61
£7.61
-
£7.61
Current price
£7.61

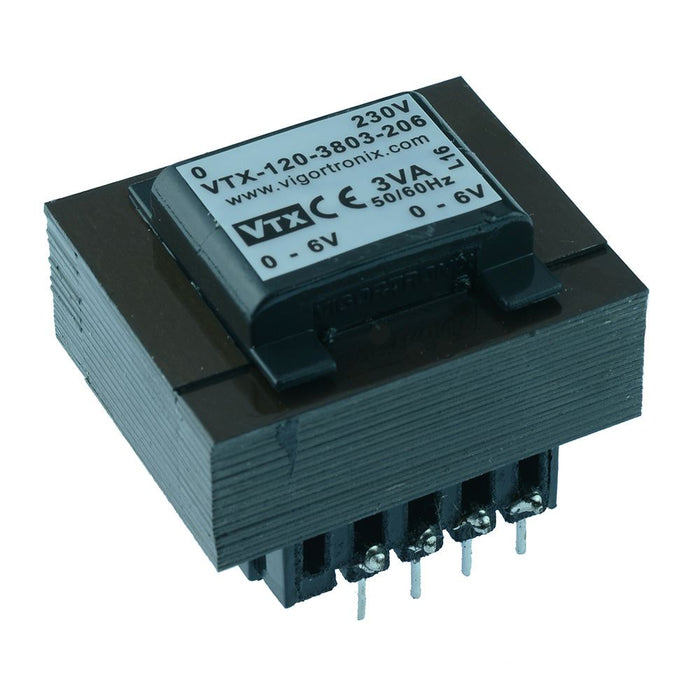

The VTX-120-3803-206 is a high quality PCB mount transformer featuring a single 230V primary winding and 6V twin secondary winding. The transformer features 3VA power and is suitable for 50/60Hz applications.
Primary winding: 230V Secondary winding: 6V+6V Power: 3VA 50/60Hz UL94-V0 material Temperature Class: - Class B (130°C) Dielectric strength: 4200Vrms Manufactured and tested in accordance to EN61558, EN60950, CE
Specification
| Back Order Lead Time | 5 Days |
| Dielectric Strength | 4200Vrms |
| Height | 30mm |
| Length | 38mm |
| Output Current | 0.25A |
| Power | 3VA |
| Primary Voltage | 230VAC |
| Secondary Voltage | 6V+6V |
| Weight | 140g |
| Width | 32mm |
