VR00410 4-Key Rear Mounting Stainless Steel Keypad IP65 APEM
by APEM
SKU 487743
MPN: VR00410
Availability:
Only 4 left!
Original price
£59.83
-
Original price
£59.83
Original price
£59.83
£59.83
£59.83
-
£59.83
Current price
£59.83

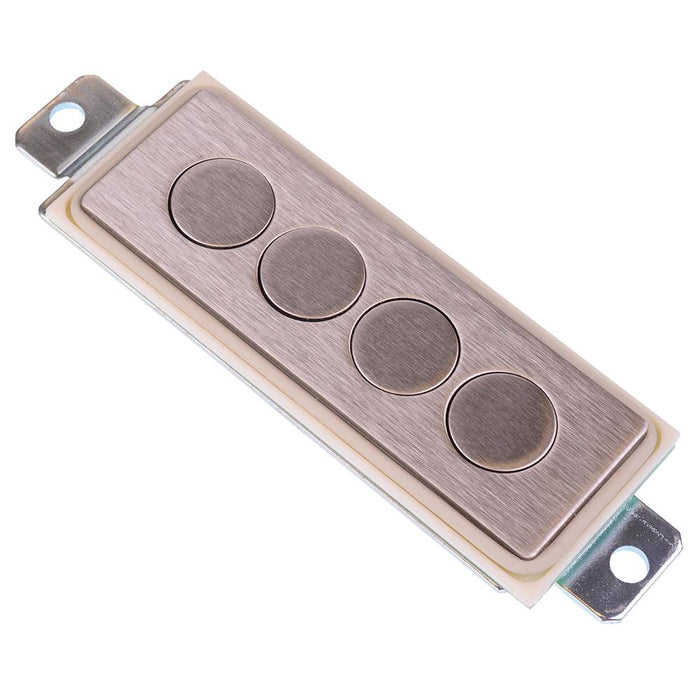

The VR00410 is a 4 button keypad manufactured by APEM, featuring a stainless steel front and panel sealed to IP65. The keypad is suitable for rear mounting and its rugged construction makes it ideal for harsh environments.
4 keys Sealed to IP65 NO contacts 316L stainless steel keytop Rating: 50mA at 12VDC 17mm round keys Panel thickness: 1.5-2.5mm Keypad size: 38.4 x 134.2mm (width x height) Mounting holes pitch: 31 x 95.4mm (width x height) 2 fixing holes 6.0mm diameter
Specification
| Actuation | Momentary |
| Back Order Lead Time | 10 Days |
| Contact Configuration | NO |
| Contact Material | Gold Plated |
| Contact Rating | 50mA 12VDC |
| Current Rating | 50mA |
| Illuminated | No |
| Material | Stainless Steel |
| MOQ | 1 |
| Mounting Style | Panel |
| Operating Temperature | -20°C to +70°C |
| Panel Thickness | 1.5-2.5mm |
| Product Series | PR |
| Protection Level | IP65 |
| Switch Operation | Off-(On) |
| Terminal Type | Connector |
| Voltage Rating | 12VDC |
