VR001000 APEM 1 Key Stainless Steel Keypad Harsh Environments IP65
by APEM
SKU 490181
MPN: VR001000
Availability:
1429 in stock
Original price
£6.98
-
Original price
£6.98
Original price
£6.98
Inc VAT
£6.98
-
£6.98
Current price
£6.98
Inc VAT

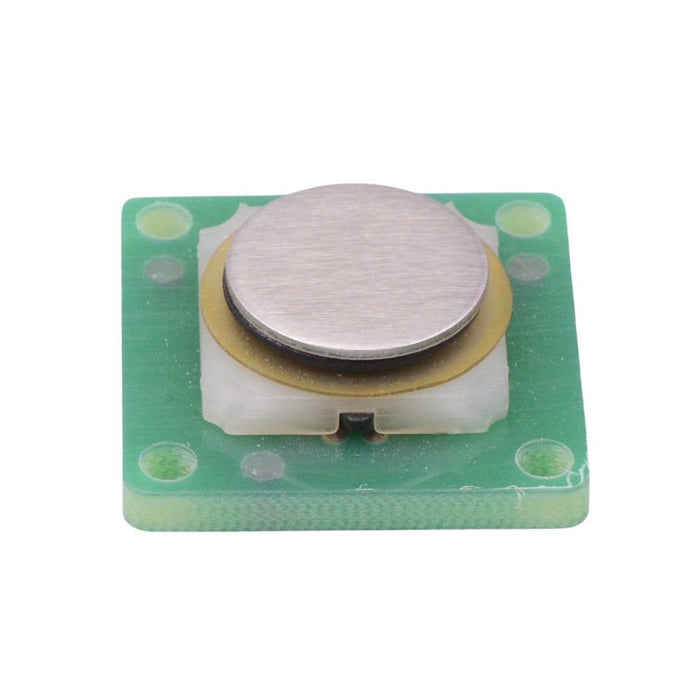

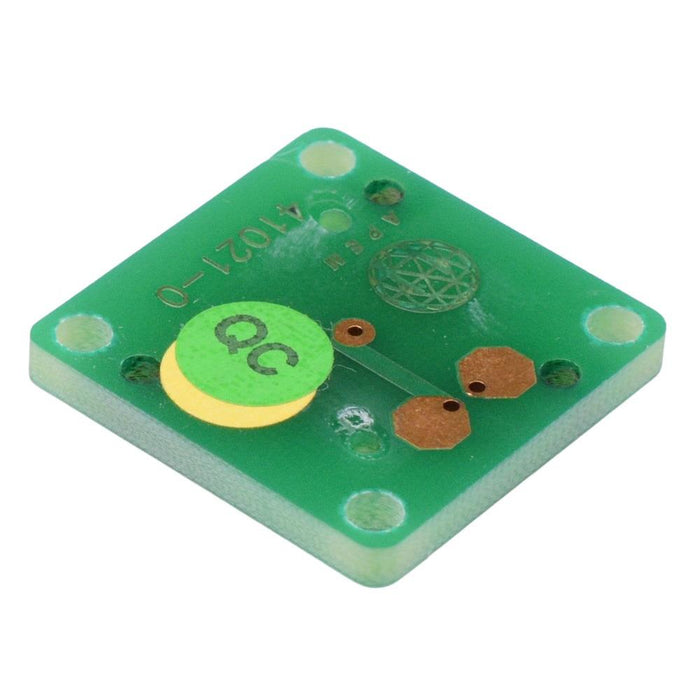

The VR001000 is a stainless steel keypad by APEM, manufactured from 316L stainless steel, suitable for harsh environments. They keypad is designed for rear mounting and is sealed to IP65. The keypad features a 17mm diameter key and can be combined with other keys to form a complete keypad.
Rear mounting Sealed to IP65 Material: 316L stainless steel Output: matrix (NO contacts) Max rating: 50mA 12VDC with resistive load Contact force: 4N Panel thickness: 2.5mm Panel cut-out: 17.5mm
Specification
| Actuation | Momentary |
| Contact material | Gold Plated |
| Current rating | 0.05A |
| Illuminated | No |
| Material | Stainless Steel |
| Moq | 1 |
| Mounting style | Panel |
| Operating force | 4N |
| Operating temperature | -20°C to +70°C |
| Panel cut out | 17.5mm |
| Panel thickness | 2.5mm |
| Product series | V |
| Protection level | IP65 |
| Voltage rating | 12VDC |
