Variable Frequency 555 Astable Electronics Kit

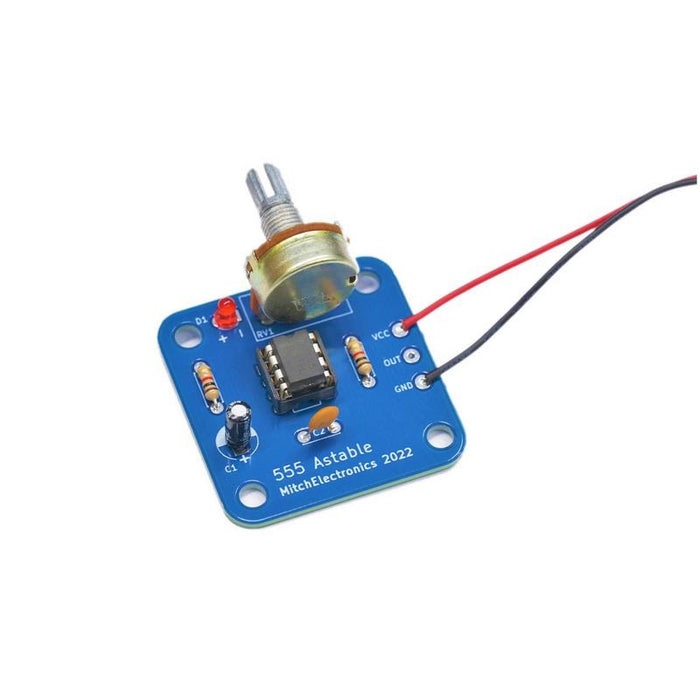

555 Astable electronics kit featuring a potentiometer for variable frequency, LED for indication, and external contact pad for use in other circuits. In this kit, you will be make a 555 astable circuit which is one of the most common uses for the 555 timer IC. This kit is a perfect introduction for begginers soldering and can be constructed in under an hour. Common applications include fake car alarm signals, signal indication, low-frequency gate control for audio, and as a clock source for digital logic circuits.

Battery: 9V PP3 (not included)

Operating voltage: 5-16V

Operating frequency: 0.7Hz to 144Hz

Output voltage : 0V to VIN

Output current : up to 150mA

PCB dimensions: 32 x 30mm

RoHS and REACH compliant

Instructions / documentation
What's in the kit?

1 x 8 DIP Socket

1 x 555 IC

1 x 100nF Capacitor

1 x 10uF Capacitor

2 x 1K Resistor

1 x 100K Potentiometer

1 x 3mm Red LED

1 x PP3 Connector

1 x PCB
