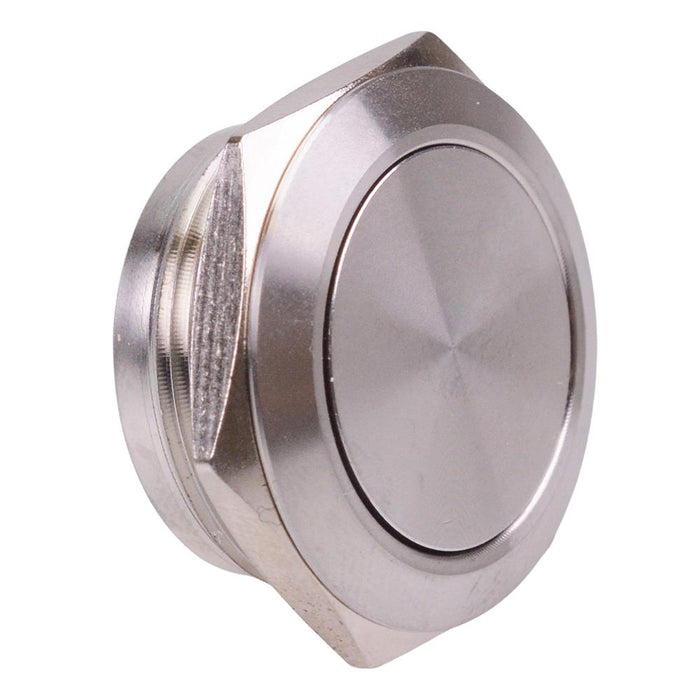

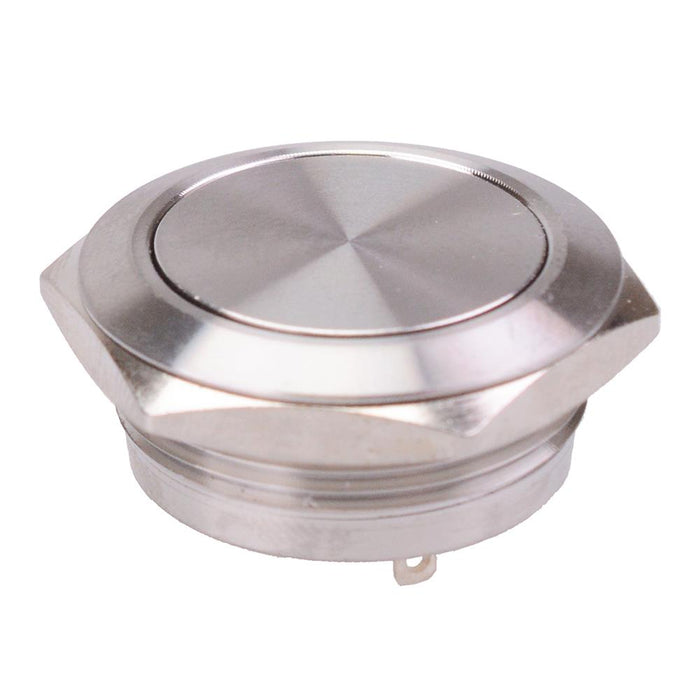

Vandal Resistant Off-(On) Momentary 22mm Ultra Short Switch SPST

by Langir
SKU 482553

MPN: L22U-FMS

Availability:
28 in stock
Original price £8.65 - Original price £8.65
Original price
£8.65 Inc VAT
£8.65 - £8.65
Current price £8.65 Inc VAT
Short body anti vandal momentary push button switch manfuactured from stainless steel, featuring NO / NC contacts. The switch requires a 22mm panel cut-out making it suitable for applications with limited space behind the panel.

  • Momentary switch action
  • SPST-NO contacts
  • Panel cut-out: 22mm
  • Maximum panel thickness: 3mm
  • Rating: 50mA 24VDC
  • Protection rating: IP67

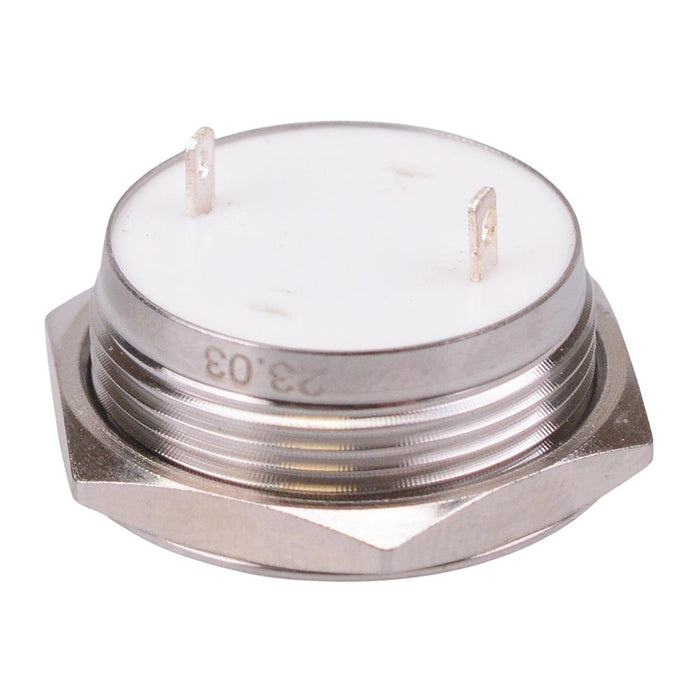

  • Solder terminals
  • Dimensions: 14.1 x 25mm (Length x Diameter)
  • Specification
    Actuation Momentary
    Back order lead time 45 Days
    Contact configuration SPST
    Contact rating 0.05A 24VDC
    Current rating 0.05A
    Electrical life 50,000 Cycles
    Illuminated No
    Illumination colour Non Illuminated
    Material Stainless Steel
    Mounting style Panel
    Number of positions 2
    Operating temperature -20°C to +55°C
    Panel cut out 22mm
    Panel thickness 1.0-3.0mm
    Protection level IP67
    Switch operation Off-(On)
    Terminal type Solder
    Voltage rating 24VDC
