Off-(On) Momentary 19mm Stainless Steel Vandal Push Button Switch 2A SPST
by Langir
SKU 550475
MPN: V19FP1S
Availability:
Out of stock
Sold out
Original price
£4.65
-
Original price
£4.65
Original price
£4.65
£4.65
£4.65
-
£4.65
Current price
£4.65

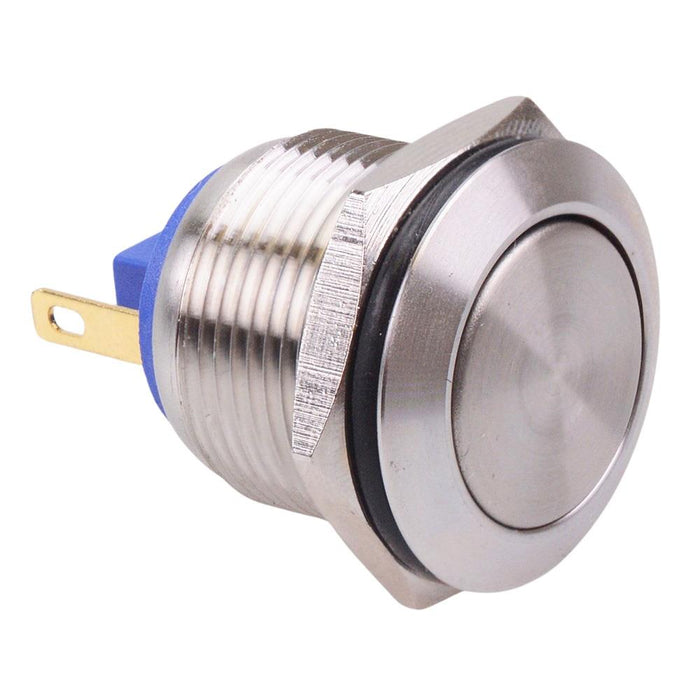

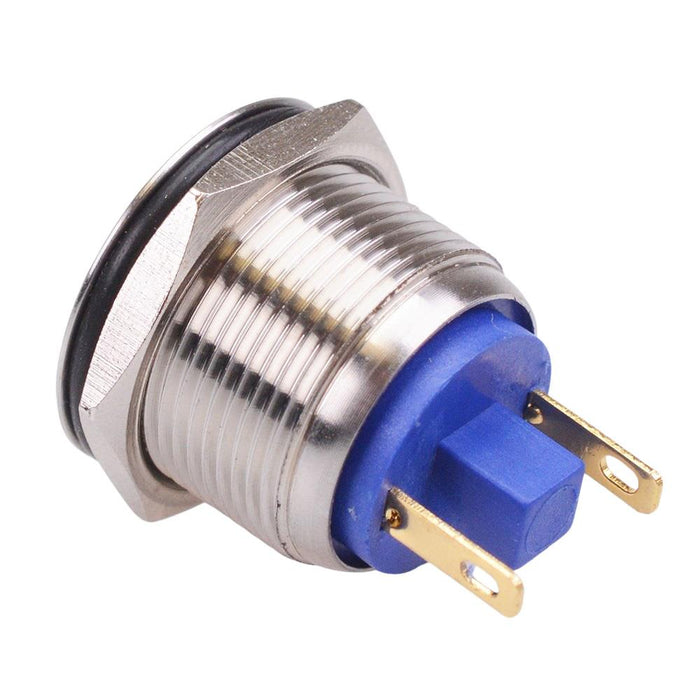

19mm vandal resistant push button switch offering excellent durability housed in an attractive stainless steel body. The switch features NO contacts and a IP65 sealed construction, suitable for a wide range of applications.
Momentary action SPST contacts Panel cut-out: 19mm Panel thickness: 10mm Body material: stainless steel 2.8x0.5mm terminals Rating: 2A 48VDC 1,000,000 cycles mechanical life
Specification
| Actuation | Momentary |
| Back Order Lead Time | 45 Days |
| Contact Configuration | SPST |
| Contact Rating | 2A 48VDC |
| Current Rating | 2A |
| Electrical Life | 200,000 Cycles |
| Illuminated | No |
| Illumination Colour | Non Illuminated |
| Material | Stainless Steel |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Operating Temperature | -20°C to +55°C |
| Panel Cut Out | 19mm |
| Protection Level | IP65 |
| Switch Operation | Off-(On) |
| Terminal Type | Solder |
| Voltage Rating | 48VDC |
