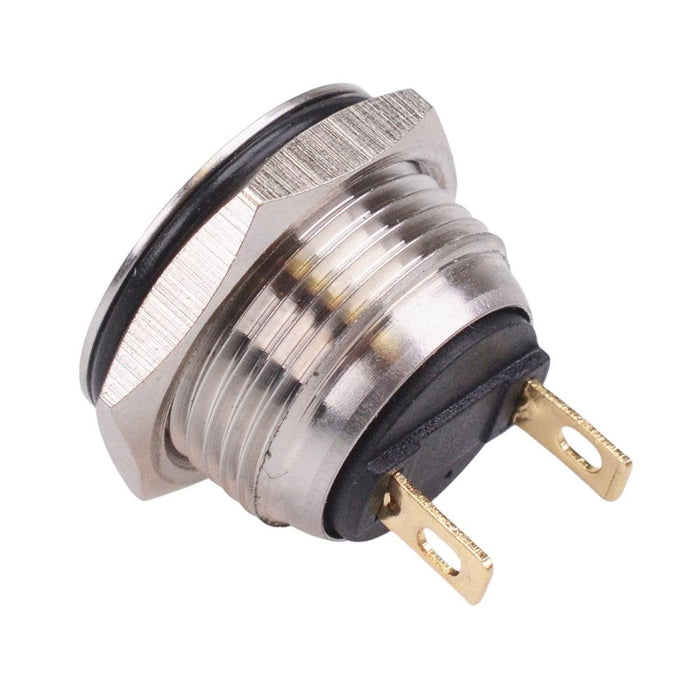

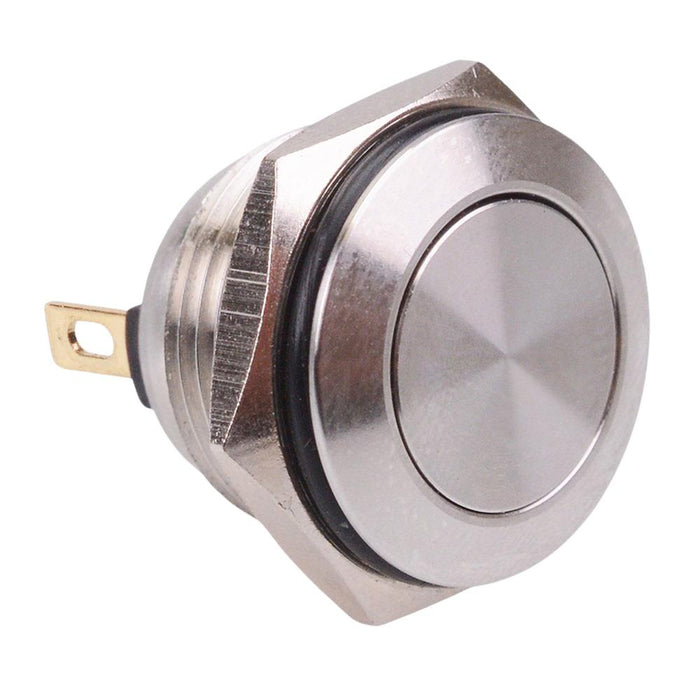

Vandal Resistant 16mm Stainless Steel Momentary Push Button Switch 2A SPST

by Langir
SKU 550474

MPN: V16FP1S

Availability:
28 in stock
Original price £4.38 - Original price £4.38
Original price
£4.38 Inc VAT
£4.38 - £4.38
Current price £4.38 Inc VAT
Vandal resistant push button switch offering excellent durability housed in attractive stainless steel design. The switch features NO contacts and a IP65 sealed construction, suitable for a wide range of applications.

  • Momentary action
  • SPST contacts
  • 16mm panel cut-out
  • Stainless steel body material
  • Solder terminals
  • 2A 48VDC rating
  • 1,000,000 cycles mechanical life
  • Specification
    Actuation Momentary
    Back order lead time 45 Days
    Contact configuration SPST
    Contact rating 2A 48VDC
    Current rating 2A
    Electrical life 200,000 Cycles
    Illuminated No
    Illumination colour Non Illuminated
    Material Stainless Steel
    Mounting style Panel
    Number of positions 2
    Operating temperature -20°C to +55°C
    Panel cut out 16mm
    Protection level IP65
    Switch operation Off-(On)
    Terminal type Solder
    Voltage rating 48VDC
