V000100 APEM 1 Key 20mm Stainless Steel Keypad IP65
by APEM
SKU 487462
MPN: V000100
Availability:
58 in stock
Original price
£8.91
-
Original price
£8.91
Original price
£8.91
£8.91
£8.91
-
£8.91
Current price
£8.91

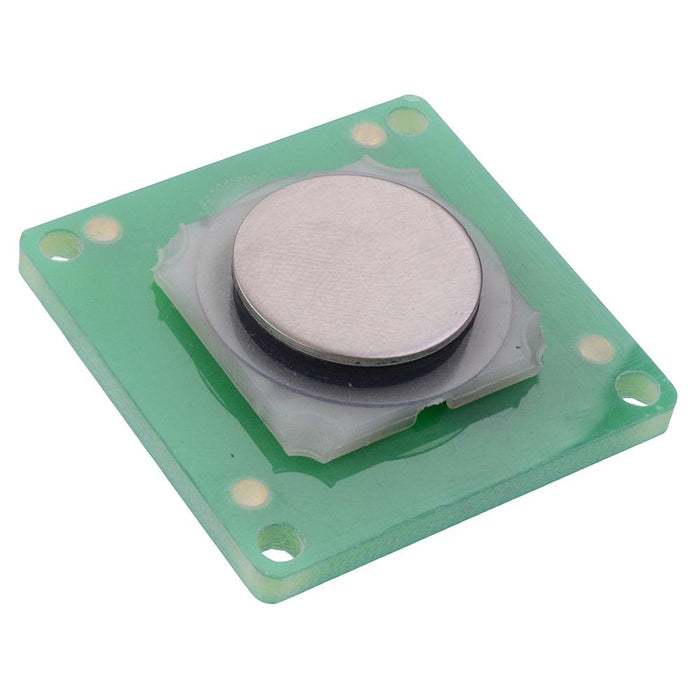

The V00100 is a stainless steel keypad by APEM, manufactured from 316L stainless steel, suitable for harsh environments. They keypad is designed for rear mounting and is sealed to IP65. The keypad features a 20mm diameter key and can be combined with other keys to form a complete keypad.
Rear mounting Sealed to IP65 Material: 316L stainless steel Output: matrix (NO contacts) Max rating: 50mA 12VDC with resistive load Contact force: 4N Panel thickness: 2.5mm Panel cut-out: 20mm Dimensions: 40.0 x 40.0mm (length x width)
Specification
| Actuation | Momentary |
| Back Order Lead Time | 10 Days |
| Contact Configuration | NO |
| Contact Material | Gold Plated |
| Contact Rating | 50mA 12VDC |
| Current Rating | 50mA |
| Illuminated | No |
| Material | Stainless Steel |
| MOQ | 1 |
| Mounting Style | Panel |
| Operating Temperature | -20°C to +70°C |
| Panel Cut Out | 20mm |
| Panel Thickness | 1.5-2.5mm |
| Product Series | PR |
| Protection Level | IP65 |
| Switch Operation | Off-(On) |
| Terminal Type | Connector |
| Voltage Rating | 12VDC |
