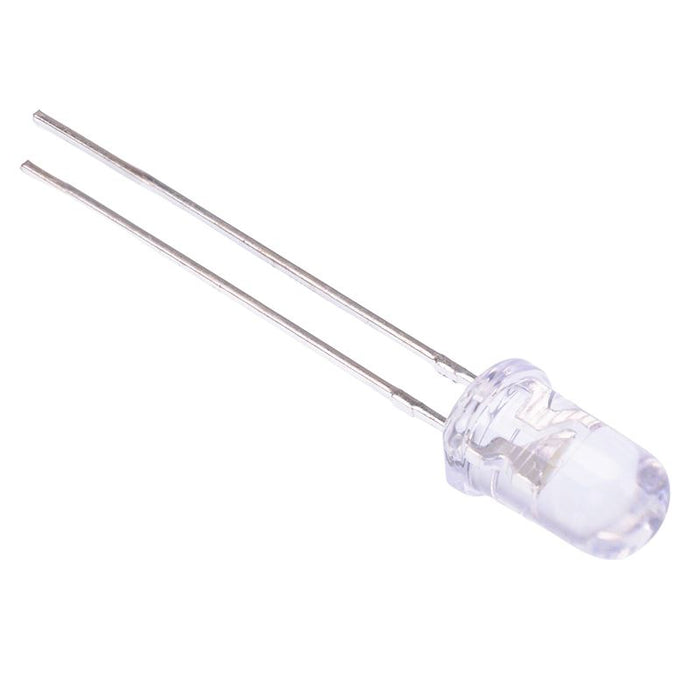

UV 5mm Water Clear LED 395nm 270mcd 25°

SKU 484894

MPN: 504UVAC2V-Q5D

Availability:
2563 in stock
Original price £0.18 - Original price £0.18
Original price
£0.18
£0.18 - £0.18
Current price £0.18
Ultra violet 5mm LED featuring a water clear package and 270mcd luminous intensity suitable for applications including use as indicators, backlighting and illumination.

  • Luminous intensity: 270mcd
  • Wavelength: 395nm
  • Viewing angle: 25°
  • Forward voltage: 3.2V
  • Forward current: 20mA
  • Suitable for through-hole mounting
  • Cathode identified as the shorter lead
  • 2.54mm lead pitch
  • Water clear lens
  • Excellent weather resistance
  • Long lifespan
  • Specification
    Back Order Lead Time 40 Days
    Colour UV
    Diameter 5mm
    Forward Current 20mA
    Forward Voltage 3.2V
    Lens Colour Clear
    Lens Shape Round
    Luminous Intensity 270mcd
    Mode Constant
    MOQ 5
    Mounting Style Through Hole
    Number of Pins 2
    Operating Temperature -40°C to +80°C
    Package 5mm
    Packaging Bulk
    Power Dissipation 80mW
    Viewing Angle 25°
    Wavelength 395nm
