UTS1032B Touch Screen Spectrum Analyzer 9kHz-3.2GHz Uni-T

by Uni-T
SKU 488965

MPN: UTS1032B

Availability:
Out of stock
Sold out
Original price £2,274.88 - Original price £2,274.88
Original price
£2,274.88 Inc VAT
£2,274.88 - £2,274.88
Current price £2,274.88 Inc VAT

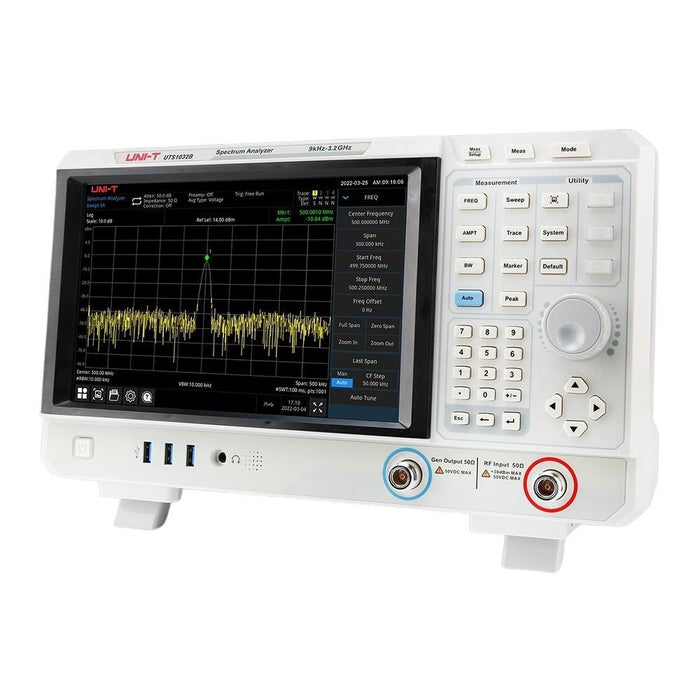

The UTS1032B is an affordable 3.2GHz spectrum analyzer for finding and improving EMI defects in advance. The model includes a tracking generator and features excellent selectivity, providing up to 10,001 sweep points and higher frequency resolution. The UTS1032B utilises a 10.1 inch high definition capacitive touch screen and 161dBm amplitude range with low bottom noise allowing accurate measurement of small signals.

  • Frequency measurement range: 9 kHz~3.2 GHz
  • Display average noise level can be as low as -161 dBm/Hz (typical value)
  • Phase noise <-98 dBc/Hz_Offset 10 kHz, typical value)
  • Full amplitude accuracy <0.7 dB
  • Up to 10001 scanning points
  • Minimum resolution bandwidth (RBW) 1Hz
  • Advanced function one key measurement (optional)
  • EMI Pre-compliance analysis function (optional)
  • Support analog demodulation analysis (optional)
  • Support digital demodulation analysis (optional)
  • Support tracking source output function
  • 10.1 inch 1280x800 HD capacitive touch screen
  • Provide USB/LAN interface, support SCPI protocol
  • Specification
    Back order lead time 10 Days
