UTi85A Professional Thermal Imaging Camera Uni-T

by Uni-T
SKU 488625

MPN: UTi85A

Availability:
Out of stock
Sold out
Original price £291.52 - Original price £291.52
Original price
£291.52 Inc VAT
£291.52 - £291.52
Current price £291.52 Inc VAT

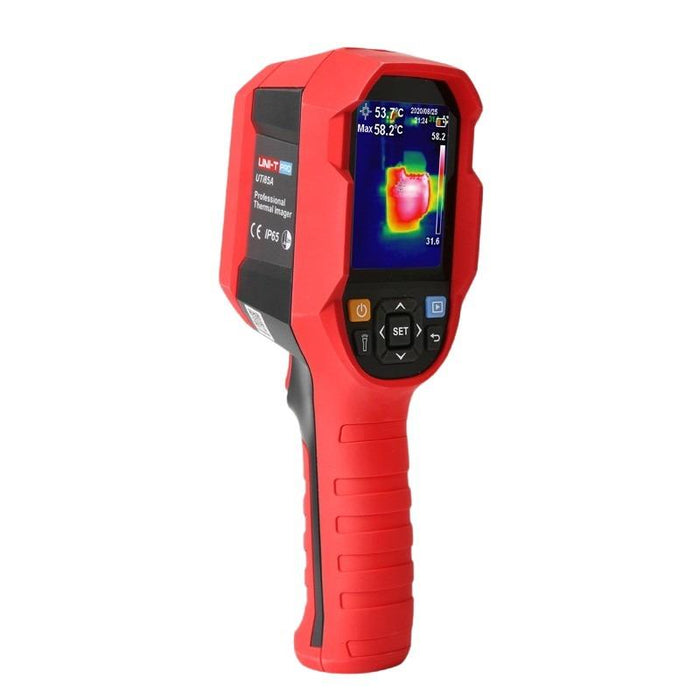

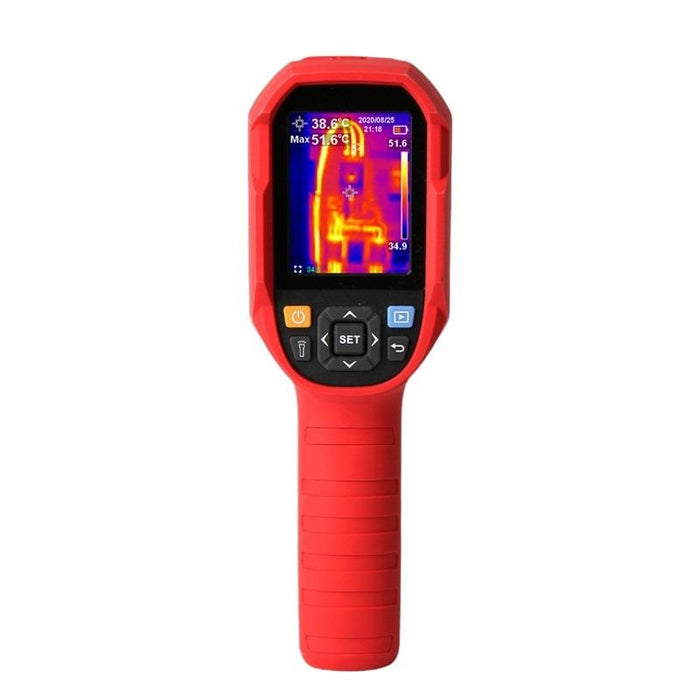

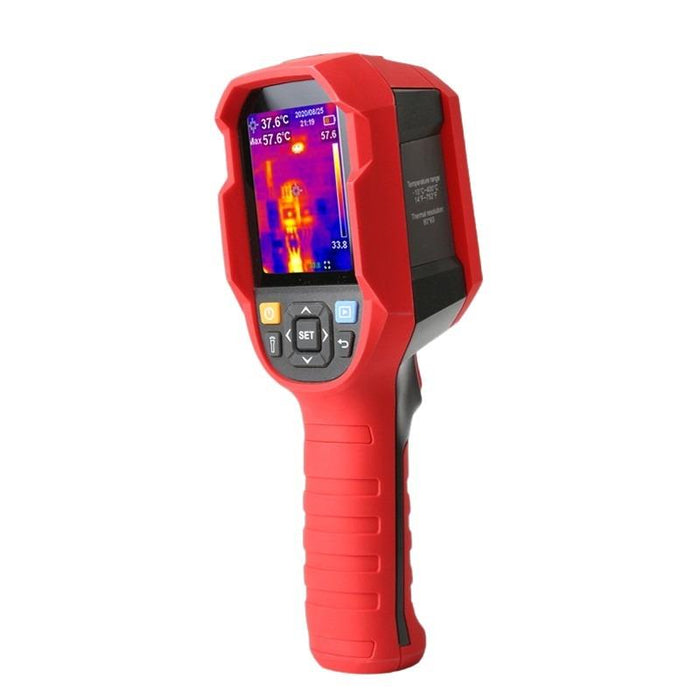

The UTi85A is a rugged and ergonomically designed thermal camera. It is powerful, user friendly and provides great performance. The UTi85A can automatically track the objective's temperature from -10℃ to 400℃. It is an economical professional troubleshooting tool, widely used in many applications.

  • Durable and user-friendly
  • 2.8" TFT display screen (320x240 Pixels)
  • IR resolution: 80x60
  • Temperature measurement range: -10℃ to 400℃ / 14℉ to 752℉
  • Auto alarm for high/low temperature
  • Auto tracking for hot spot/cold spot
  • Image capture
  • Colour palettes: 5 (White hot, Red hot, Ice blue, Rainbow, Ironbow)
  • LED flashlight
  • PC software analysis
  • Rechargeable Li-ion battery

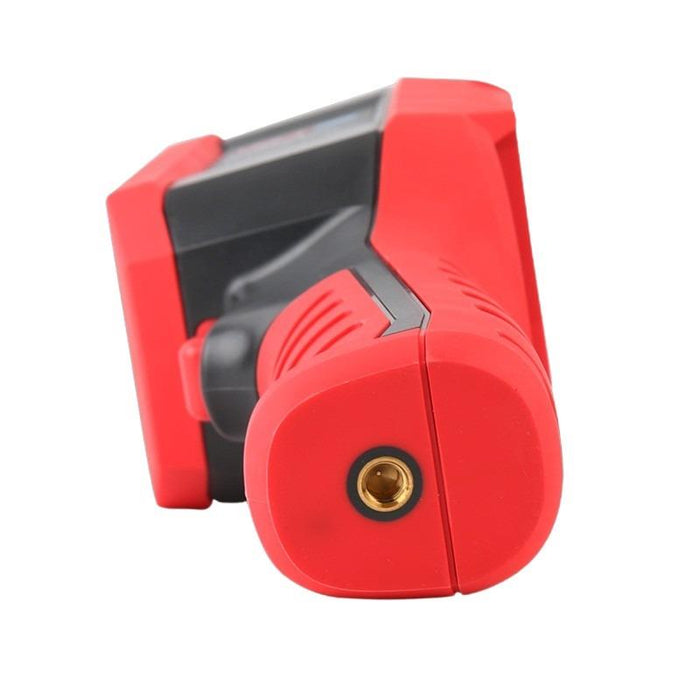

  • 1/4" tripod mounting hole
  • IP65
  • 2m drop proof
  • Specification
    Accuracy ±2℃ or ±2%
    Back order lead time 10 Days
    Battery Fixed Li-ion Battery
    Battery operation time ≥ 6 hours
    Colour palettes 5

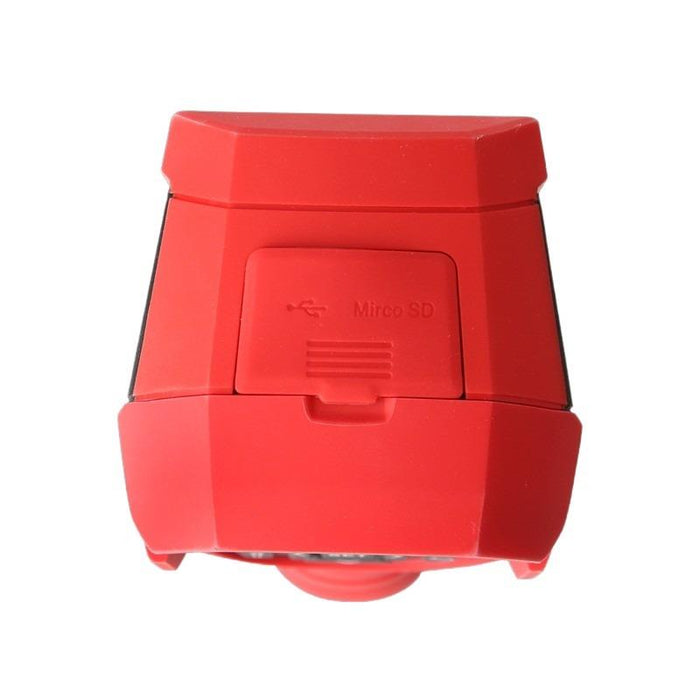

    Connectivity USB-C
    Display 2.8" TFT Display
    Field of view 51°×38°
    Focus Focus free
    Frame rate ≤9Hz
    Image modes Thermal
    Ip rating IP65
    Ir resolution 80x60
    Spatial resolution 11.1mrad
    Spectral range 8~14µm
    Temperature alarm Yes
    Temperature range -10℃ to 400℃
    Thermal sensitivity ≤150mK
