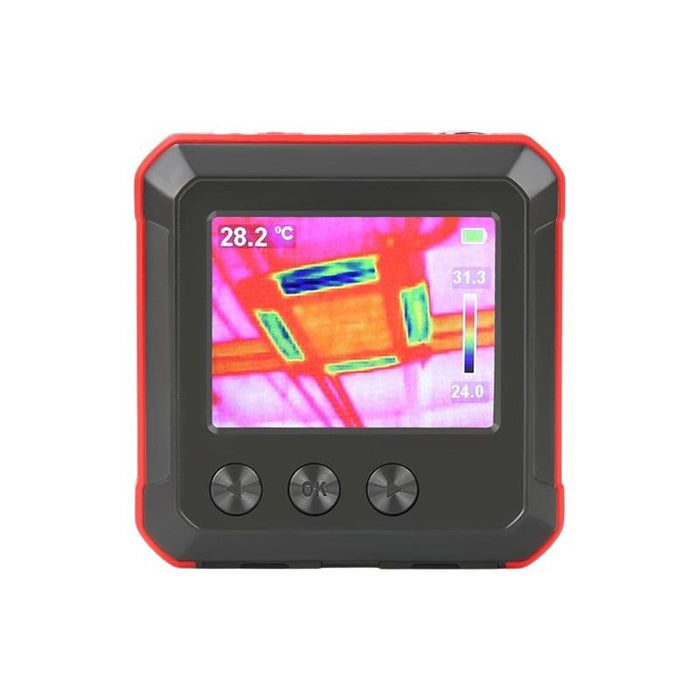

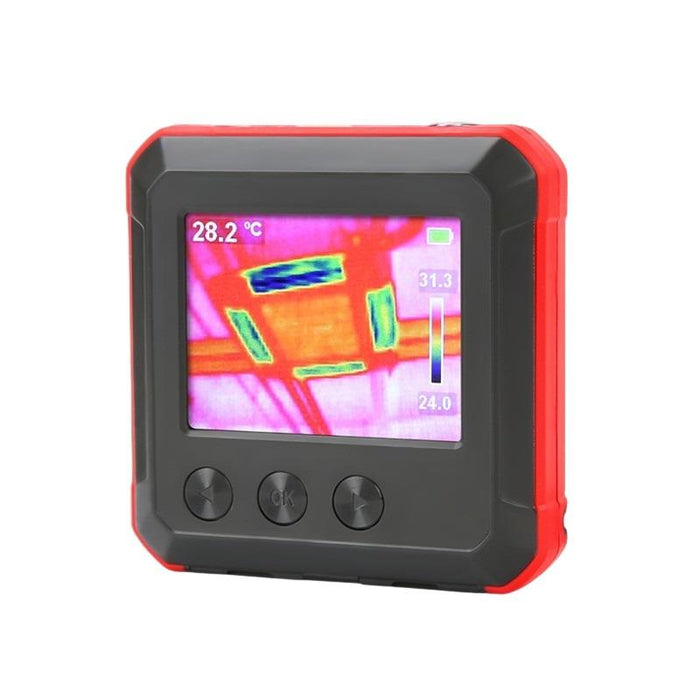

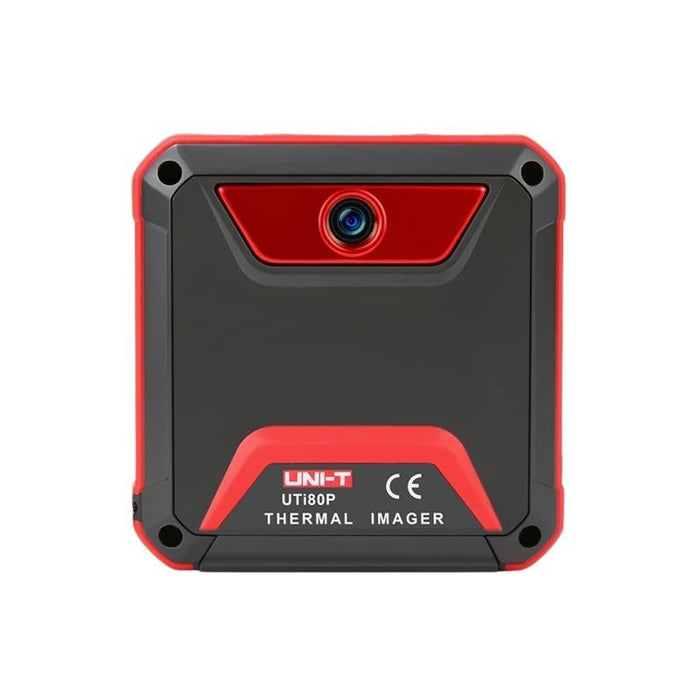

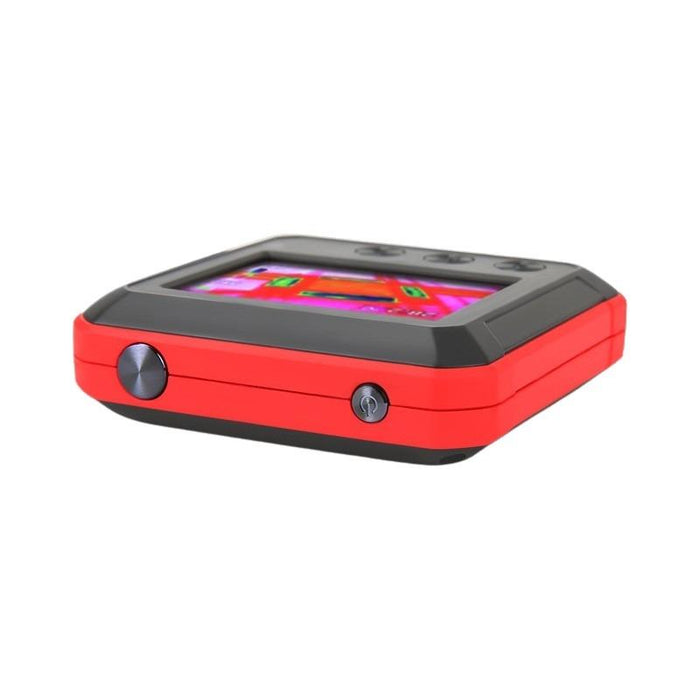

UTi80P Pocket Size Thermal Imaging Camera Uni-T
by Uni-T
SKU 488619
MPN: UTi80P
Availability:
Out of stock
Sold out
Original price
£258.95
-
Original price
£258.95
Original price
£258.95
Inc VAT
£258.95
-
£258.95
Current price
£258.95
Inc VAT
The UTi80P thermal camera is mini and portable in size, users can put it into pocket to go anywhere to identify and troubleshoot problems, it can automatically track the objects temperature from -10℃ to 400℃, which can be widely used in many applications.

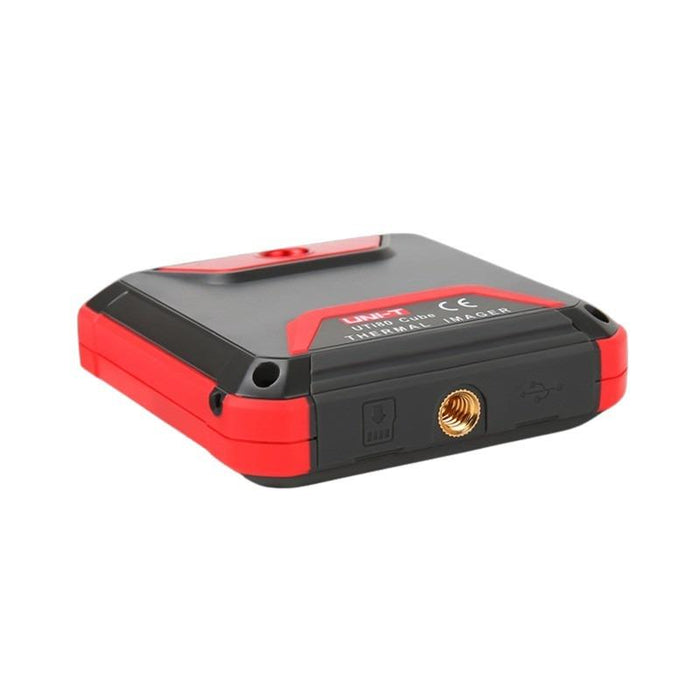

Mini and portable 2.4" TFT display screen (320x240 Pixels) IR resolution: 80x60 Temperature measurement range: -10℃ to 400℃ / 14℉ to 752℉ Auto alarm for for high/low temperature Auto tracking for hot spot/cold spot Image capture Colour palettes: 3(Iron, Rainbow, Grey) PC software analysis Rechargeable Li-ion battery 1/4" tripod mounting hole 1m drop proof
Specification
| Accuracy | ±2℃ or ±2% |
| Back order lead time | 10 Days |
| Battery | Fixed Li-ion Battery |
| Battery operation time | ≥ 3.5 hours |
| Connectivity | Micro USB |
| Display | 2.4" TFT Display |
| Field of view | 50°×38° |
| Focus | Focus free |
| Frame rate | ≤9Hz |
| Ir resolution | 80x60 |
| Spatial resolution | 11mrad |
| Spectral range | 8~14µm |
| Temperature range | -10℃ to 400℃ |
| Thermal sensitivity | ≤150mK |
