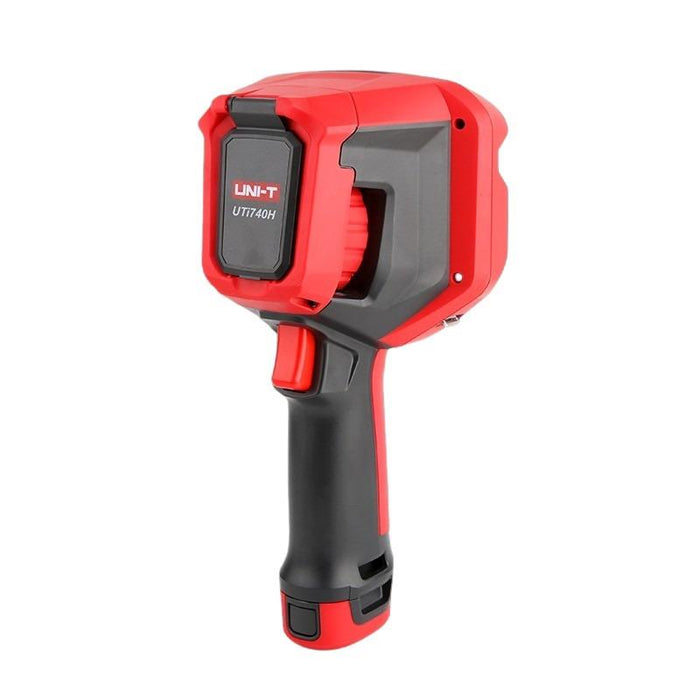

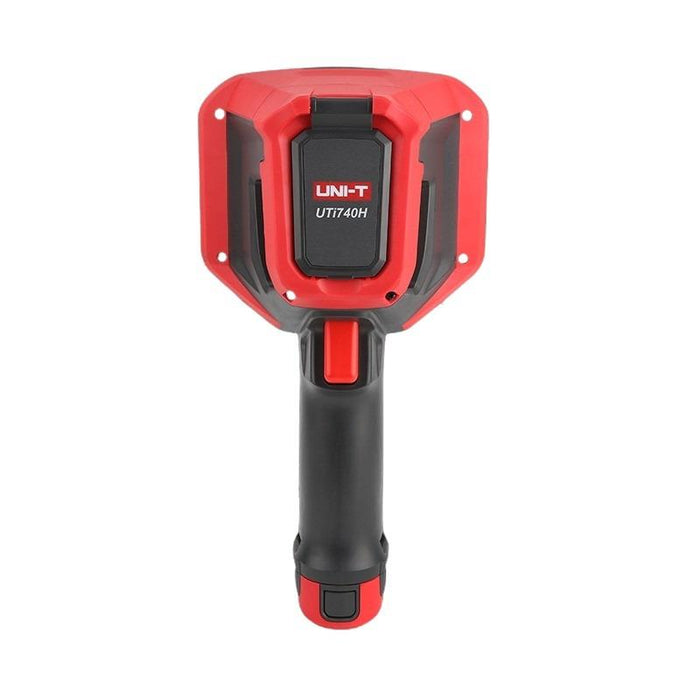

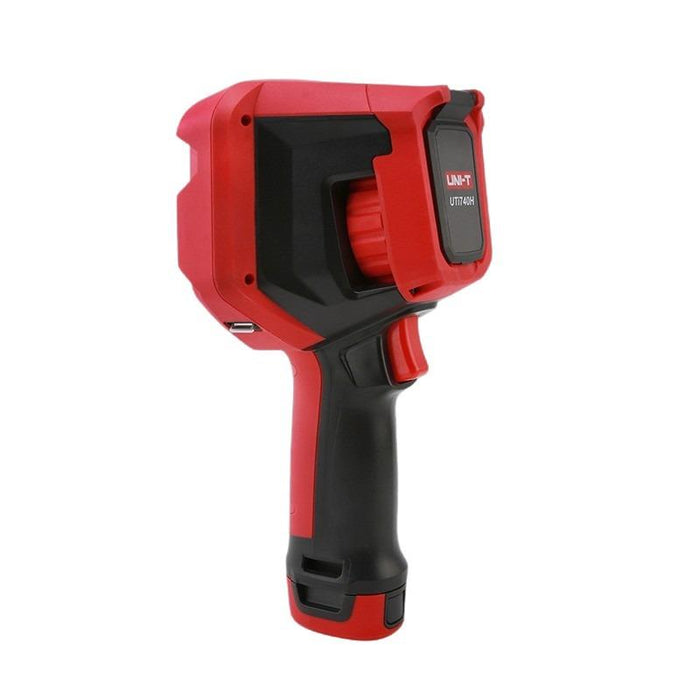

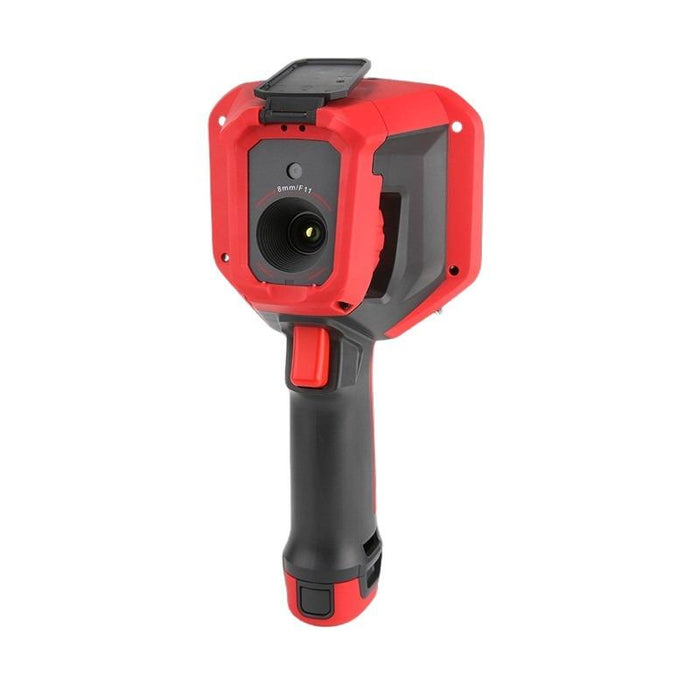

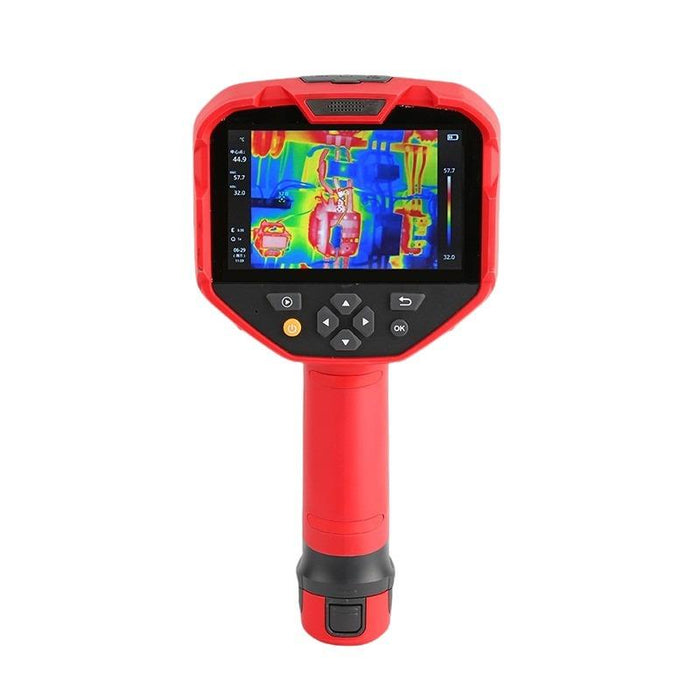

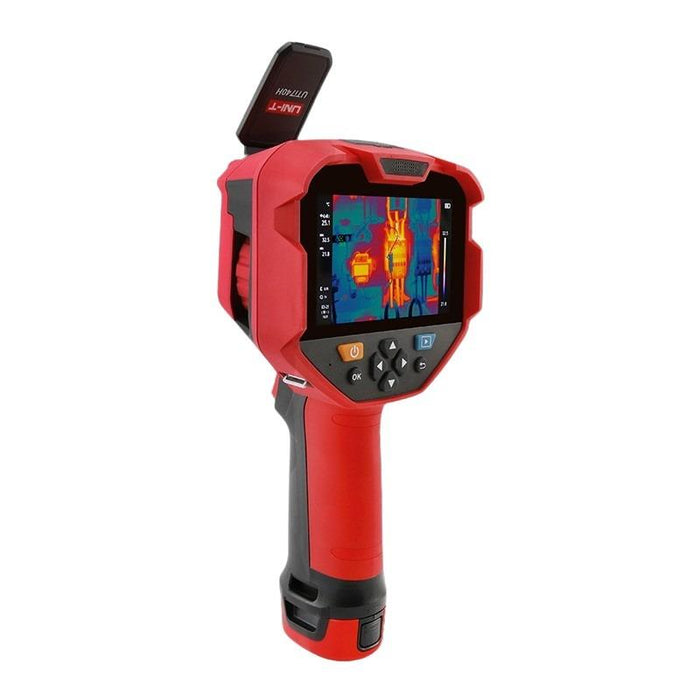

UTi740H Wi-Fi Professional Thermal Imaging Camera Uni-T

by Uni-T
SKU 488636

MPN: UTi740H

Out of stock
Sold out
Original price £1,964.14 - Original price £1,964.14
Original price
£1,964.14 Inc VAT
£1,964.14 - £1,964.14
Current price £1,964.14 Inc VAT
The UTi740H is a professional enhanced thermal camera that specially designed for industrial use with wide temperature range: -30℃~650℃. Its large 4.3" IPS display screen can clearly display 384x288 IR resolution and 5MP digital camera. The professional manual focus lens can flexibly adjust the focal length according to different objectives distance and provide high quality image. The UTi740H thermal camera is also with other features such as: WiFi capability, Isotherm, on screen analyzer, etc. It is a perfect troubleshooting tools for many industrial applications.

  • 4.3" IPS display (800x480)
  • IR resolution:384x288
  • Temperature measurement range: -30℃~650℃
  • On screen analyzer: 5 Points/1 Line/5 Rectangles/5 Circles
  • Digital camera resolution: 5MP
  • Focus: Manual focus
  • Digital zoom: 2x, 4x
  • Image modes: Thermal,Visual image,Fusion,PIP
  • Colour palettes: 7 (White hot, Black hot, Red hot, Ironbow, HC Rainbow, Rainbow, Lava)
  • Isotherm: 2 (Auto/Manual)
  • Wi-Fi connection through Mobile App
  • PC software: analysis and real-time image projection
  • 5200mAh replaceable battery pack (Type-C rechargeable)
  • IP54
  • 2m drop proof
  • Specification
    Accuracy ±2℃ or ±2%
    Back order lead time 10 Days
    Battery Detachable Li-ion Battery
    Battery operation time ≥ 5 hours
    Colour palettes 7
    Connectivity USB-C
    Digital camera resolution 5MP
    Display 4.3" IPS
    Field of view 28°×21°
    Focus Manual
    Frame rate ≤25Hz
    Image modes Thermal, Visual, Fusion, PIP
    Ip rating IP54
    Ir resolution 384x288
    On screen analyzer 5 Points, 1 Line, 5 Rectangles, 3 Circles
    Spatial resolution 1.3mrad
    Spectral range 8~14µm
    Temperature alarm Yes
    Temperature range -30℃ to 650℃
    Thermal sensitivity ≤60mK
    Wi-fi Yes
