UTi730E Wi-Fi Professional Thermal Imaging Camera Uni-T

by Uni-T
SKU 488632

MPN: UTi730E

Availability:
Out of stock
Sold out
Original price £718.79 - Original price £718.79
Original price
£718.79 Inc VAT
£718.79 - £718.79
Current price £718.79 Inc VAT
The UTi730E is an advanced thermal camera with Wi-Fi capability. Its large 3.5" IPS display screen can clearly display 320x240 thermal resolution 2MP visual camera, or a blended image of both. UTi730E's detachable battery pack is also convenient for easy and quick battery change, allowing continuously work for long periods of time.

  • 3.5" IPS display screen (640x480 Pixels)
  • IR resolution: 320x240
  • Temperature measurement range: -20℃ to 550℃ / -4℉ to 1022℉
  • Auto alarm for high/low temperature
  • Auto tracking for hot spot/cold spot
  • On screen analyzer :5 Points/1 Line/3 Rectangles/3 Circles
  • Image capture
  • Digital camera resolution: 2MP
  • Digital zoom: 2x, 4x
  • Image modes: Thermal,Visual image,Fusion,PIP
  • Colour palettes: 7(White hot, Black hot, Red hot, Ironbow, HC Rainbow, Rainbow, Lava)
  • Isotherm (Auto/Ratio/Below/Above/Section/Manual)
  • LED flashlight
  • Wi-Fi connection through Mobile App
  • QR Code - photo management
  • PC software: analysis and real-time image projection
  • 5200mAh replaceable battery pack (Type-C rechargeable)

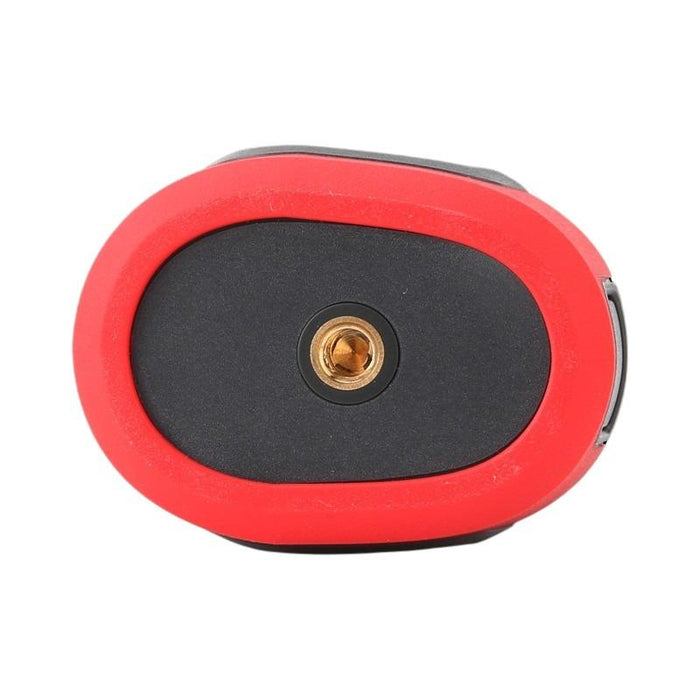

  • 1/4" tripod mounting hole
  • IP54
  • 2m drop proof
  • Specification
    Accuracy ±2℃ or ±2%
    Back order lead time 10 Days
    Battery Detachable Li-ion Battery
    Battery operation time ≥ 3 hours
    Colour palettes 7
    Connectivity USB-C
    Digital camera resolution 2MP
    Display 3.5" IPS
    Field of view 56°×42°
    Focus Focus Free
    Frame rate ≤9Hz
    Image modes Thermal, Visual, Fusion, PIP
    Ip rating IP54
    Ir resolution 320x240
    On screen analyzer 5 Points, 1 Line, 3 Rectangles, 3 Circles
    Spatial resolution 3mrad
    Spectral range 8~14µm
    Temperature alarm Yes
    Temperature range -40℃ to 400℃
    Thermal sensitivity ≤65mK
    Wi-fi Yes
