UTi720M Professional Android Thermal Imaging Smartphone Camera Module Uni-T

by Uni-T
SKU 488617

MPN: UTi720M

Out of stock
Sold out
Original price £258.95 - Original price £258.95
Original price
£258.95 Inc VAT
£258.95 - £258.95
Current price £258.95 Inc VAT

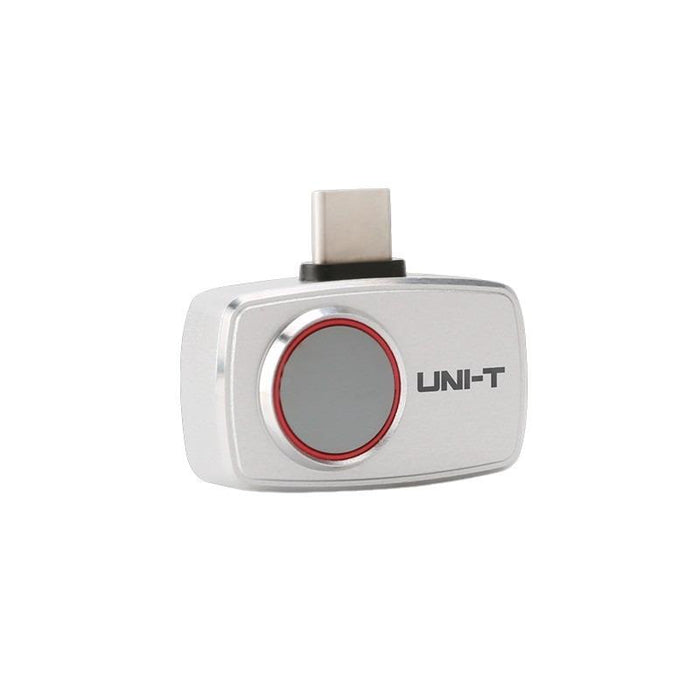

The UTi720M is a professional thermal camera module for android smartphones, which is compact, portable, and easy to operate through connecting with mobile phones. It's 256x192 IR resolution provides clear image with a fast response. UTi720M features a wide temperature measurement range -20℃ ~ 200℃. Users can troubleshoot HVAC problems or investigate heat source issues around the house and hidden issues faster and easier with this thermal camera module. It is a perfect tool for DIY homeowners, outdoor lovers, engineers, contractors and builders etc.

  • IR resolution: 256x192
  • Temperature measurement range: -20℃ to 200℃ / -4℃ to 392℃
  • Auto alarm for high/low temperature
  • Auto tracking for hot spot/cold spot
  • On screen analyzer: 3 Points/3 Lines /3 Rectangles
  • Image capture
  • Video recording
  • Colour palettes: 7(White hot, Black hot, Red hot Ironbow, Lava, Rainbow, Rainbow HC)
  • Phone: Android (USB Type-C interface)
  • 1m extension cable
  • 1m drop proof
  • Specification
    Accuracy ±2℃ or ±2%
    Back order lead time 10 Days
    Colour palettes 7
    Connectivity USB-C
    Field of view 56°×42.2°
    Focus Focus free
    Frame rate ≤25Hz
    Image modes Thermal, Fusion, PIP
    Ir resolution 256x192
    On screen analyzer 3 Points, 3 Lines, 3 Rectangles
    Spatial resolution 3.8mrad
    Spectral range 8~14µm
    Temperature alarm Yes
    Temperature range -20℃ to 200℃
    Thermal sensitivity ≤50mK @ 25℃
