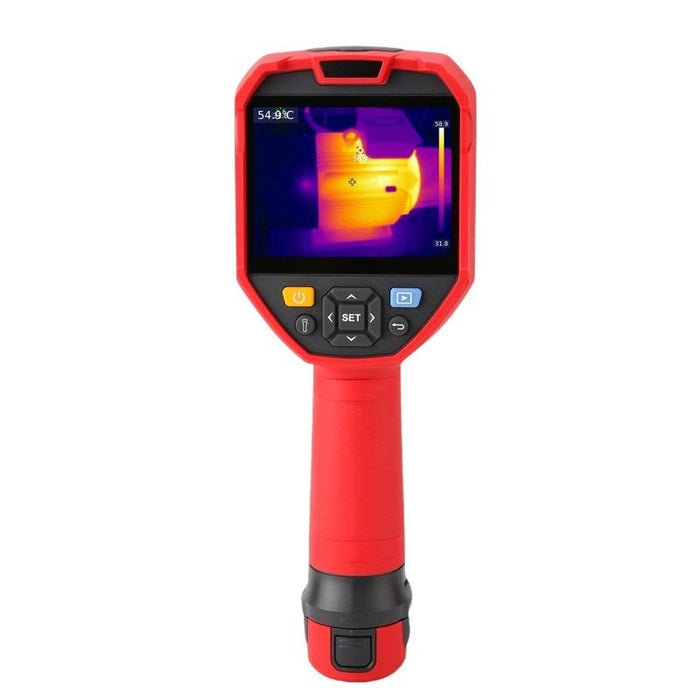

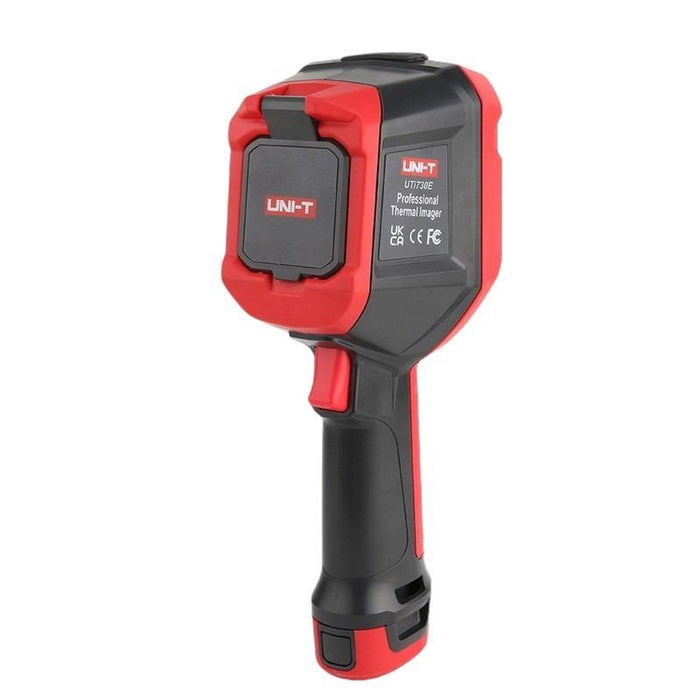

UTi720E Wi-Fi Professional Thermal Imaging Camera Uni-T

by Uni-T
SKU 488631

MPN: UTi720E

Availability:
Out of stock
Sold out
Original price £515.21 - Original price £515.21
Original price
£515.21 Inc VAT
£515.21 - £515.21
Current price £515.21 Inc VAT

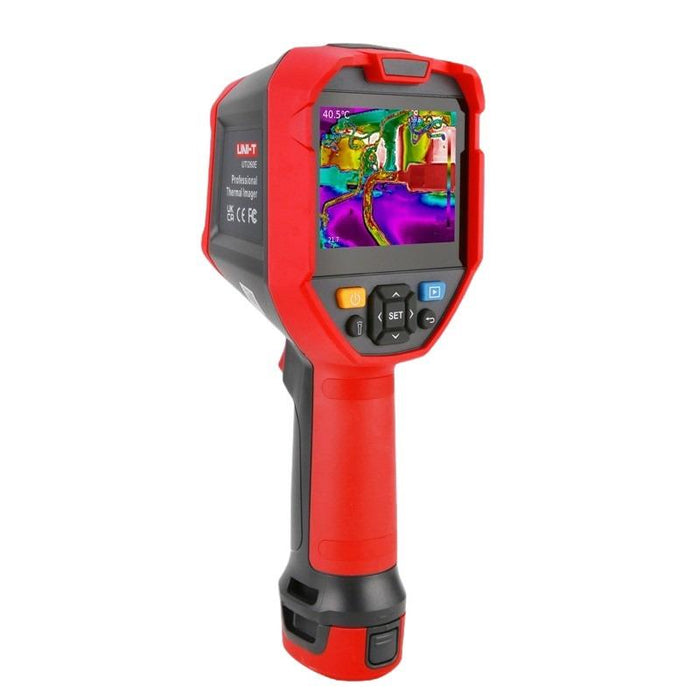

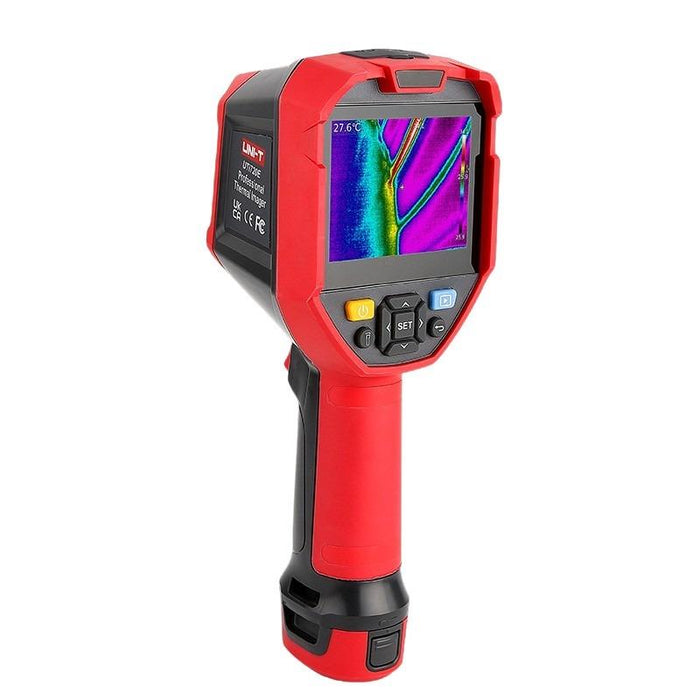

The UTi720E is an advanced thermal camera with Wi-Fi capability. Its large 3.5" IPS display screen can clearly display 256x192 thermal resolution 2MP visual camera, or a blended image of both. It can measure temperature from -20℃ to 550℃. The UTi720E's 5200mAh detachable battery pack is convenient for easy and quick battery change, allowing continuously work for long periods of time.

  • 3.5" IPS display screen (640x480 Pixels)
  • IR resolution: 256x192
  • Temperature measurement range: -20℃ to 550℃ / -4℉ to 1022℉
  • Auto alarm for high/low temperature
  • Auto tracking for hot spot/cold spot
  • On screen analyzer : 5 Points/1 Line/3 Rectangles/3 Circles
  • Image capture
  • Digital camera resolution: 2MP
  • Digital zoom: 2x, 4x
  • Image modes: Thermal, Visual image, Fusion,PIP
  • Colour palettes: 7 (White hot, Black hot, Red hot, Ironbow, HC Rainbow, Rainbow, Lava)
  • Isotherm (Auto/Ratio/Below/Above/Section/Manual)
  • LED flashlight
  • Wi-Fi connection through Mobile App
  • QR Code - photo management
  • PC software: analysis and real-time image projection
  • 5200mAh replaceable battery pack (Type-C rechargeable)

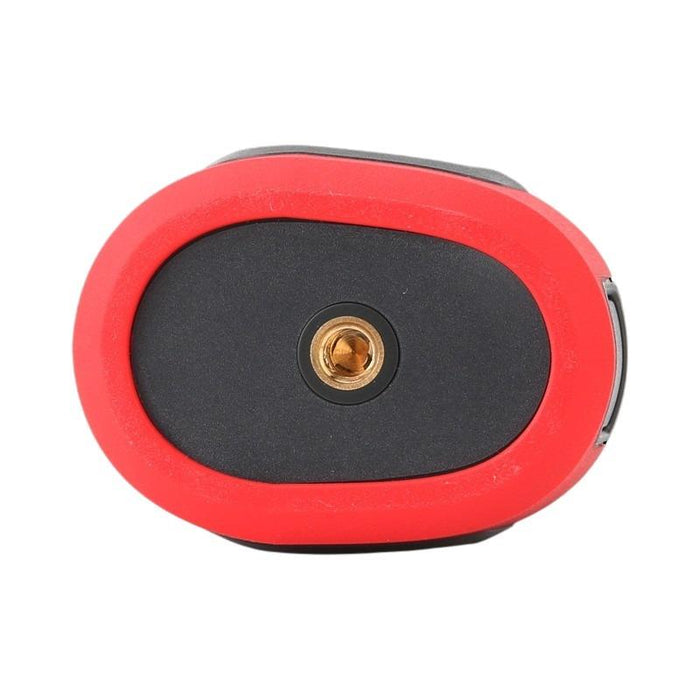

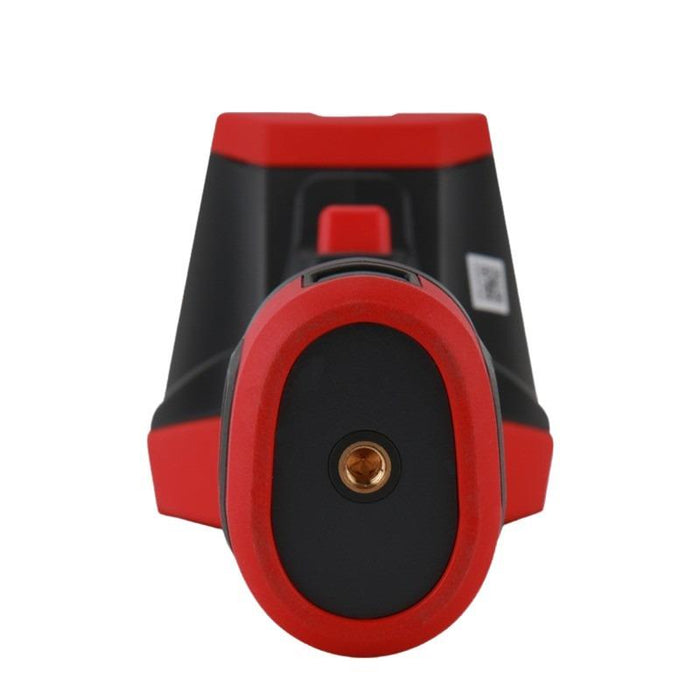

  • 1/4" tripod mounting hole
  • IP54
  • 2m drop proof
  • Specification
    Accuracy ±2℃ or ±2%
    Back order lead time 10 Days
    Battery Detachable Li-ion Battery
    Battery operation time ≥ 3 hours
    Colour palettes 7

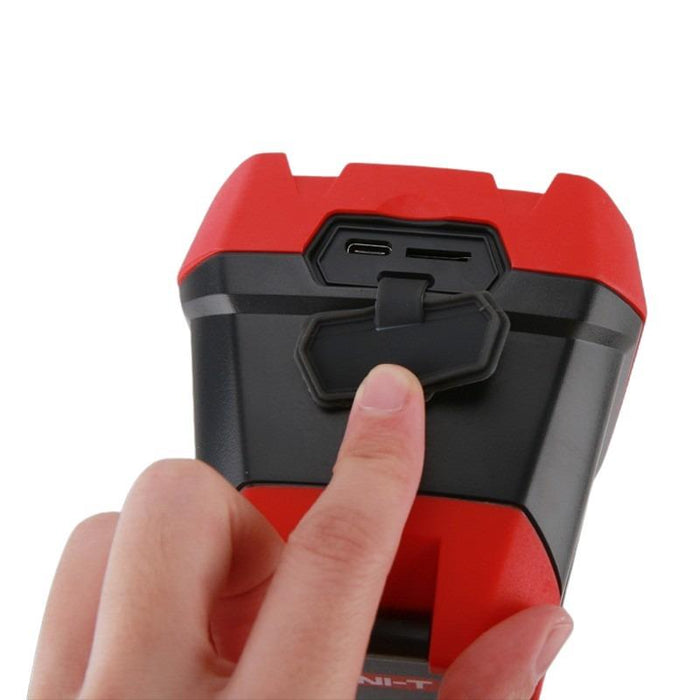

    Connectivity USB-C
    Digital camera resolution 2MP
    Display 3.3" IPS
    Field of view 56°×42°
    Focus Focus Free
    Frame rate ≤25Hz
    Image modes Thermal, Visual, Fusion, PIP
    Ip rating IP54
    Ir resolution 256x192
    On screen analyzer 5 Points, 1 Line, 3 Rectangles, 3 Circles
    Spatial resolution 3.8mrad
    Spectral range 8~14µm
    Temperature alarm Yes
    Temperature range -20℃ to 550℃
    Thermal sensitivity ≤50mK
    Wi-fi Yes
