UTi720A Heavy Duty Thermal Imaging Camera Uni-T

by Uni-T
SKU 488629

MPN: UTi720A(260A)

Availability:
Only 1 left!
Original price £294.41 - Original price £294.41
Original price
£294.41 Inc VAT
£294.41 - £294.41
Current price £294.41 Inc VAT

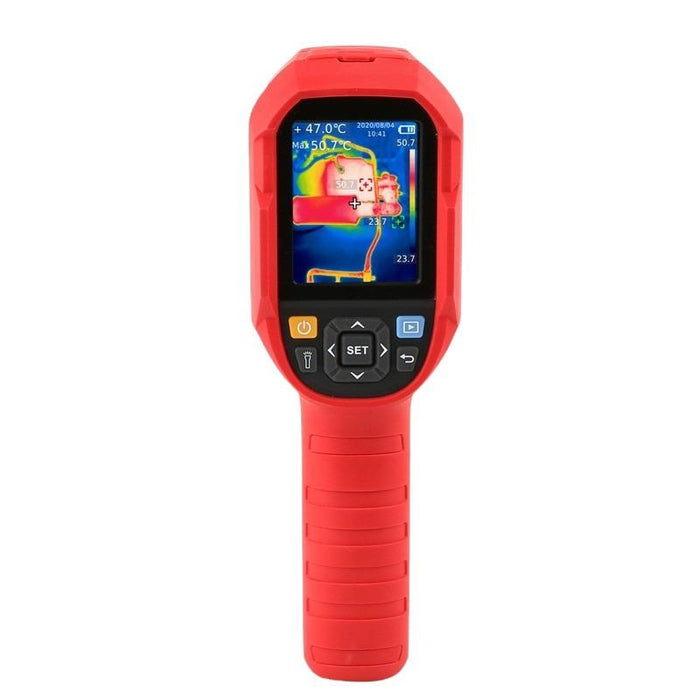

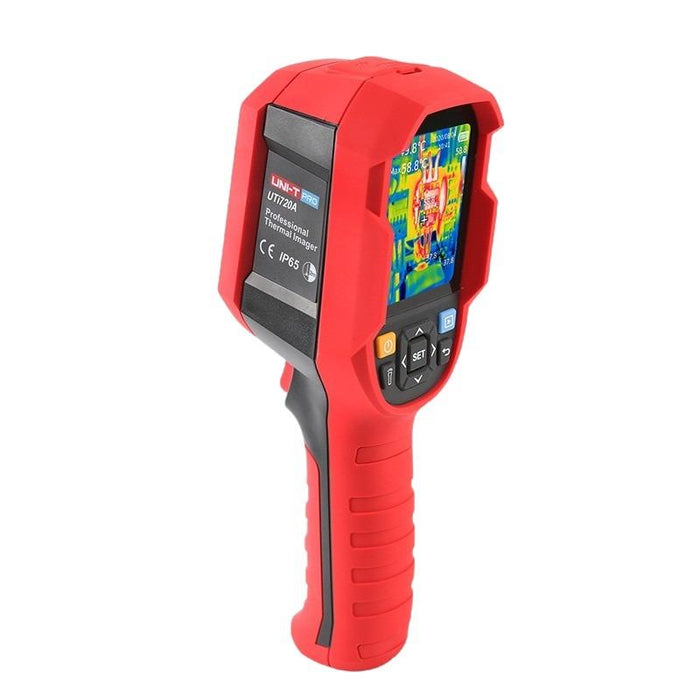

The UTi720A is a high quality thermal imager with 2.8" large display screen and high-definition IR resolution to notice thermal abnormalities easily. It is also equipped with a high brightness LED light and is certified to IP65, capable of withstanding a 2 meter drop.

  • Durable and user-friendly
  • 2.8" TFT display screen (320x240 Pixels)
  • IR resolution: 256x192
  • Temperature measurement range: -20℃ to 550℃ / -4℉ to 1022℉
  • Auto alarm for high/low temperature
  • Auto tracking for hot spot/cold spot
  • On screen analyzer: 3 Points
  • Image capture
  • Image modess: Thermal, Visual image, Fusion, PIP
  • Digital camera resolution: 640x480
  • Colour palettes: 7 (White hot, Black hot, Red hot Ironbow, Lava, Rainbow, Rainbow HC)
  • LED flashlight
  • PC software analysis and real-time image projection
  • Rechargeable Li-ion battery

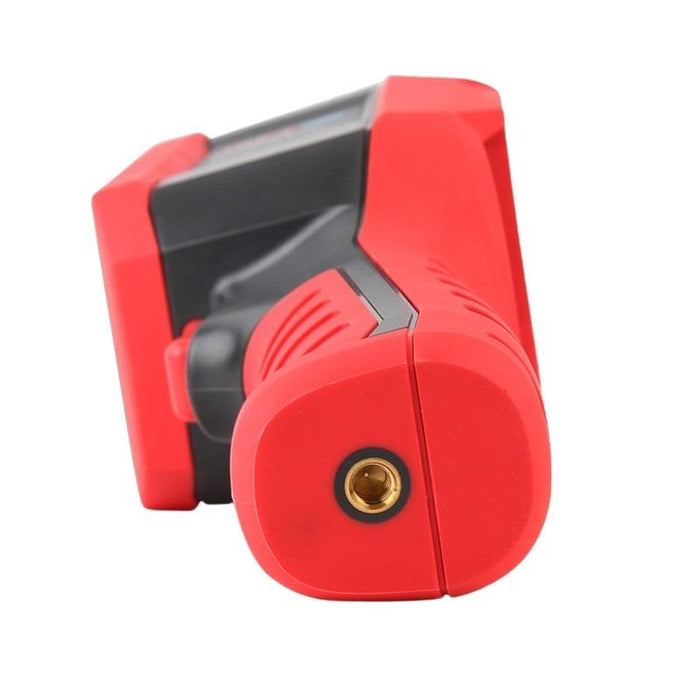

  • 1/4" Tripod Mounting Hole
  • IP65
  • 2m drop proof
  • Specification
    Accuracy ±2℃ or ±2%
    Back order lead time 10 Days
    Battery Fixed Li-ion Battery
    Battery operation time ≥ 7 hours
    Colour palettes 7
    Connectivity USB-C
    Display 2.8" TFT LCD
    Field of view 56°×42°
    Focus Focus Free
    Frame rate ≤25Hz
    Image modes Thermal
    Ip rating IP65
    Ir resolution 256x192
    On screen analyzer 3 Points
    Spatial resolution 3.8mrad
    Spectral range 8~14µm
    Temperature alarm Yes
    Temperature range -10℃ to 400℃
    Thermal sensitivity ≤50mK
