UTi640C Professional Thermal Imaging Camera Uni-T

by Uni-T
SKU 488635

MPN: UTi640C

Availability:
Out of stock
Sold out
Original price £27,571.20 - Original price £27,571.20
Original price
£27,571.20 Inc VAT
£27,571.20 - £27,571.20
Current price £27,571.20 Inc VAT

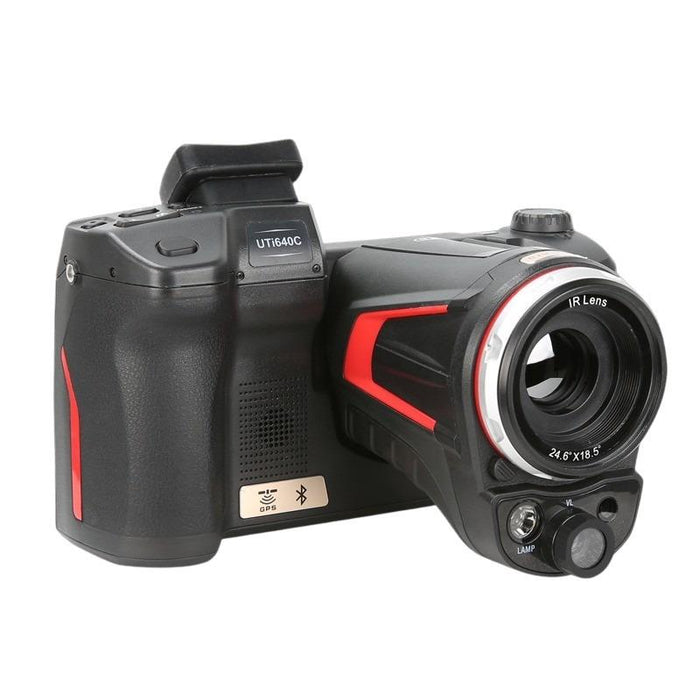

The UTi640 is the flagship model for the UNI-T brand. The UTi640C adopts infrared sensors with high sensitivity and resolution, which provides crystal clear infrared images along with higher temperature measurement range and accuracy. Other features include Android operating system, large display screen display, and rotating lens structure.
The UTi640C can also synchronously collect visible and infrared images, and display key observation positions by PIP and MIF methods. At the same time, through the open Android platform application, it can be extended to a multi-purpose mobile infrared thermal image application platform. Giving users more outstanding visual effects and convenient operation experience.

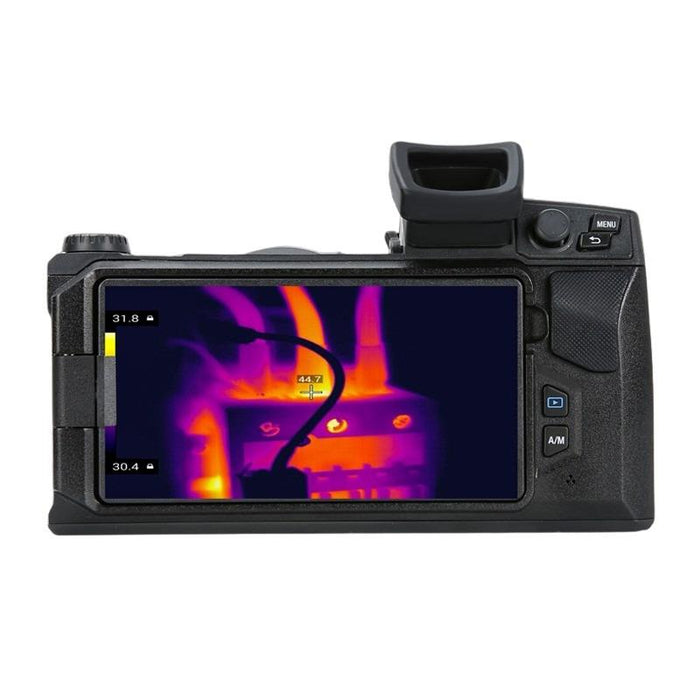

  • 5" touch display screen (1280x720 Pixels)

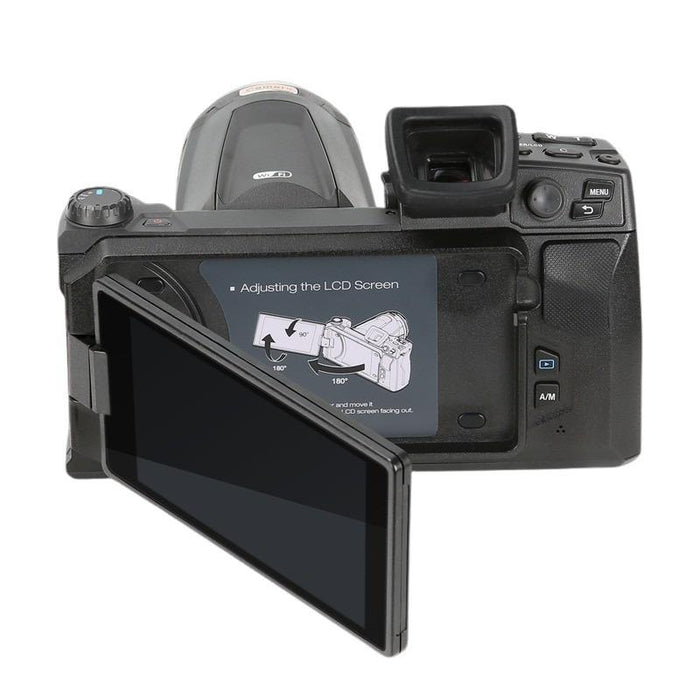

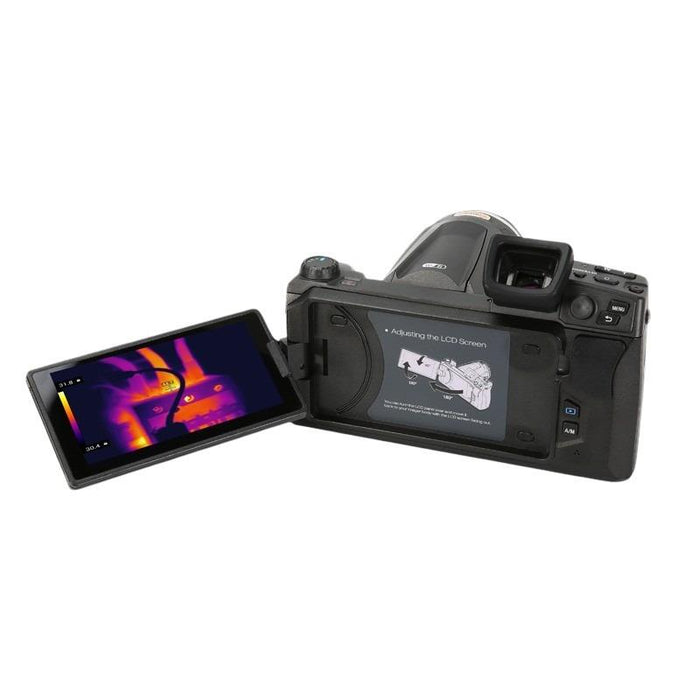

  • Flexible flip display screen
  • IR resolution: 640x480
  • Temperature measurement range: -40℃ to 800℃, external lens up to 2000℃ / -40℉ to 1472℉, external lens up to 3632℉
  • Interchangeable lens (Optional Telephoto lens / High Temp lens)
  • Electric/manual Focus

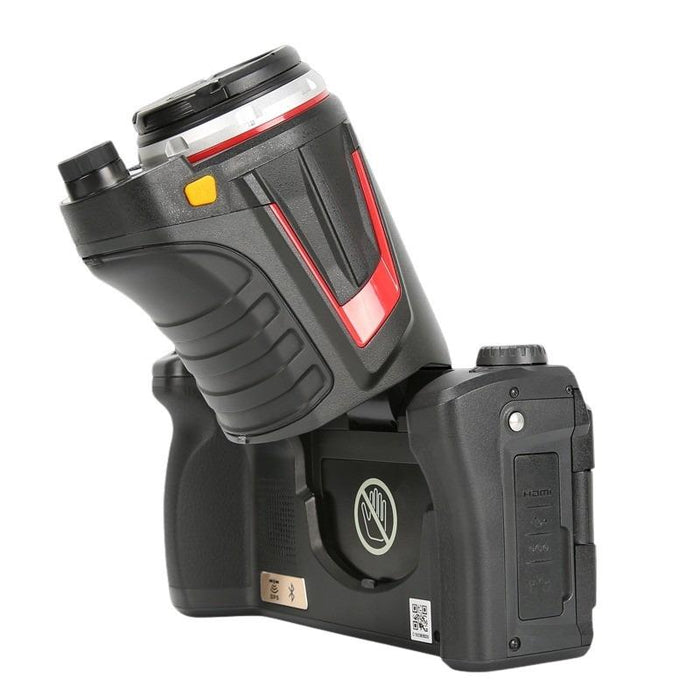

  • 70 degrees rotating optical lens part
  • 4" Viewfinder (1280*960 LCOS display screen)
  • Auto alarm for high/low temperature
  • Auto tracking for hot spot/cold spot
  • On display screen analyzer: Point 10/Line 5/Rectangle 5/Circle 5
  • Image capture
  • Video recording
  • Voice recording
  • Image modes: Thermal,Visual image,Fusion,PIP
  • Digital Zoom: 1.1~10x (continuous zoom)
  • Colour palettes: 10 (White hot, Lava, Ironbow, Hot iron, Medical, North pole, Rainbow1, Rainbow2, Black hot, Red)
  • Isotherm: 2(Above, Below)
  • LED flashlight
  • Laser pointer
  • GPS & Compass
  • Bluetooth connection
  • Wi-Fi connection through Mobile APP
  • PC software analysis and real-Time image projection
  • Replaceable battery pack
  • IP54
  • 1m drop proof
  • Specification
    Accuracy ±2℃ or ±2%
    Back order lead time 10 Days
    Battery Detachable Li-ion Battery
    Battery operation time ≥ 4 hours
    Colour palettes 10
    Connectivity HDMI, Micro USB
    Digital camera resolution 5MP
    Display 5" TFT LCD Touch
    Field of view 24.6°×18.5°
    Focus Automatic
    Frame rate ≤25Hz/9Hz
    Image modes Thermal, Visual, Fusion, PIP
    Ip rating IP54
    Ir resolution 640x480
    On screen analyzer 10 Points, 5 Lines, 5 Rectangles, 5 Circles
    Spatial resolution 0.67mrad
    Spectral range 7.5~14µm
    Temperature alarm Yes
    Temperature range -20℃ to 800℃
    Thermal sensitivity ≤30mK
    Wi-fi Yes
