UTi384G Professional Enhanced Thermal Imaging Camera Uni-T

by Uni-T
SKU 488638

MPN: UTi384G

Availability:
Out of stock
Sold out
Original price £2,381.89 - Original price £2,381.89
Original price
£2,381.89 Inc VAT
£2,381.89 - £2,381.89
Current price £2,381.89 Inc VAT

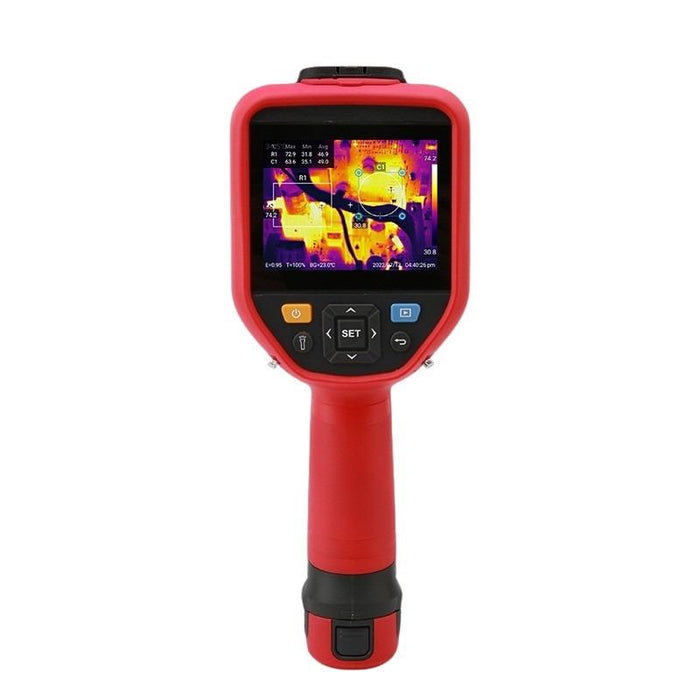

The UTi384G is a professional enhanced thermal camera that is specially designed for industrial use with high IR resolution 384x288 and wide temperature range: -20℃~550℃. The professional manual focus lens can flexibly adjust the focal length according to different objectives distance and provide high quality image. The 3.5" large IPS touch screen creates a more efficient and convenient operation experience for users. UTi384G also support various outstanding functions such as: Wi-Fi, voice recording, video recording, laser pointer, on screen analyzer, Isotherm, etc. They are perfect troubleshooting tools for many industrial applications.

  • 3.5" IPS touchscreen (640x480)
  • IR resolution: 384x288
  • Temperature measurement range: -20℃ to 550℃
  • On screen analyzer: 5 Points/5 Lines/5 Rectangles/5 Circles
  • Digital camera resolution: 5MP
  • Focus: Manual focus
  • Digital zoom: 2x, 4x
  • Wi-Fi and Bluetooth connection through Mobile App
  • PC software: analysis and real-time image projection
  • Video recording
  • Voice recording
  • Image modes: Thermal, Visual image, Fusion,PIP
  • Colour palettes: 7 (White hot, Black hot, Red hot, Ironbow, HC Rainbow, Rainbow, Lava)
  • Isotherm: 5 (Auto/Manual/Above/Below/Section)
  • 5200mAh replaceable battery pack (Type-C rechargeable)
  • IP54
  • 2m drop proof
  • Specification
    Accuracy ±2℃ or ±2%
    Back order lead time 10 Days
    Battery Detachable Li-ion Battery
    Battery operation time ≥ 5 hours
    Colour palettes 7
    Connectivity USB-C
    Digital camera resolution 5MP
    Display 3.5" Touch
    Field of view 42°×30°
    Focus Manual
    Frame rate ≤30Hz
    Image modes Thermal, Visual, Fusion, PIP
    Ip rating IP54
    Ir resolution 384x288
    On screen analyzer 5 Points, 5 Lines, 5 Rectangles, 5 Circles
    Spatial resolution 1.91mrad
    Spectral range 7.5~14µm
    Temperature alarm Yes
    Temperature range -20℃ to 550℃
    Thermal sensitivity ≤40mK
    Wi-fi Yes
