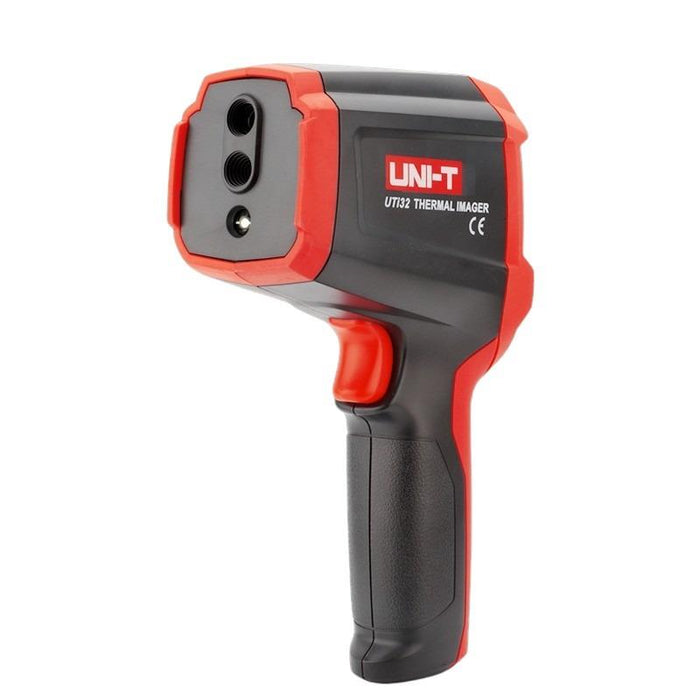

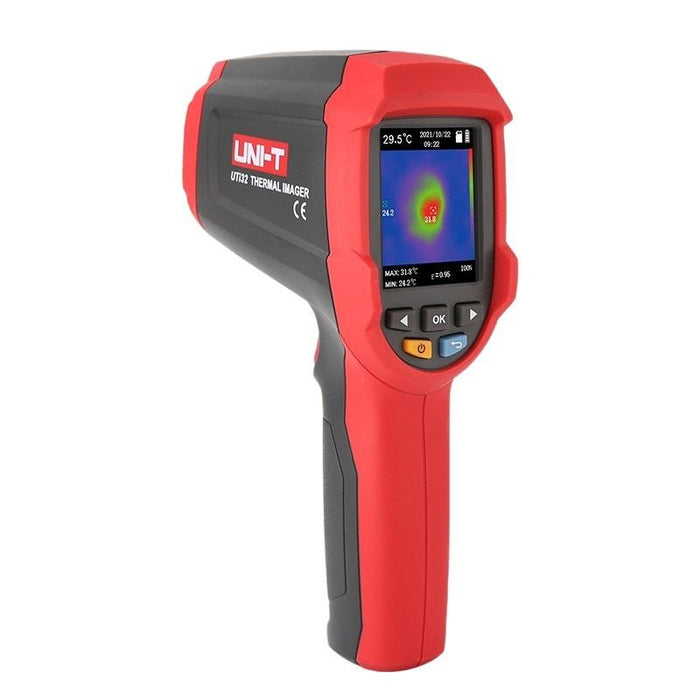

UTi32 High Temperature Thermal Imaging Camera Uni-T

by Uni-T
SKU 488622

MPN: UTi32

Availability:
Out of stock
Sold out
Original price £179.15 - Original price £179.15
Original price
£179.15 Inc VAT
£179.15 - £179.15
Current price £179.15 Inc VAT
The UTi32 is a high temperature thermal camera that specially designed for higher temperature applications including: iron forging, glassware & porcelain production, petrochemical, metallurgy, etc. It can quickly detect the temperature from -20℃ to 1000℃ with auto tracking and alarm for high/low spot. The UTi32 is a portable and lightweight thermal imager with 300K pixels digital camera and three image modes: thermal, visual image, fusion. It also supports PC software analysis, and more than 7 hours battery operation time. It is an affordable and reliable tool for high temperature inspection.

  • Temperature range: -20℃~1000℃ / -4℉ ~1832℉
  • IR resolution: 32x32
  • Display: 2.4" IPS (480*320)
  • Digital camera resolution: 640x480
  • Image modes: Thermal, visual image, fusion
  • Auto tracking and alarm for high/low spots
  • Support PC software analysis
  • Portable and lightweight
  • More than 7 hours battery operation time
  • With LED light
  • Specification
    Accuracy ±2℃ or ±2%
    Back order lead time 10 Days
    Battery Fixed Li-ion Battery
    Battery operation time ≥ 7 hours
    Colour palettes 3
    Connectivity USB-C
    Digital camera resolution 640x480
    Display 2.4" IPS
    Field of view 30°×30°
    Focus Focus free
    Frame rate ≤9Hz
    Image modes Thermal, Visual, Fusion
    Ir resolution 32x32
    Spectral range 8~14µm
    Temperature alarm Yes
    Temperature range -20℃ to 1000℃
    Thermal sensitivity 0.15℃
