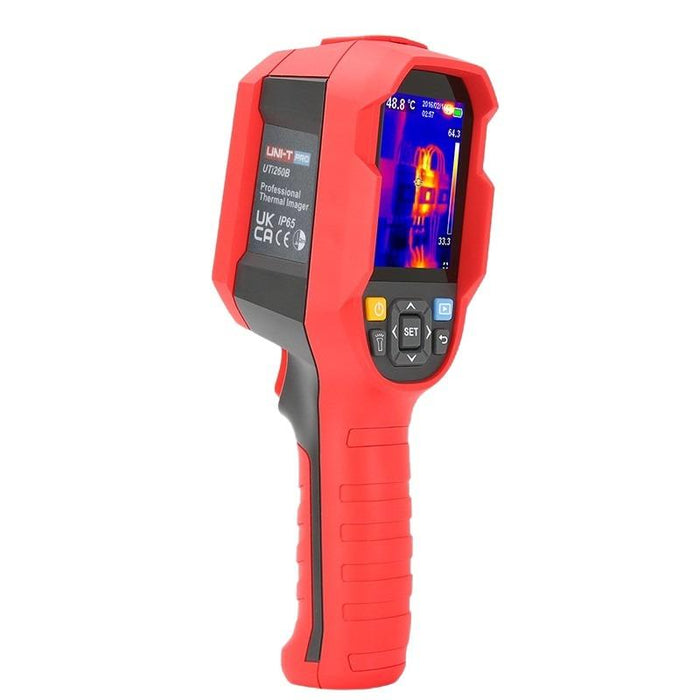

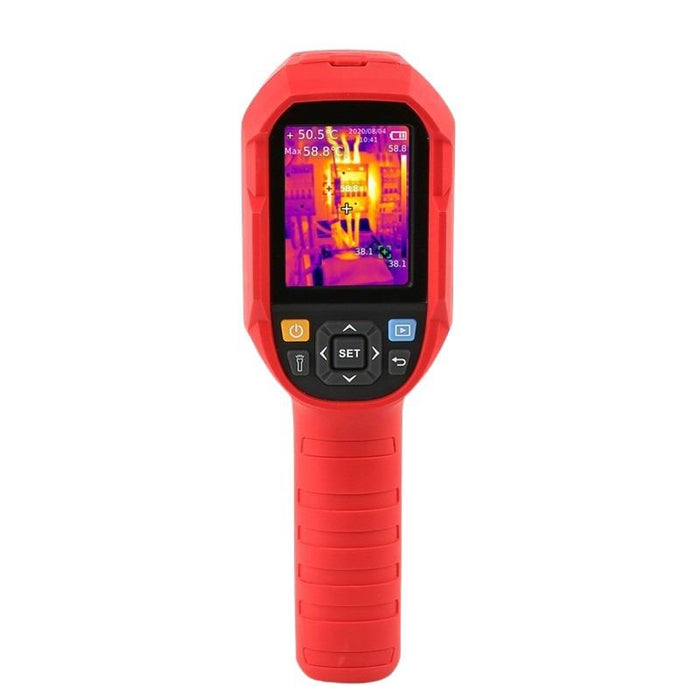

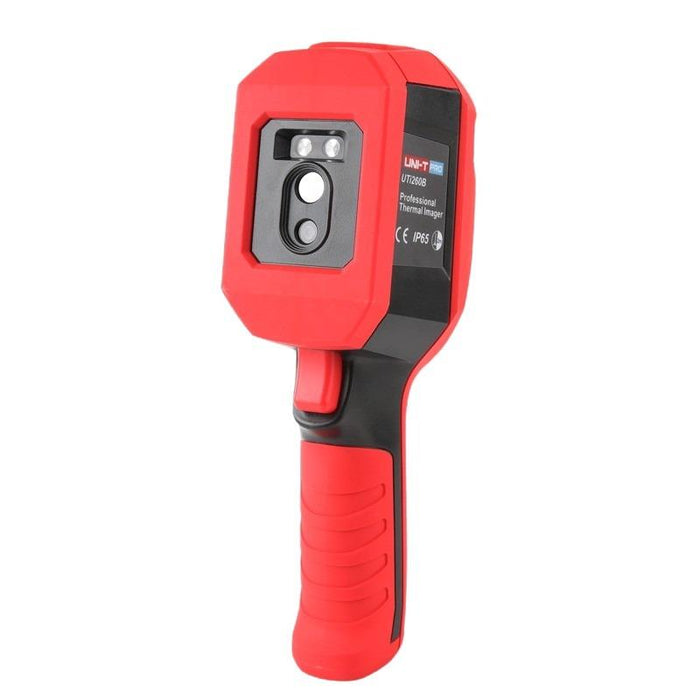

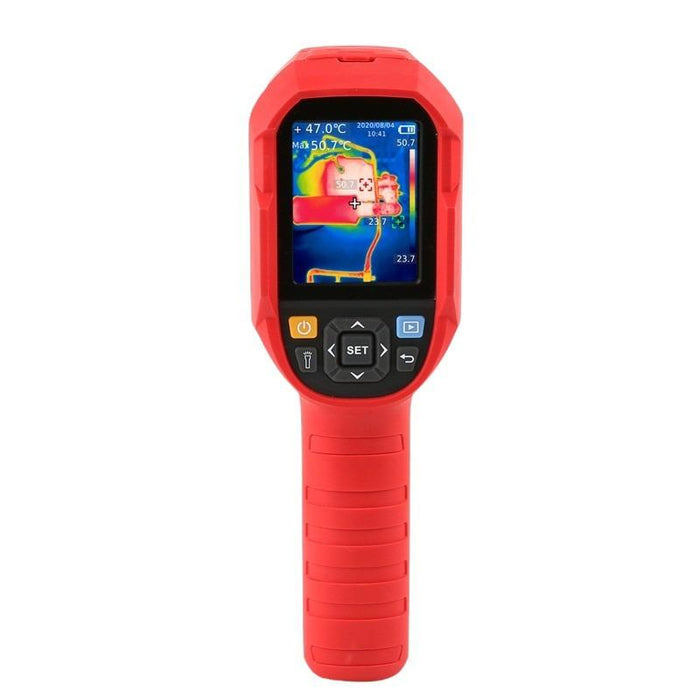

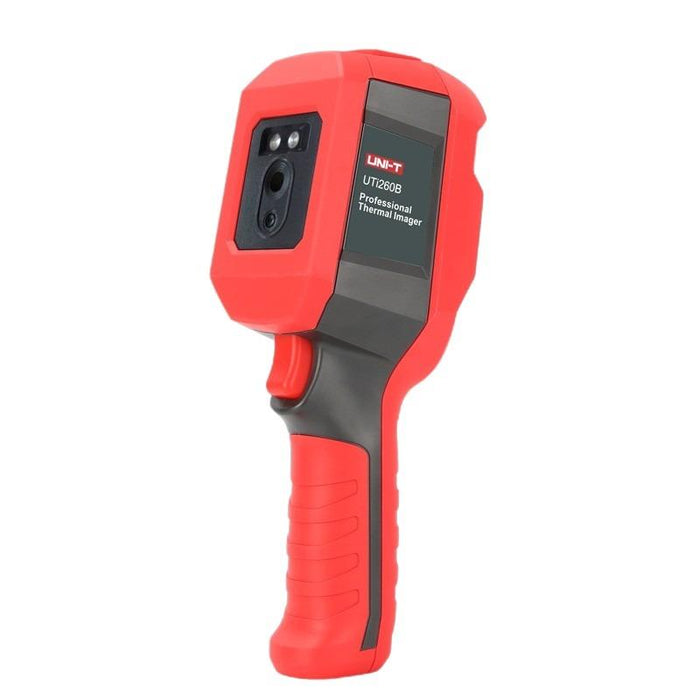

The UTi260B is a featured product of UNI-T heavy duty series thermal cameras. It is cost effective with a wide temperature range: -20℃~550℃. It has higher IR resolution: 256x192 pixels and includes 7 colour palettes and four display modes: thermal, visual image, fusion, picture in picture. It is also user friendly and rugged enough to pass IP65 and 2m drop test.
- Durable and user-friendly
- 2.8" TFT display screen (320x240 Pixels)
- IR resolution: 256x192
- Temperature measurement range: -20℃ to 550℃ / -4℉ to 1022℉
- Auto alarm for high/low temperature
- Auto tracking for hot spot/cold spot
- On screen analyzer: 3 Points
- Image capture
- Image modes: Thermal, Visual image, Fusion, PIP
- Digital camera resolution: 640x480
- Colour palettes: 7 (White hot, Black hot, Red hot Ironbow, Lava, Rainbow, Rainbow HC)
- LED flashlight
- PC software analysis and real-time image projection
- Rechargeable Li-ion battery

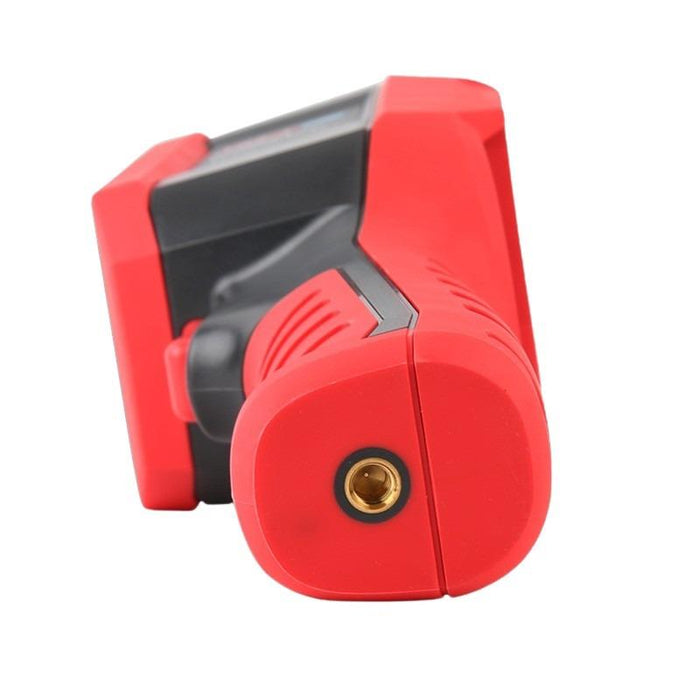

- 1/4" Tripod Mounting Hole
- IP65
- 2m drop proof
Specification
| Accuracy | ±2℃ or ±2% |
| Back order lead time | 10 Days |
| Battery | Fixed Li-ion Battery |
| Battery operation time | ≥ 6 hours |
| Colour palettes | 7 |
| Connectivity | USB-C |
| Digital camera resolution | 640x480 |
| Display | 2.8" TFT LCD |
| Field of view | 56°×42° |
| Focus | Focus Free |
| Frame rate | ≤25Hz |
| Image modes | Thermal, Visual, Fusion, PIP |
| Ip rating | IP65 |
| Ir resolution | 256x192 |
| On screen analyzer | 3 Points |
| Spatial resolution | 3.8mrad |
| Spectral range | 8~14µm |
| Temperature alarm | Yes |
| Temperature range | -20℃ to 550℃ |
| Thermal sensitivity | ≤60mK |
