UTi220B Heavy Duty Thermal Imaging Camera Uni-T

by Uni-T
SKU 488630

MPN: UTi220B

Availability:
Out of stock
Sold out
Original price £374.27 - Original price £374.27
Original price
£374.27 Inc VAT
£374.27 - £374.27
Current price £374.27 Inc VAT

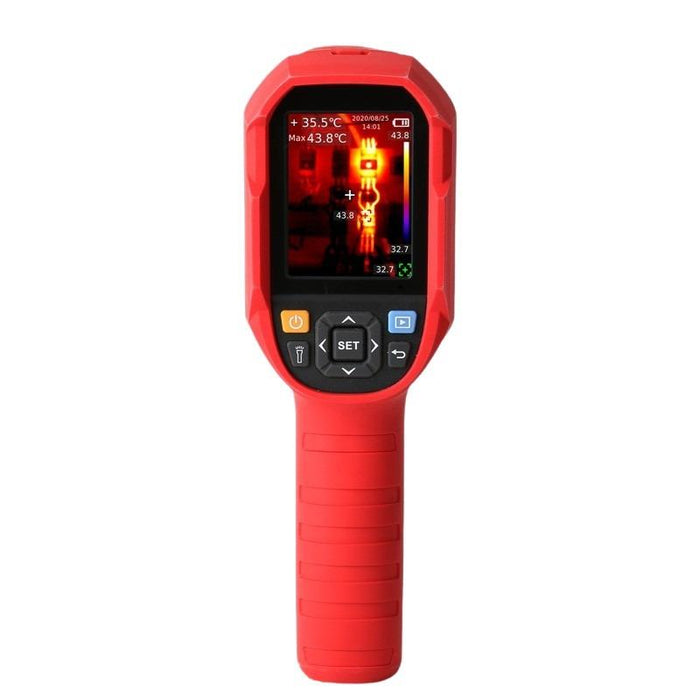

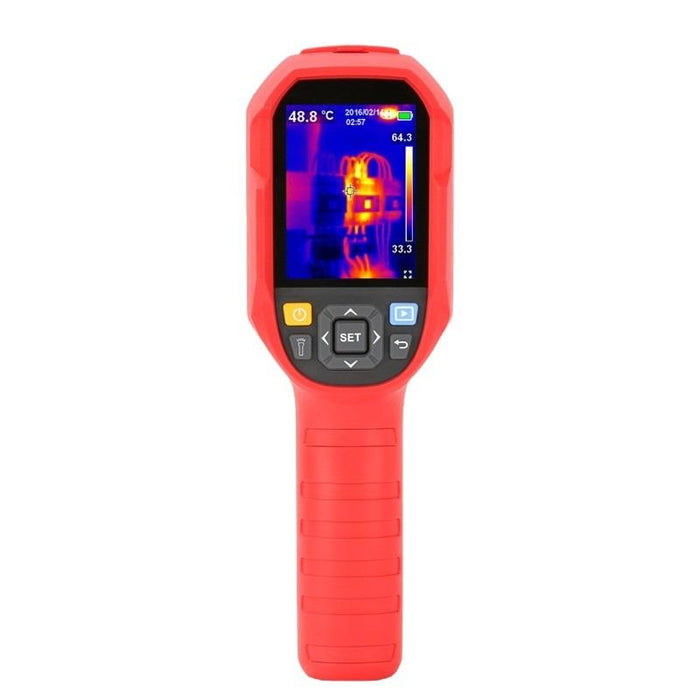

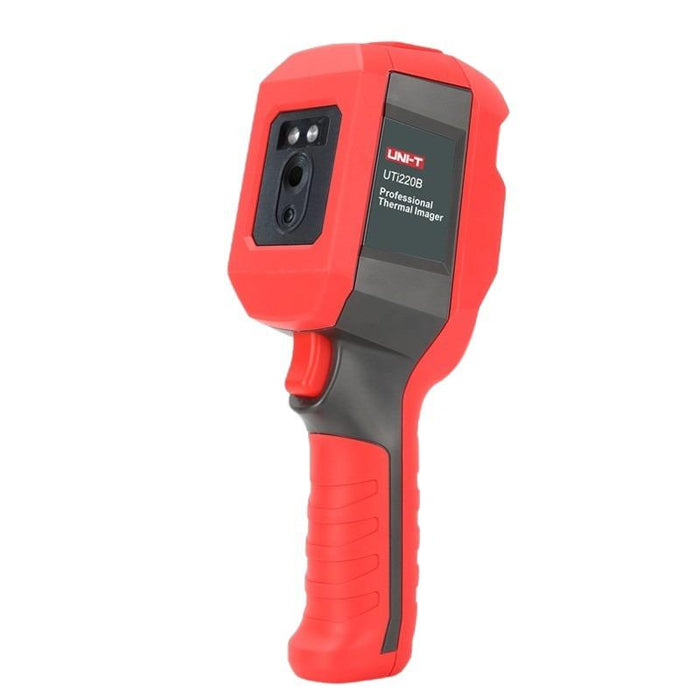

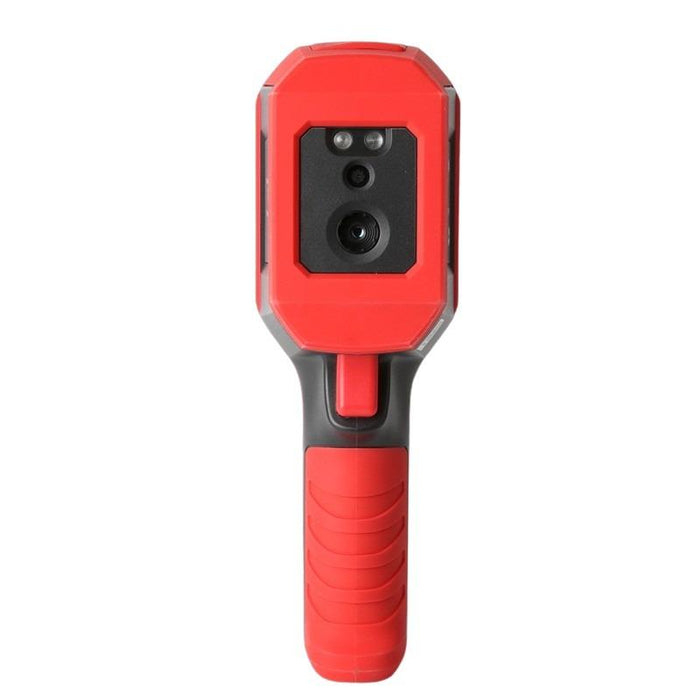

The UTi220B is a rugged and ergonomically designed thermal camera, powerful and user friendly with great performance. The imager features 200x150 pixels IR resolution and buzzer alarm which can automatically track and alarm the objective's temperature from -10℃~400℃. It is an affordable professional troubleshooting tool, widely used in many applications.

  • Durable and user-friendly
  • 2.8" TFT display screen (320x240 Pixels)
  • IR resolution: 200x150
  • Temperature measurement range: -10℃ to 400℃ / 14℉ to 752℉
  • Auto alarm for high/low temperature
  • Auto tracking for hot spot/cold spot
  • On screen analyzer : 3 Points
  • Image capture
  • Image modess: Thermal, Visual image, Fusion
  • Buzzer alarm
  • Colour palettes: 7 (Ironbow, White hot, Black hot, Tyrian, Amber, Cool, Rainbow)
  • LED flashlight
  • PC software analysis and real-time image projection
  • Rechargeable Li-ion battery

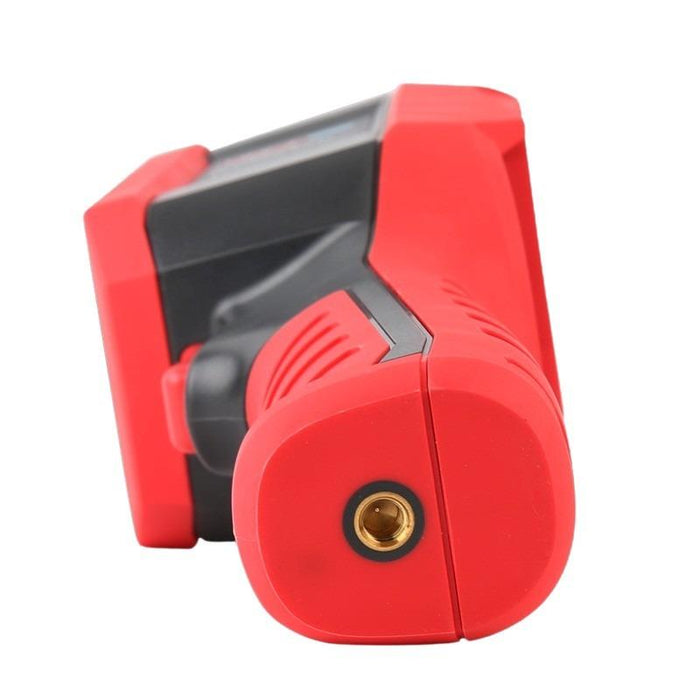

  • 1/4" tripod mounting hole
  • IP65
  • 2m drop proof
  • Specification
    Accuracy ±2℃ or ±2%
    Back order lead time 10 Days
    Battery Fixed Li-ion Battery
    Battery operation time ≥ 6 hours
    Colour palettes 7
    Connectivity USB-C
    Digital camera resolution 640x480
    Display 2.8" TFT LCD
    Field of view 35°×26°
    Focus Focus Free
    Frame rate ≤9Hz
    Image modes Thermal, Visual, Fusion
    Ip rating IP65
    Ir resolution 200x150
    On screen analyzer 3 Points
    Spatial resolution 3.1mrad
    Spectral range 8~14µm
    Temperature alarm Yes
    Temperature range -10℃ to 400℃
    Thermal sensitivity ≤100mK
    Request a quote
