UTi165A+ Heavy Duty Thermal Imaging Camera Uni-T

by Uni-T
SKU 488627

MPN: UTi165A+

Availability:
Out of stock
Sold out
Original price £374.27 - Original price £374.27
Original price
£374.27 Inc VAT
£374.27 - £374.27
Current price £374.27 Inc VAT

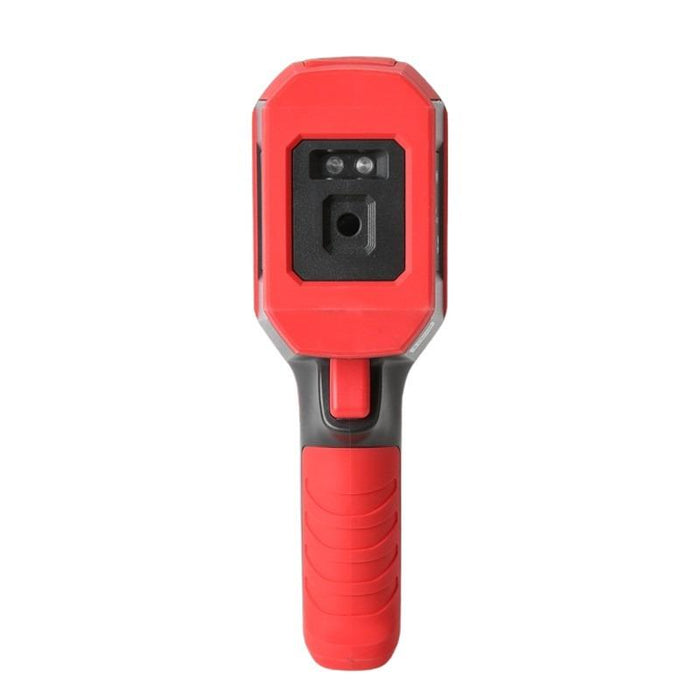

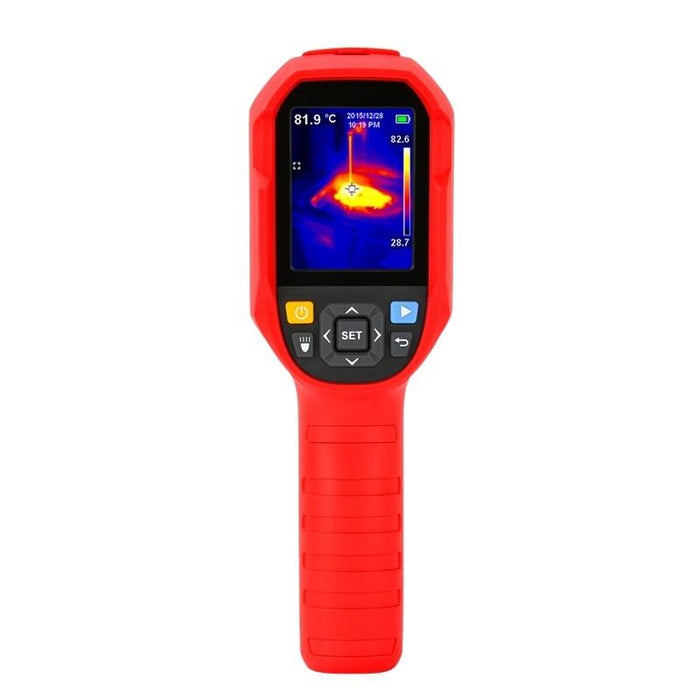

The UTi165A+ is a rugged yet ergonomically designed thermal camera and user friendly with great performance. With 160x120 pixels and IR resolution which can automatically track the objective's temperature from -10℃ to 400℃. It is an affordable professional troubleshooting tool, widely used in many applications.

  • Durable and user-friendly
  • 8" TFT display screen (320x240 Pixels)
  • IR resolution: 160x120
  • Digital camera resolution: 640x480
  • Temperature measurement range: -10℃ to 400℃ / 14℉ to 752℉
  • Auto alarm for high/low temperature
  • Auto tracking for hot spot/cold spot
  • Image capture
  • Colour palettes: 5 (White hot, Red hot, Ice blue, Rainbow, Ironbow)
  • LED flashlight
  • PC software analysis
  • Rechargeable Li-ion battery
  • 1/4" tripod mounting hole
  • IP65
  • 2m drop proof
  • Specification
    Accuracy ±2℃ or ±2%
    Back order lead time 10 Days
    Battery Fixed Li-ion Battery
    Battery operation time ≥ 7 hours
    Colour palettes 7
    Connectivity USB-C
    Display 2.8" TFT Display
    Field of view 56°×42°
    Focus Focus free
    Frame rate ≤9Hz
    Image modes Thermal, Visual, Fusion
    Ip rating IP65
    Ir resolution 160x120
    On screen analyzer 3 Points
    Spatial resolution 6.1mrad
    Spectral range 8~14µm
    Temperature alarm Yes
    Temperature range -10℃ to 400℃
    Thermal sensitivity ≤50mK
