UTi120T Wi-Fi Pocket Size Thermal Imaging Camera Uni-T

by Uni-T
SKU 488621

MPN: UTi120T

Availability:
Out of stock
Sold out
Original price £436.91 - Original price £436.91
Original price
£436.91 Inc VAT
£436.91 - £436.91
Current price £436.91 Inc VAT

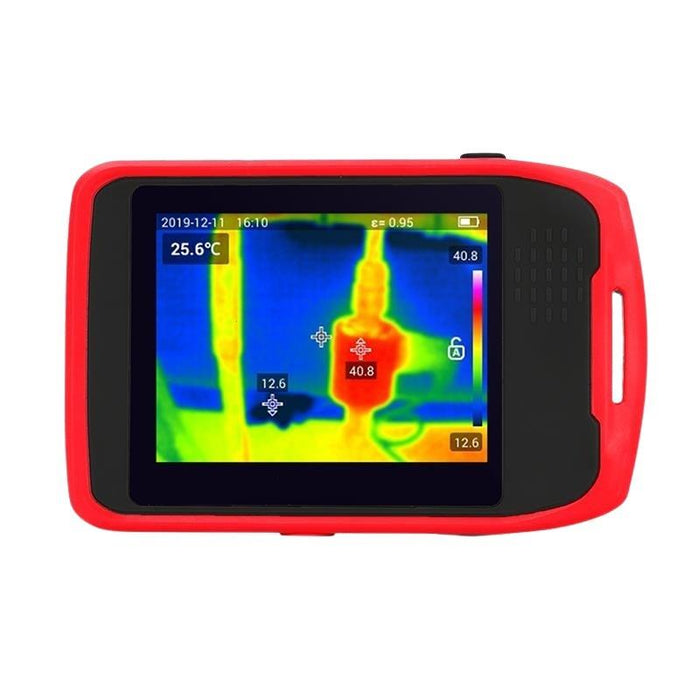

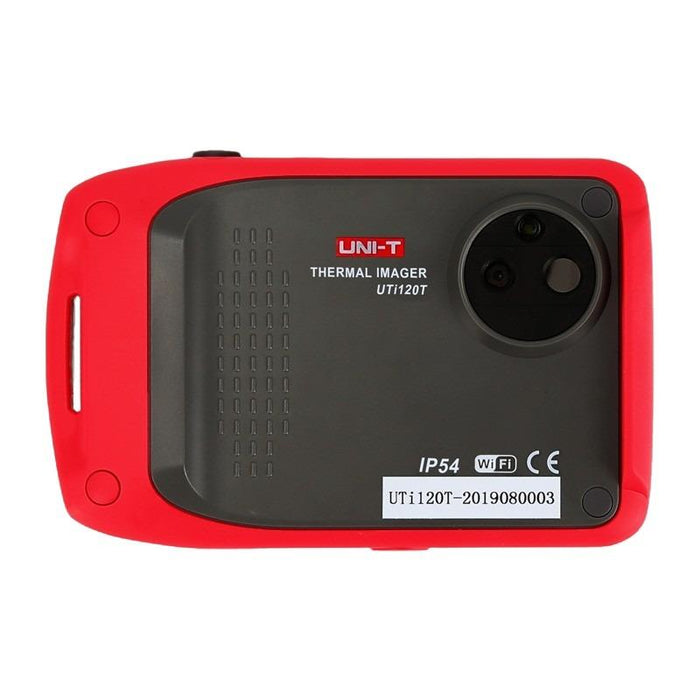

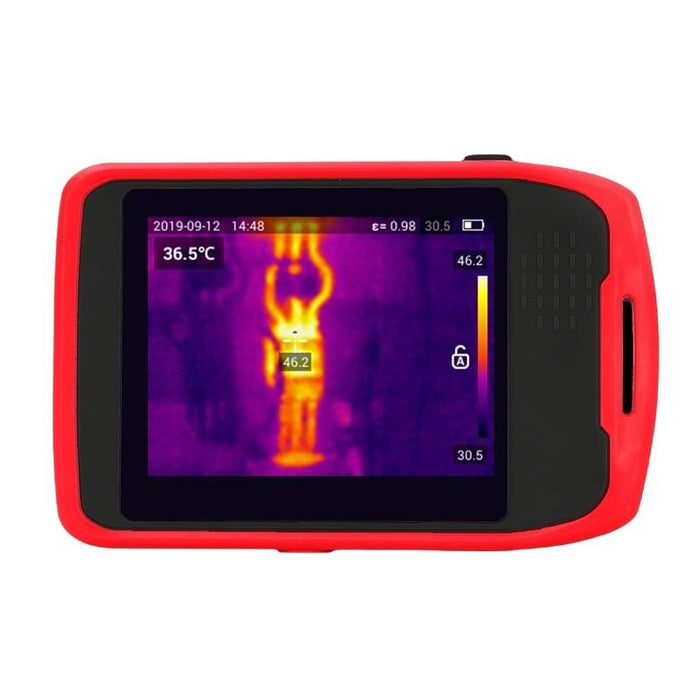

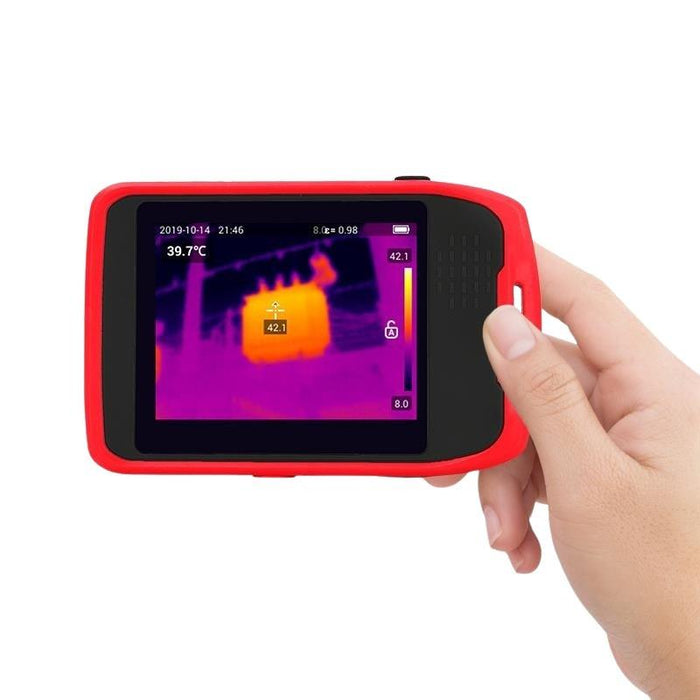

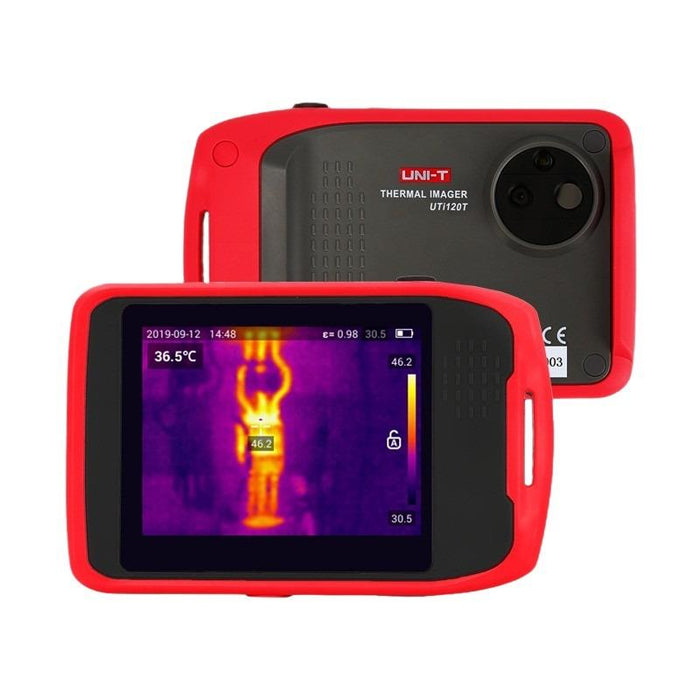

The UTi120T is a pocket-sized and compact thermal camera, it can be easily put into pocket and is very portable for users. Its 3.5" large LCD touchable display screen is convenient for users to operate easily. It can automatically track the objects temperature from -20℃ to 400℃. It also supports Wi-Fi connection through UNI-T Mobile App. With the UTi120T thermal camera users will be ready anytime to diagnose electrical, mechanical, building problems and other potential issues.

  • Compact and portable
  • 5" TFT touch screen (320x240 Pixels)
  • IR resolution: 120x90
  • Temperature measurement range: -20℃ to 400℃ / -4℉ to 752℉
  • On screen analyzer: 1 Point /1 Rectangle
  • Auto alarm for high/low temperature
  • Auto tracking for hot spot/cold spot
  • Image capture
  • Image modes: Thermal, Fusion, Visual Image,PIP
  • Digital camera resolution: 640x480

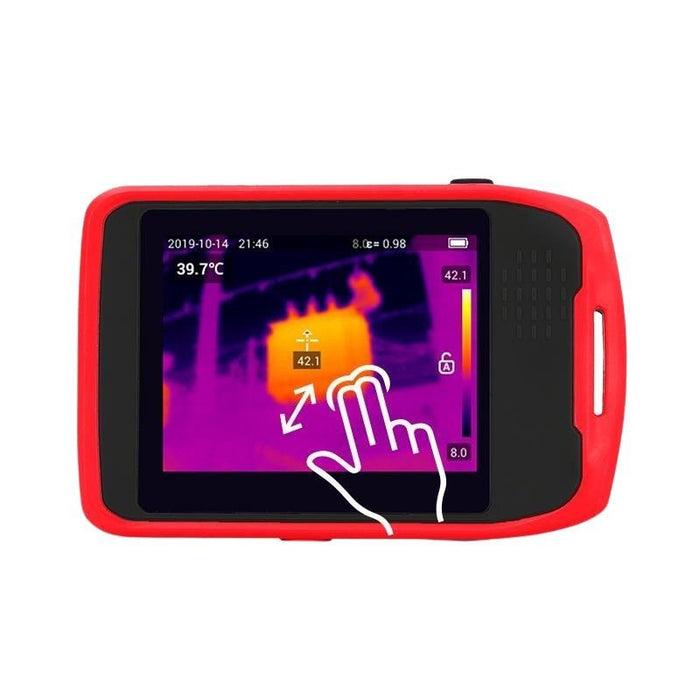

  • Digital zoom: 1.0~8x (Continuous Zoom)
  • Colour palettes: 6(White hot, Black hot, Ironbow, Hot iron, Arctic,Medical)
  • LED flashlight
  • PC Software analysis
  • Wi-Fi connection through Mobile APP
  • USB rechargeable Li-ion battery
  • 1/4" tripod mounting hole
  • IP54
  • 1m drop proof
  • Specification
    Accuracy ±2℃ or ±2%
    Back order lead time 10 Days
    Battery Fixed Li-ion Battery
    Battery operation time ≥ 2 hours
    Colour palettes 6

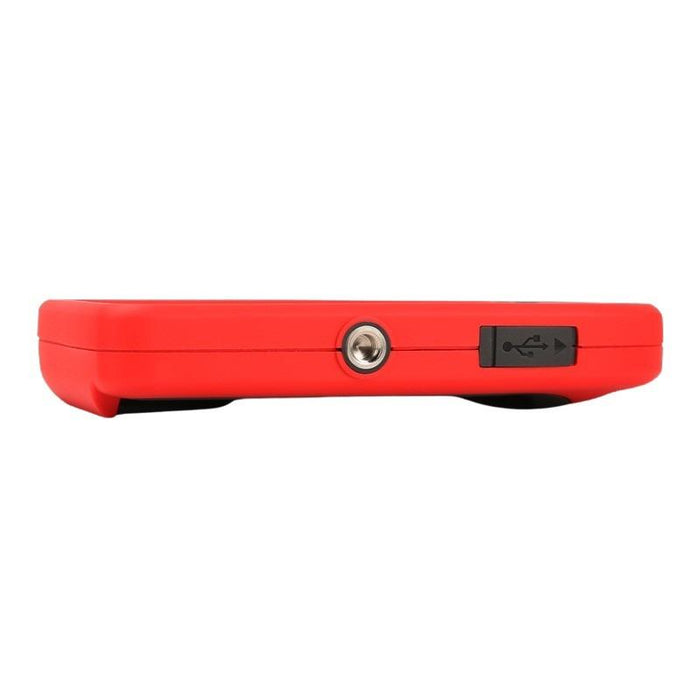

    Connectivity USB-C
    Display 3.5" TFT Touch
    Field of view 50°×38°
    Focus Focus free
    Frame rate ≤25Hz
    Image modes Thermal, Visual, Fusion, PIP
    Ip rating IP54
    Ir resolution 120x90
    On screen analyzer 1 Point, 1 Rectangle
    Spatial resolution 7.6mrad
    Spectral range 7.5~14µm
    Temperature alarm Yes
    Temperature range -20℃ to 400℃
    Thermal sensitivity ≤60mK
    Wi-fi Yes
