UTi120MS iPhone Thermal Imaging Smartphone Camera Module Uni-T

by Uni-T
SKU 488616

MPN: UTi120MS

Availability:
Out of stock
Sold out
Original price £175.08 - Original price £175.08
Original price
£175.08 Inc VAT
£175.08 - £175.08
Current price £175.08 Inc VAT

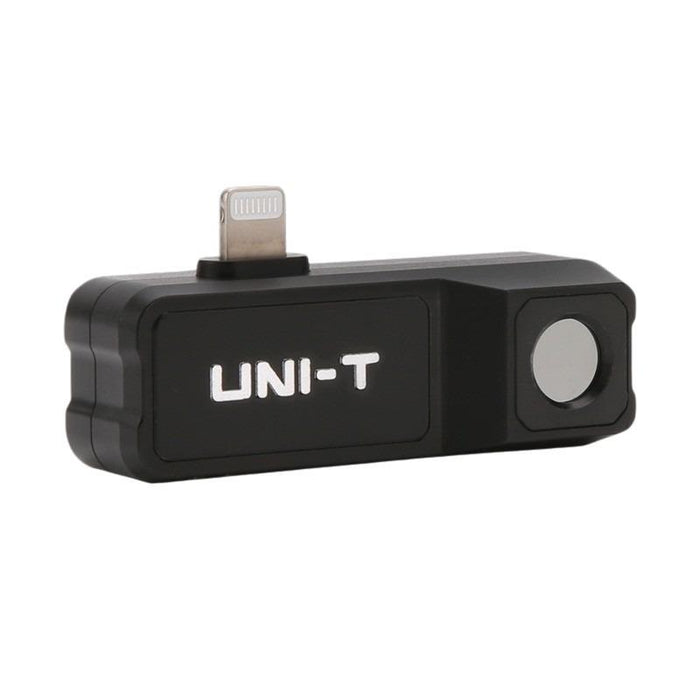

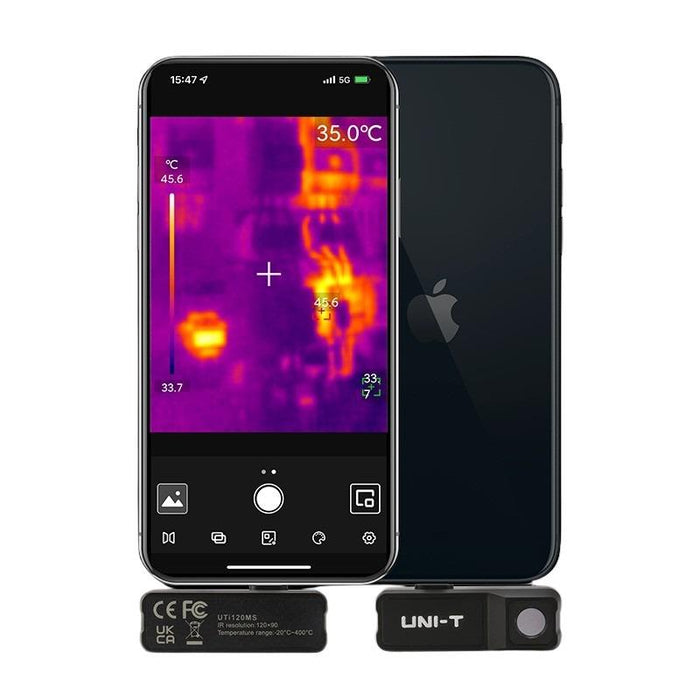

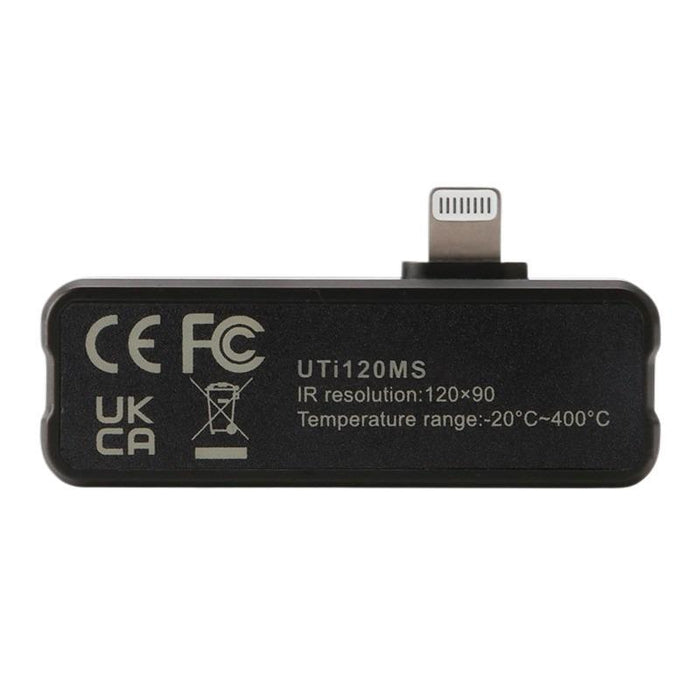

UTi120MS is a professional smartphone thermal camera module for iPhones with a lightning port. The module is compact, portable, and easy to operate through connecting with mobile phones. UTi120M provides a clear image with a fast response, and can also detect temperature up to 400℃. Users can troubleshoot HVAC problems or investigate heat source issues around the house faster and easier with this thermal camera module. It is a perfect tool for DIY homeowners, outdoor lovers, engineers, contractors and builders etc.

  • IR resolution: 120x90
  • Temperature measurement range: -20℃ to 400℃ / -4℉ to 752℉
  • Auto alarm for high/low temperature
  • Auto tracking for hot spot/cold spot
  • On display screen analyzer: 6 Points/6 Lines /6 Rectangles/6 Circles
  • Image capture
  • Video recording
  • Colour palettes: 7 (White hot, Black hot, Red hot Ironbow, Lava, Rainbow, Rainbow HC)
  • Phone: iPhone (lightning interface)
  • 1m extension cable
  • 1m drop proof
  • Specification
    Accuracy ±2℃ or ±2%
    Back order lead time 10 Days
    Colour palettes 7
    Connectivity USB-C
    Field of view 50°×38°
    Focus Focus free
    Frame rate ≤25Hz
    Image modes Thermal, Fusion, PIP
    Ir resolution 120x90
    On screen analyzer 6 Points, 6 Lines, 6 Rectangles, 6 Circles
    Spatial resolution 7.3mrad
    Spectral range 8~14µm
    Temperature alarm Yes
    Temperature range -20℃ to 400℃
    Thermal sensitivity ≤60mK @ 25℃
