UTi120B Professional Thermal Imaging Camera Uni-T

by Uni-T
SKU 488624

MPN: UTi120B

Availability:
Only 1 left!
Original price £307.81 - Original price £307.81
Original price
£307.81 Inc VAT
£307.81 - £307.81
Current price £307.81 Inc VAT

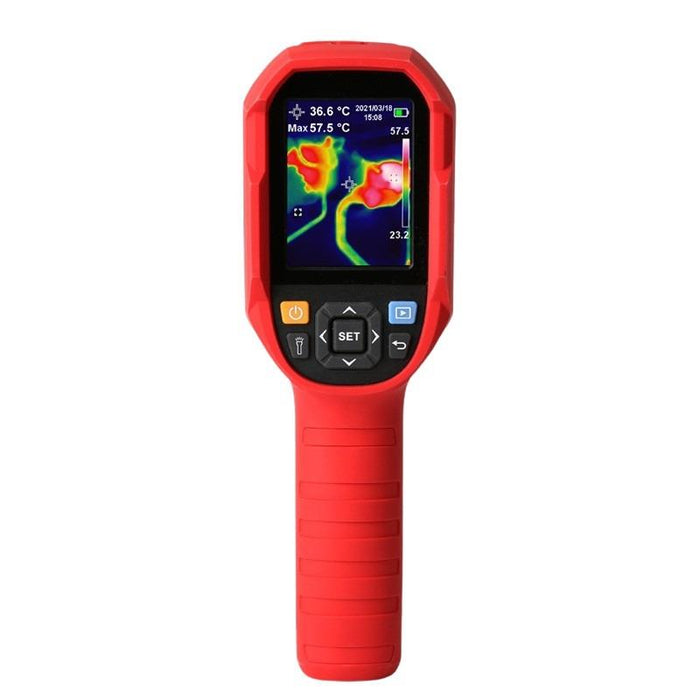

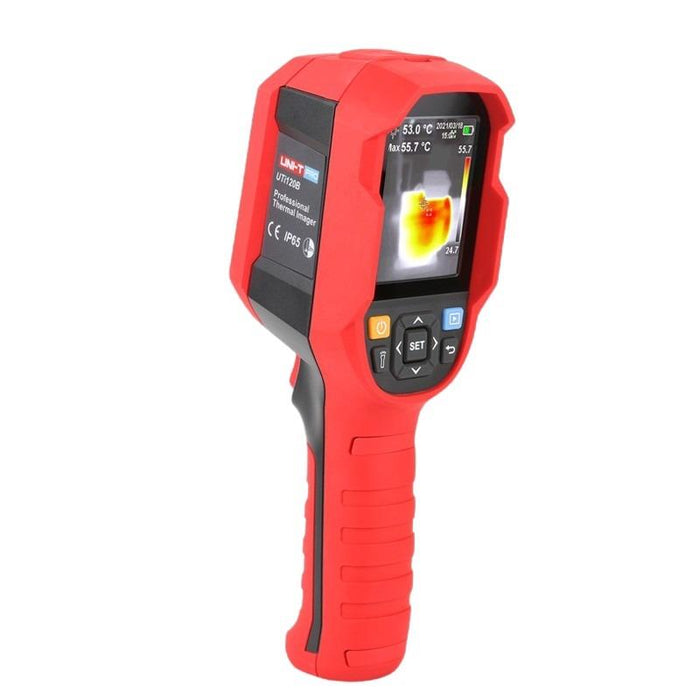

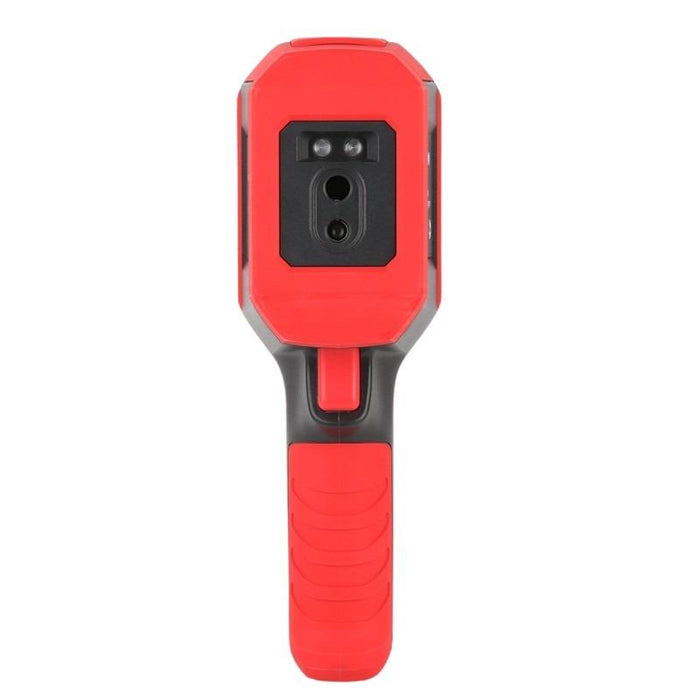

The UTi120B is a rugged and ergonomically designed thermal imaging camera. It is powerful and user friendly with great performance with an attractive price. The camera features 120x90 pixels, IR resolution which can automatically track the objects temperature from -20℃~400℃. It is an affordable professional troubleshooting tool, widely used in many applications.

  • Durable and user-friendly
  • 2.8" TFT display screen (320x240 Pixels)
  • IR resolution: 120x90
  • Temperature measurement range: 20℃ to 400℃ / -4℉ to 752℉
  • Auto alarm for high/low temperature
  • Auto tracking for hot spot/cold spot
  • Image capture
  • Image modes, Thermal, Visual image, Fusion
  • Buzzer alarm
  • Colour palettes: 5 (White hot, Black hot, Red hot, Ironbow, Rainbow)
  • LED flashlight
  • PC software analysis
  • Rechargeable Li-ion battery

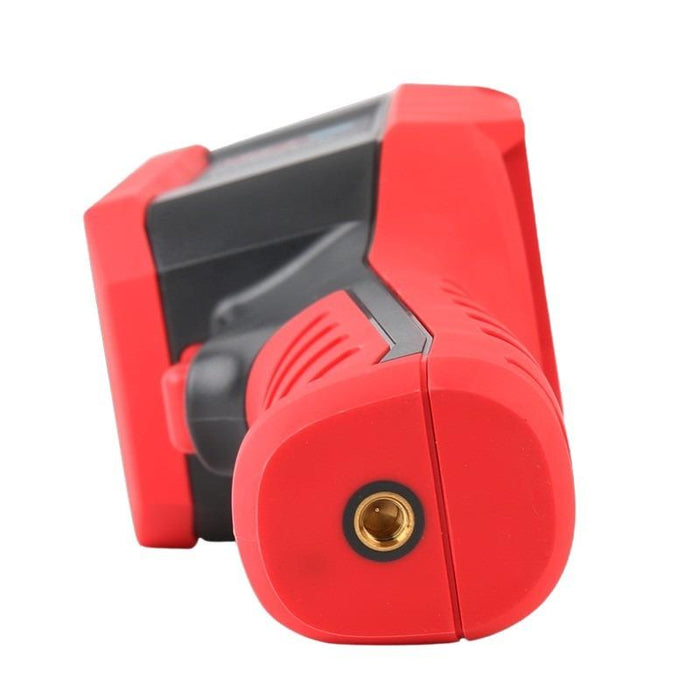

  • 1/4" tripod mounting hole
  • IP65
  • 2m drop proof
  • Specification
    Accuracy ±2℃ or ±2%
    Back order lead time 10 Days
    Battery Fixed Li-ion Battery
    Battery operation time ≥ 6 hours
    Colour palettes 5
    Connectivity USB-C
    Digital camera resolution 640x480
    Display 2.8" TFT Display
    Field of view 50°×38°
    Focus Focus free
    Frame rate ≤25Hz
    Image modes Thermal, Visual, Fusion
    Ir resolution 120x90
    Spatial resolution 7.3mrad
    Spectral range 8~14µm
    Temperature alarm Yes
    Temperature range -20℃ to 400℃
    Thermal sensitivity ≤60mK
