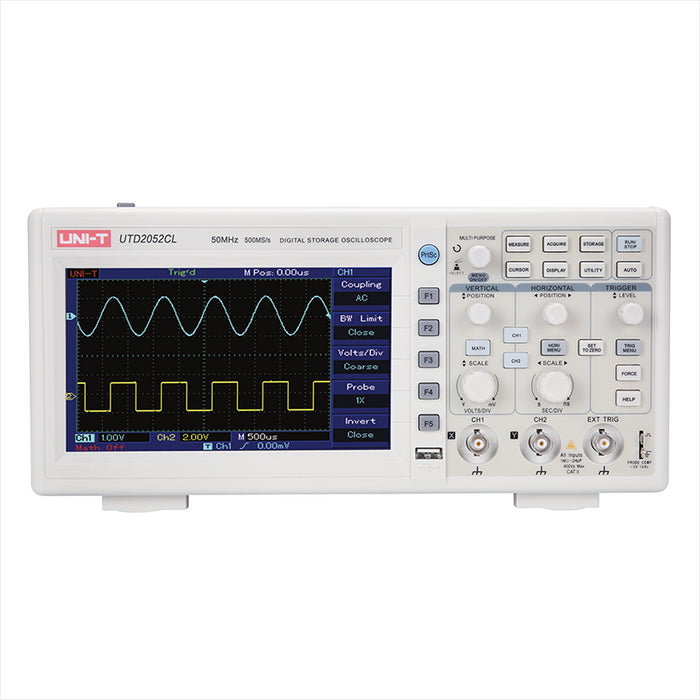

UTD2052CL Digital Storage Oscilloscope 50MHz Uni-T

by Uni-T
SKU 482661

MPN: UTD2052CL

Availability:
Out of stock
Sold out
Original price £248.95 - Original price £248.95
Original price
£248.95 Inc VAT
£248.95 - £248.95
Current price £248.95 Inc VAT
The UTD2052CL is an economical bench type digital storage oscilloscope. The simple and clear front panel design provides easy operation for the user and is suitable for applications including serial data analysis, data storage device testing, electric vehicle and electronics equipment design, evaluating frequency response of sound equipment, troubleshooting automotive engines, electronics technician repair and maintenance etc.

  • 50MHz bandwidth
  • 500MS/S real-time sampling rate
  • Low noise, wide vertical range: 1mV/div〜20V/div
  • System software upgradable with USB drive
  • Auto measurements of 28 waveform parameters
  • More than 2,000wfms/s waveform capture rate
  • 7-inch TFT LCD, WVGA (400 x 240)
  • Dimensions: 306mm x 147mm x 122mm

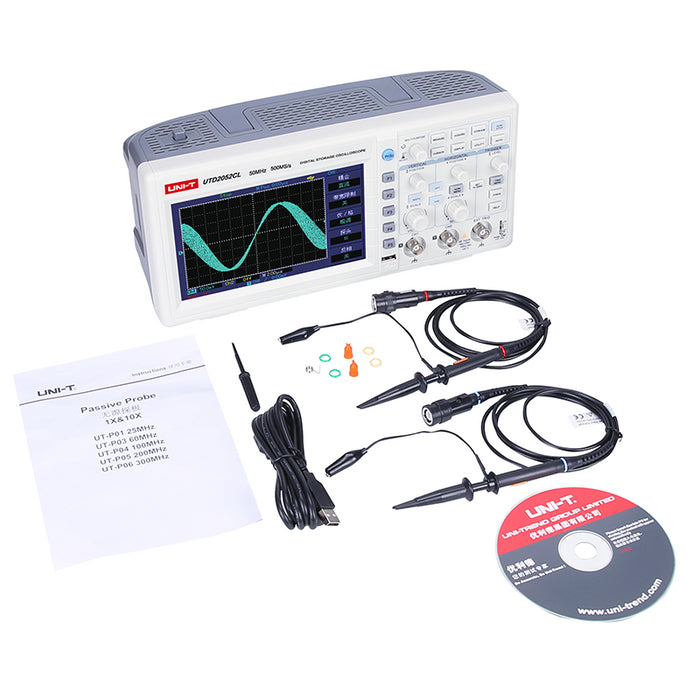

  • Accessories included: probe x 2 (1x, 10x switchable), power cord, USB interface cable
  • Specification
    Accuracy ±3V
    Back order lead time 120 Days
    Bandwidth 50MHz
    Channels 2 Analogue
    Digitalanalogue Digital
    Display 7 Inch TFT LCD
    Frequency counter 6 Bits
    Holdoff range 80ns to 1.5s
    Interfaces USB-OTG
    Memory depth 25kpts
    Rise time <7ns
    Sampling rate 500MSa/s
    Storage methods Setup, waveform, bitmap
    Time base range 5ns/div to 50s/div
    Trigger types Edge, pulse width, alternate
    Vertical range 1mV/div to 20V/div
    Waveform capture rate 2000 wfms/s
