UTD2052CL+ Digital Storage 2 Channel Analog Oscilloscope 50MHz Uni-T
by Uni-T
SKU 488958
MPN: UTD2052CL+
Availability:
Only 2 left!
Original price
£211.72
-
Original price
£211.72
Original price
£211.72
Inc VAT
£211.72
-
£211.72
Current price
£211.72
Inc VAT

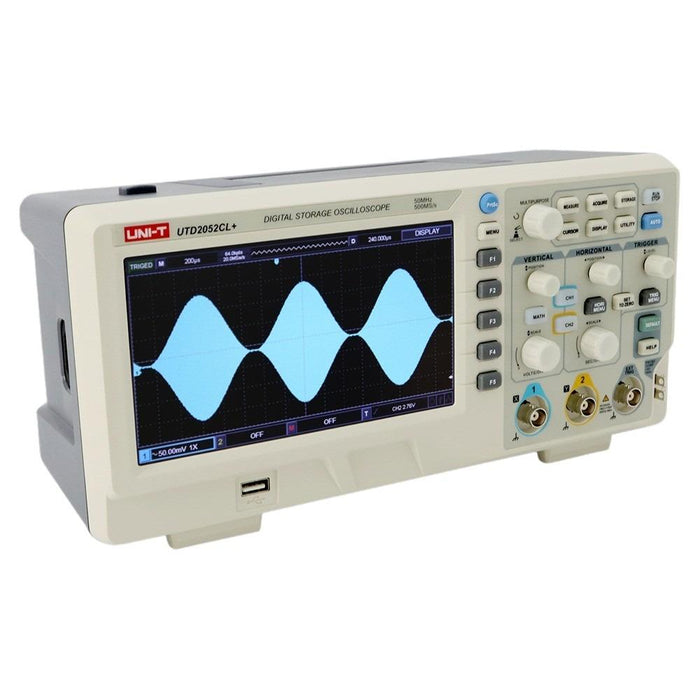

The UTD2052CL+ is a market-proven economical digital oscilloscope. This series of digital oscilloscopes has excellent technical indicators and can meet the main needs of basic testing. The front panel design is clear and intuitive, fully in line with the traditional instrument usage habits, and is convenient for users to operate.
Bandwidth: 50MHz Real time sample rate: 500MSa/s Waveform capture rate: 5000 wfms/s 2 analog channels Maximum memory depth: 64 kpts 7" display Math function Zoom function XY mode (also called Lissajous graphics mode) Brand new AUTO strategy Standard square wave output Automatic parameter measurement Grade Display Alternate trigger
Specification
| Back order lead time | 10 Days |
| Bandwidth | 50MHz |
| Channels | 2 Analogue |
| Digitalanalogue | Digital |
| Display | 7 Inch TFT LCD |
| Memory depth | 64 kpts |
| Rise time | <7ns |
| Sampling rate | 500MSa/s |
| Vertical range | 1mV/div to 20V/div |
| Waveform capture rate | 5000 wfms/s |
