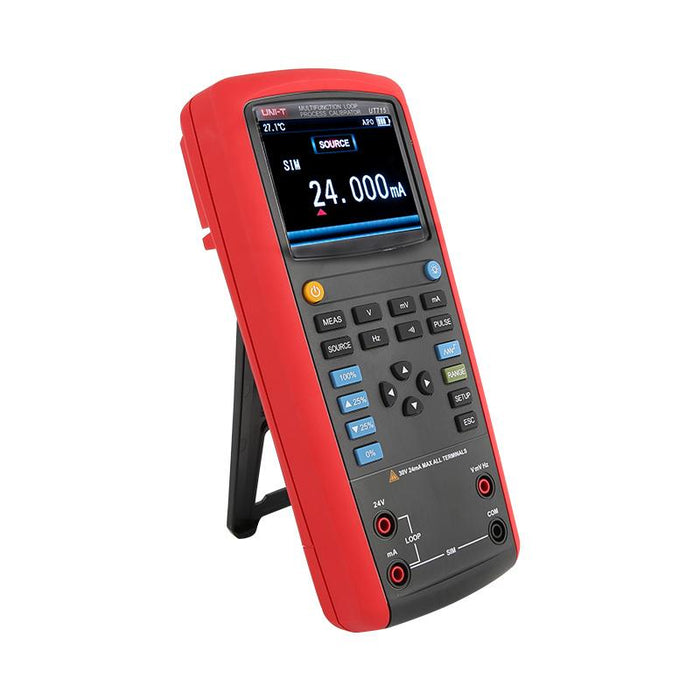

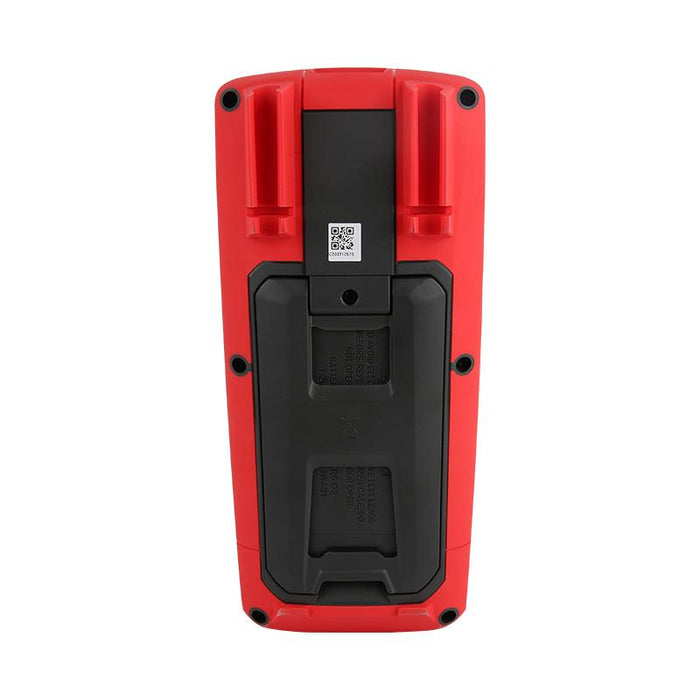

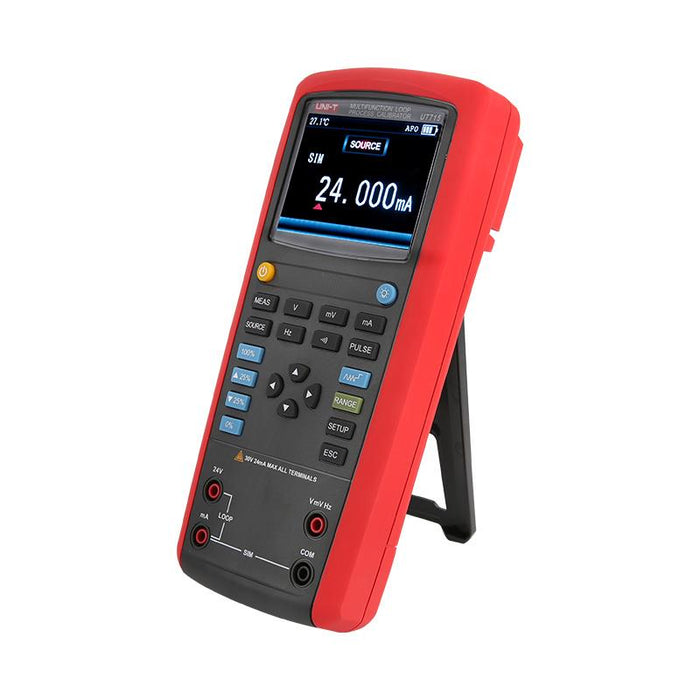

UT715 Multifunction Loop Process Calibrator Uni-T

The UT715 multifunction loop process calibrator measures and sources loop current and voltage. It is designed with 0.02% accuracy, adjustable backlight and auto power off. It is a powerful tool for calibration, repair, and maintenance of mA loops.

DC voltage range: 200mV/30V

DC current range: 24mA

Loop current range: 24mA

Frequency range: 100Hz/1kHz/10kHz/100kHz

Continuity test

Step/ramp functions

Source and measure accuracy up to 0.02%

Rechargeable battery

Contrast adjustment

Auto power off (Time adjustable)

Stores and recalls setups

USB communication

Provides 24V loop power to transmitter while conducting mA current measurement at the same time

Certifications: CE, UKCA
