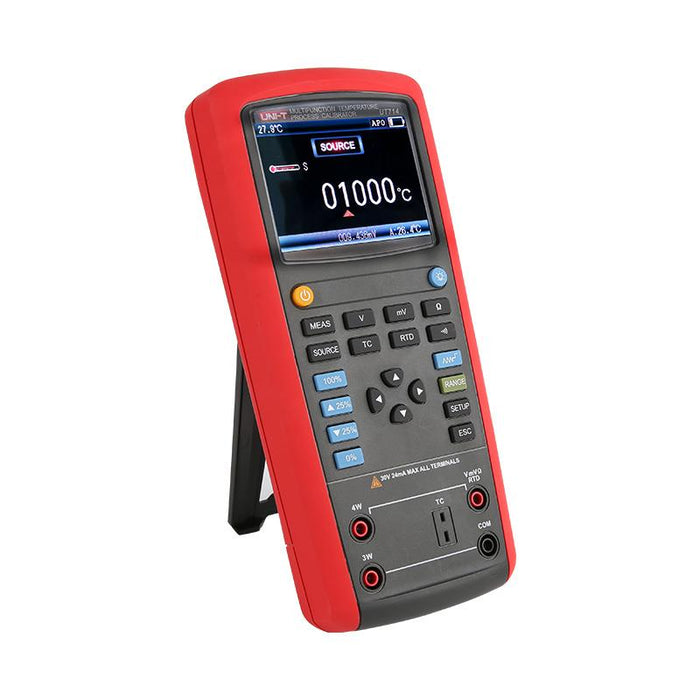

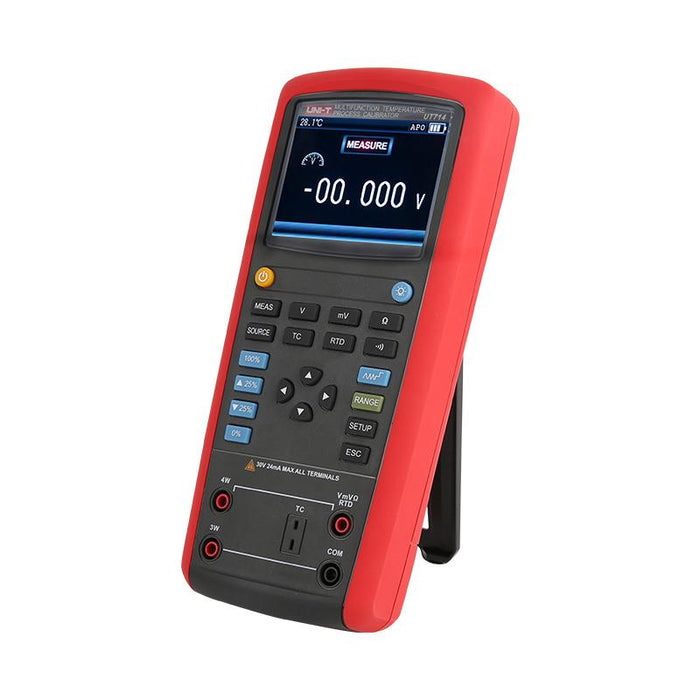

UT714 Multifunction Temperature Process Calibrator Uni-T

The UT714 is powerful temperature calibrator that sources and measures thermocouples, RTDs, voltage, and resistance. It can be used to test and calibrate diffrent types of temperature instruments. This device is suitable for testing input/output temperature terminals such as sensors and transmitters.

DC voltage range: 50mV/500mV/30V

Resistance range: 500Ω/5000Ω

Thermocouples: R,S,K,E,J,T,N,B,L,U

RTDs: Pt100/Pt200/Pt500/Pt1000/Cu10/Cu50/Cu100/Pt100-392/Pt100-JIS/Ni120

Continuity test

Step/ramp functions

Source and measure accuracy up to 0.02%

Rechargeable battery

Contrast adjustment

Auto power off (Time adjustable)

Stores and recalls setups

USB communication

Certifications: CE, UKCA
