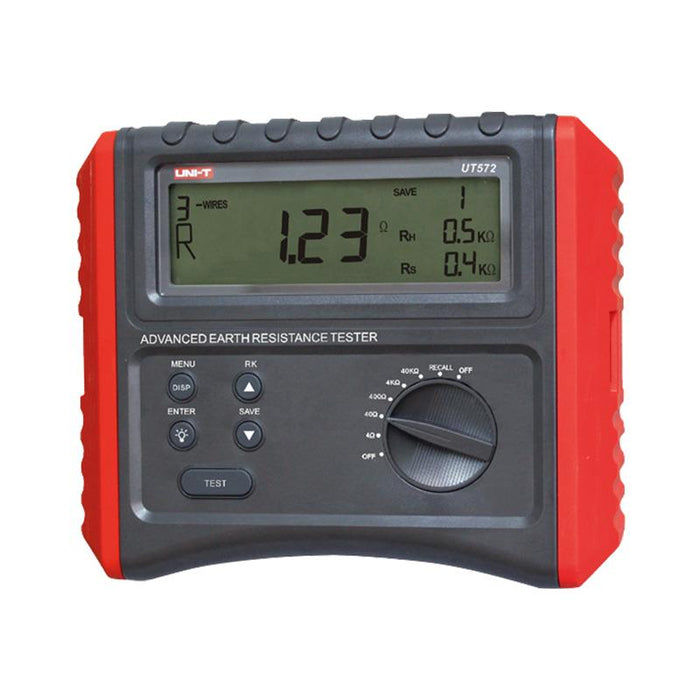

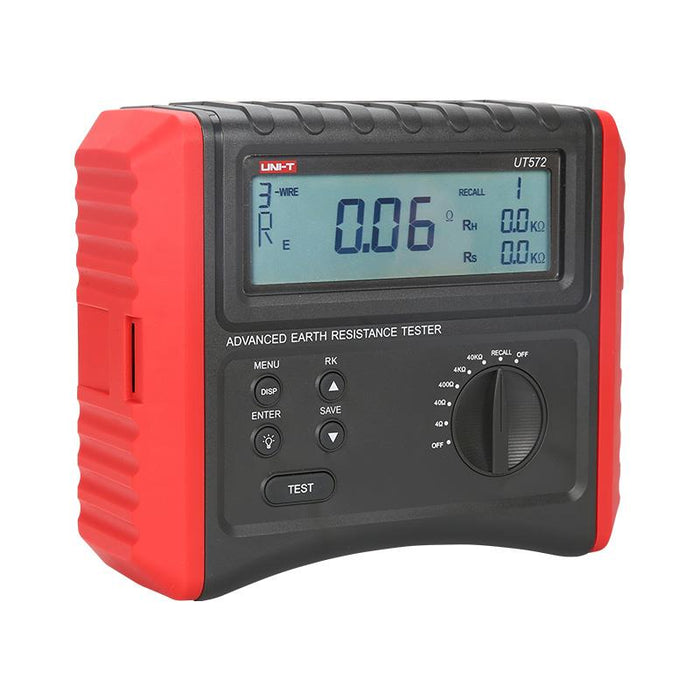

UT572 Advanced Earth Resistance Tester Uni-T

by Uni-T
SKU 488683

MPN: UT572

Availability:
Out of stock
Sold out
Original price £423.45 - Original price £423.45
Original price
£423.45 Inc VAT
£423.45 - £423.45
Current price £423.45 Inc VAT
The UT572 is for measuring earth resistance and soil resistivity. It can automatically check interface connection and detect interference, voltage/frequency, with data hold and indication functions. It can perform 2/3/4-wire measurements for different on-site applications, such as power equipment wiring and lightning protection equipment.

  • Large 4-digit LCD Display, 5s sampling time
  • 2/3/4-wire earth resistance and soil resistivity measurements
  • Selectable test frequencies (94Hz/128Hz)
  • Disturbance voltage (Ust) and frequency (Fst) measurement
  • Earth resistance, RH and RS measurements
  • LCD backlight; auto power off
  • Data hold
  • 20 sets of data storage
  • Double insulation
  • Compensating resistance RK measurement
  • Certifications: CE, UKCA
  • Specification
    Auto power off Yes
    Back order lead time 10 Days
    Data hold Yes
    Lcd backlight Yes
    Low battery indication Yes
    Range Manual
