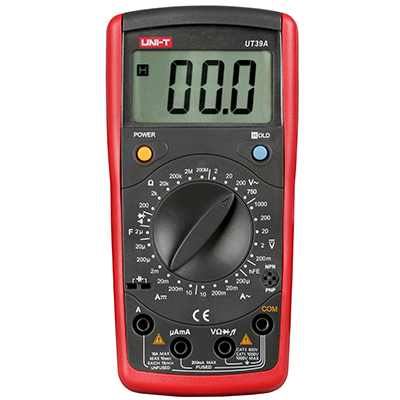

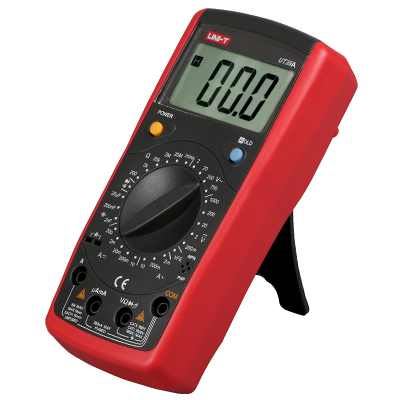

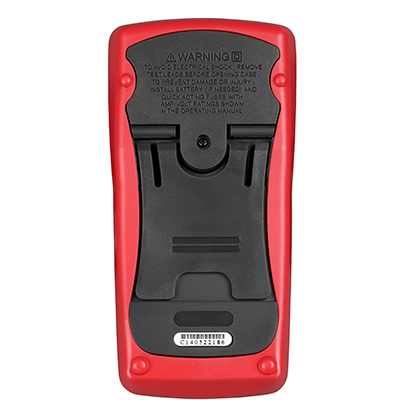

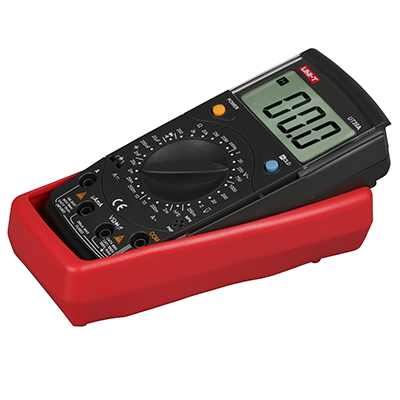

UT39A Modern Digital Multimeter Uni-T
by Uni-T
SKU 551711
MPN: UT39A
Availability:
Out of stock
Sold out
Original price
£19.19
-
Original price
£19.19
Original price
£19.19
Inc VAT
£19.19
-
£19.19
Current price
£19.19
Inc VAT
The UT39A is a 3 1/2 digit multimeter with steady operation, fashionable structure and highly reliable hand-held measuring instrument. The Meter uses large scale of integrated circuit with double integrated A/D converter as its core and has full range overload protection. The Meter not only can measure AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Temperature, Transistor, Frequency, Diodes and Continuity, but also has Data Hold and Sleep Mode features.
9V battery 61 x 32mm LCD screen Dimensions: 172 x 83 x 38mm (H x W x L) Comes with battery, test leads and manual
Specification
| Auto power off | Yes |
| Back order lead time | 120 Days |
| Continuity buzzer | Yes |
| Data hold | Yes |
| Display count | 1999 |
| Form factor | Handheld |
| Frequency | 2kHz to 20kHz |
| Low battery indication | Yes |
| Maximum ac current | 10A |
| Maximum ac voltage | 750V |
| Maximum capacitance | 2µF |
| Maximum dc current | 10A |
| Maximum dc voltage | 1000V |
| Maximum resistance | 200MΩ |
| Operating temperature | 0 to 40°C |
| Range | Manual |
| Transistor test | Yes |
