UT243 Power & Harmonics True RMS Auto Digital Clamp Meter Uni-T
by Uni-T
SKU 488663
MPN: UT243
Availability:
Only 1 left!
Original price
£267.53
-
Original price
£267.53
Original price
£267.53
Inc VAT
£267.53
-
£267.53
Current price
£267.53
Inc VAT

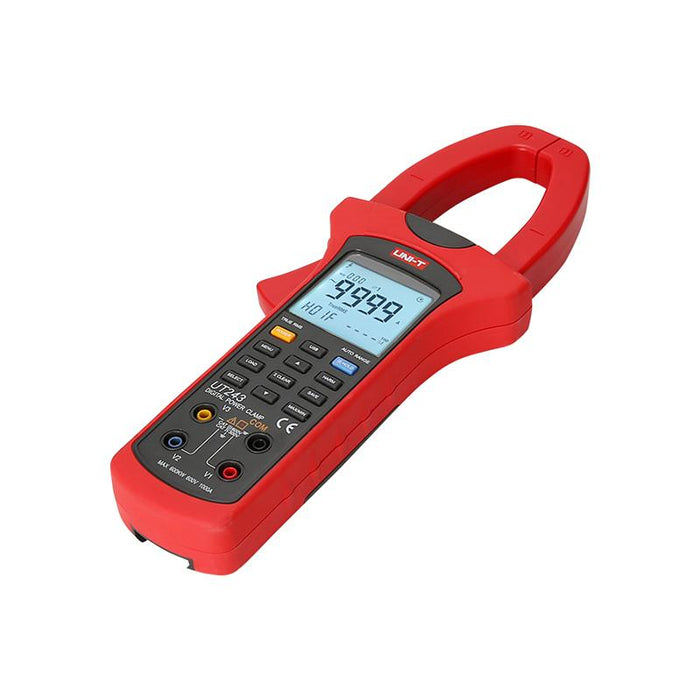

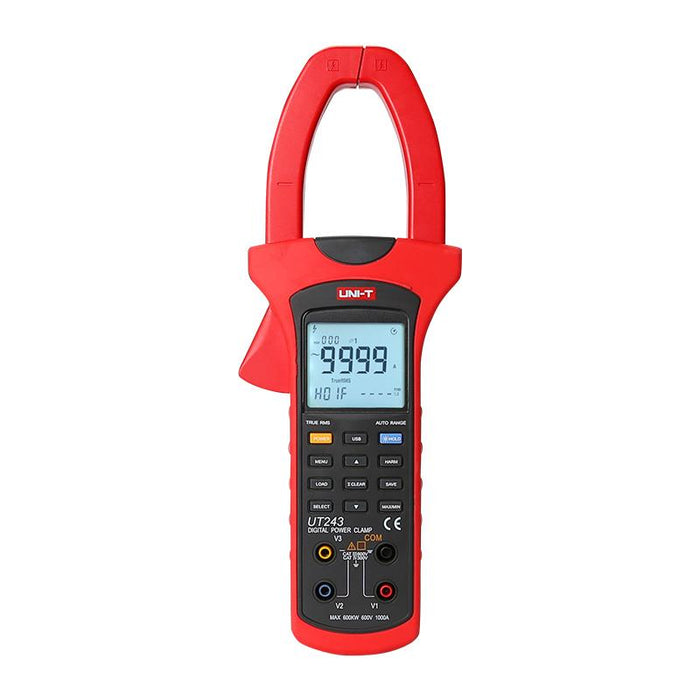

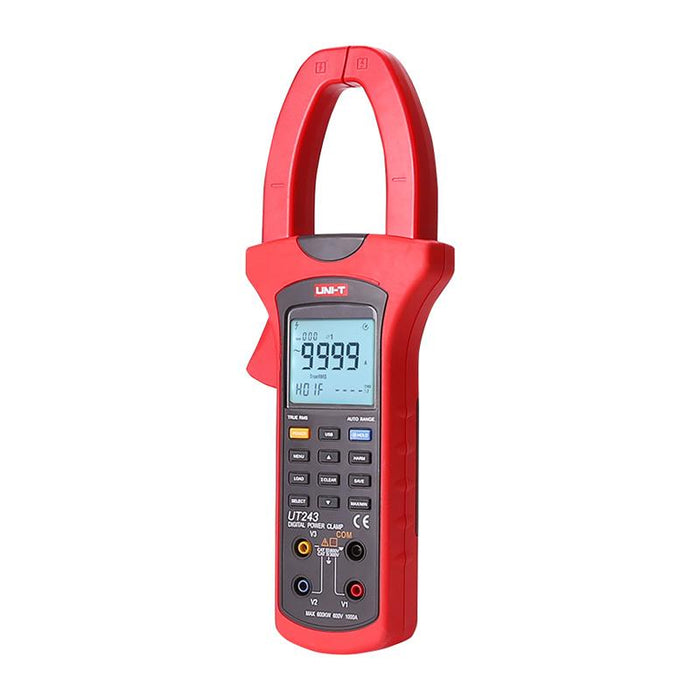

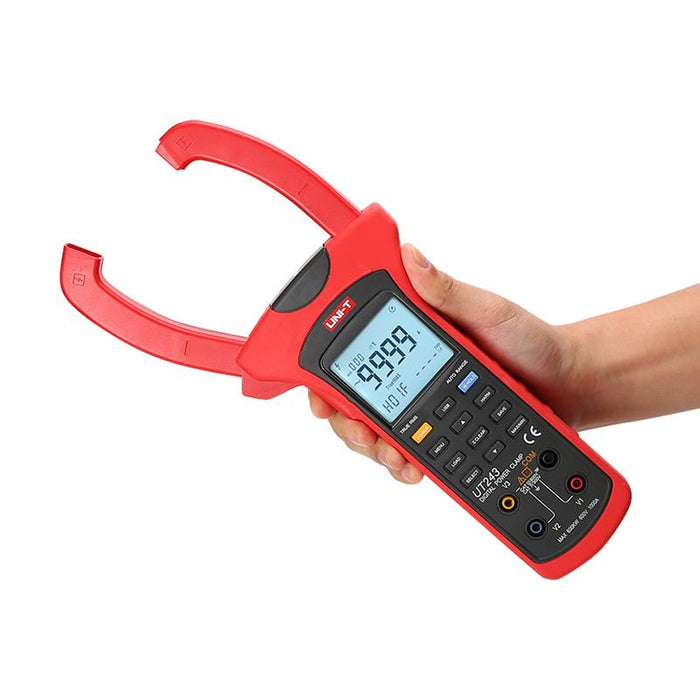

The UT243 is an intelligent, handheld and stable clamp meter, with functions including digital ammeter and power meter. It can measure voltage, current, active/reactive power, power factor, phase angle and more. The UT243 can measure single harmonic components up to 20 times.
True RMS voltage/current measurement 3-phase 3-wire, 3-phase 4-wire and single-phase 2-wire measurements 10000 count LCD dual display Phase sequence detection Max/Min modes Auto range, auto power off, backlight, low battery indication Equipped with USB interface and PC software CD Current rating: 1000A Voltage rating: 600VAC Certifications: CE, UKCA
Specification
| Auto power off | Yes |
| Back order lead time | 10 Days |
| Data hold | Yes |
| Display count | 10000 |
| Form factor | Handheld |
| Frequency | 40Hz to 80Hz |
| Lcd backlight | Yes |
| Low battery indication | Yes |
| Maximum ac current | 1000A |
| Maximum ac voltage | 600V |
| Max min mode | Yes |
| Range | Auto |
| True rms | Yes |
