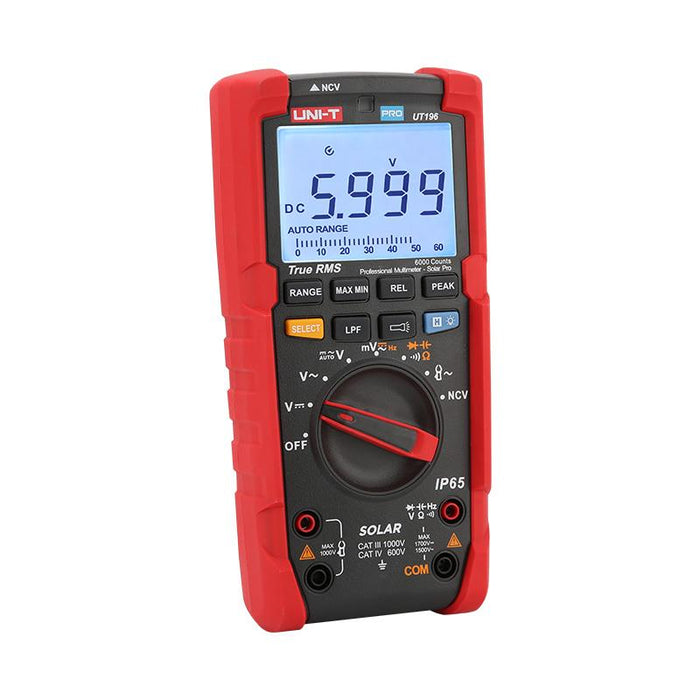

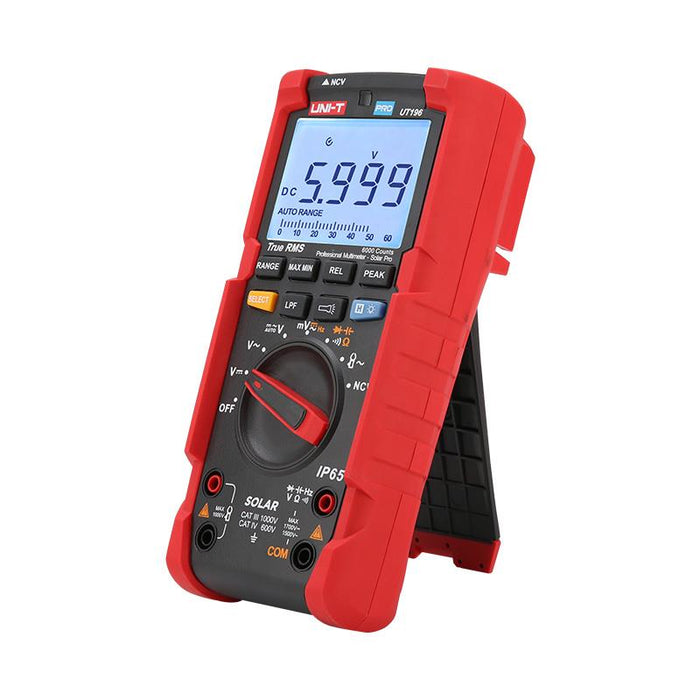

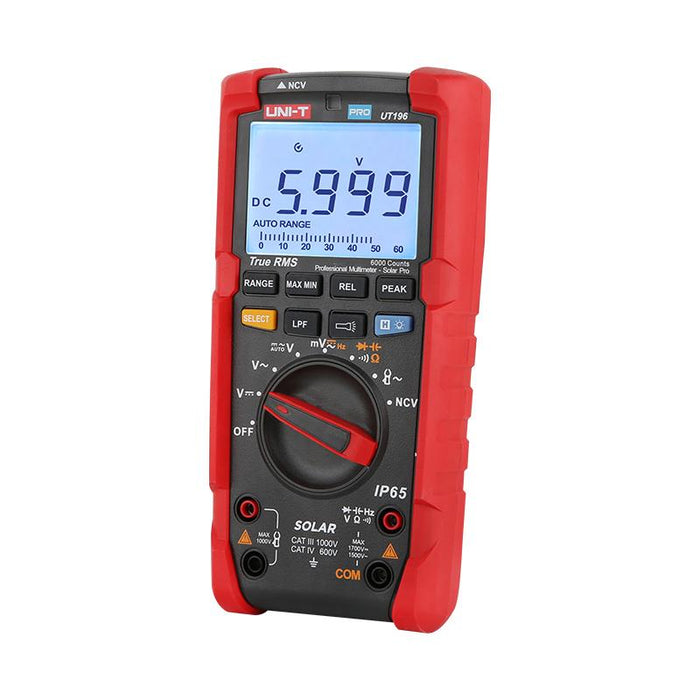

UT196 Solar True RMS Auto Range Digital Multimeter 1700V IP65 Uni-T

by Uni-T
SKU 488654

MPN: UT196

Out of stock
Sold out
Original price £126.82 - Original price £126.82
Original price
£126.82 Inc VAT
£126.82 - £126.82
Current price £126.82 Inc VAT
The UT196 True RMS solar digital multimeter is an ideal tool for solar power system maintenance. This rugged meter is designed for technicians who work in rugged outdoor environments. UT196 can measure up to 1700V DC and 1500V AC voltages, and 3000A AC current with an external current clamp sensor. This solar meter offers IP65 protection and able to withstand 2m drop as well. It is tested for safe usage in CAT III 1000V, CAT IV 600V environments.

  • True RMS
  • Measure up to 1700V DC and 1500V AC for high voltage applications e.g. solar array, wind
  • IP65 protection
  • CAT III 1000V, CAT IV 600V
  • Analog bar
  • Frequency response_45Hz~1kHz
  • Low-pass filter function
  • Low impedance mode

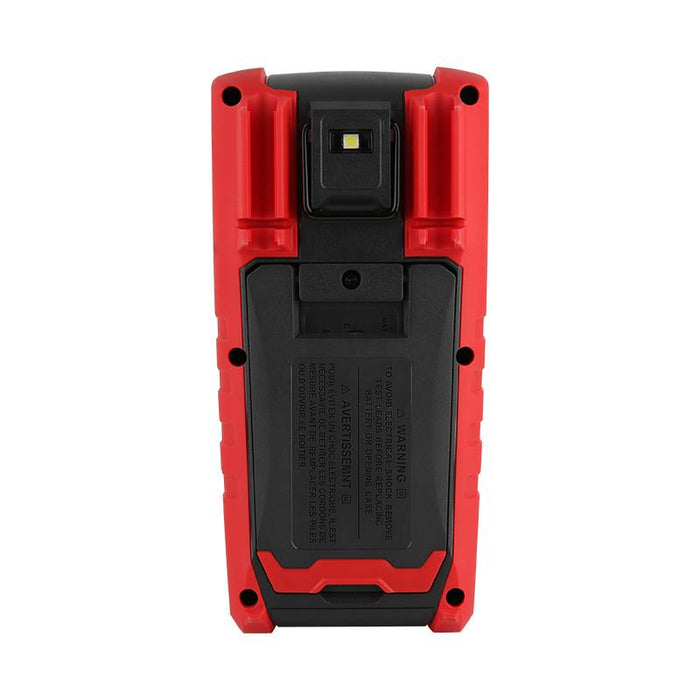

  • Built-in flashlight, bright backlight and visual alarm
  • Certifications: CE, UKCA, cETLus
  • Specification
    Auto power off Yes
    Back order lead time 10 Days
    Data hold Yes
    Display count 6000
    Form factor Handheld
    Frequency 1MHz
    Lcd backlight Yes
    Low battery indication Yes
    Maximum ac voltage 1500V
    Maximum capacitance 60mF
    Maximum dc voltage 1700V
    Maximum resistance 60MΩ
    Max min mode Yes
    Range Auto
    True rms Yes
