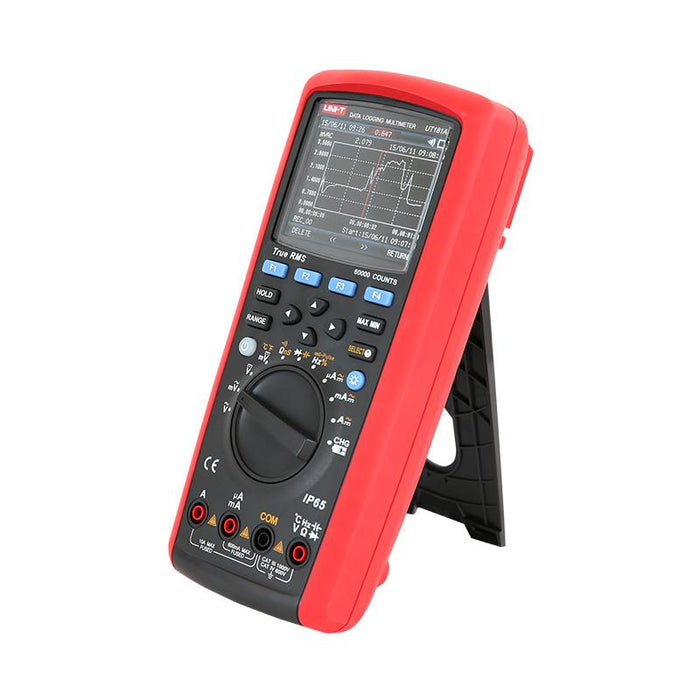

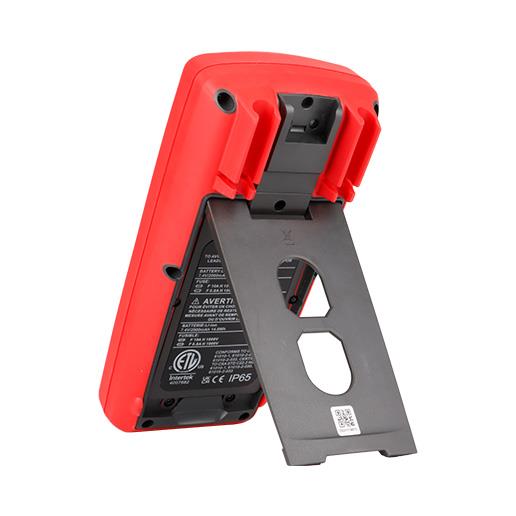

UT181A True RMS Datalogging Digital Multimeter Uni-T

by Uni-T
SKU 488650

MPN: UT181A

Availability:
Only 2 left!
Original price £356.13 - Original price £356.13
Original price
£356.13 Inc VAT
£356.13 - £356.13
Current price £356.13 Inc VAT
The UT181A is a digital multimeter with trend capture, true RMS, low pass filter, nS conductance, dual temperature measurement, and more. With the help of the datalogging feature, users can store up to 20000 sets of measurement data and display them on a trend graph for long term monitoring.

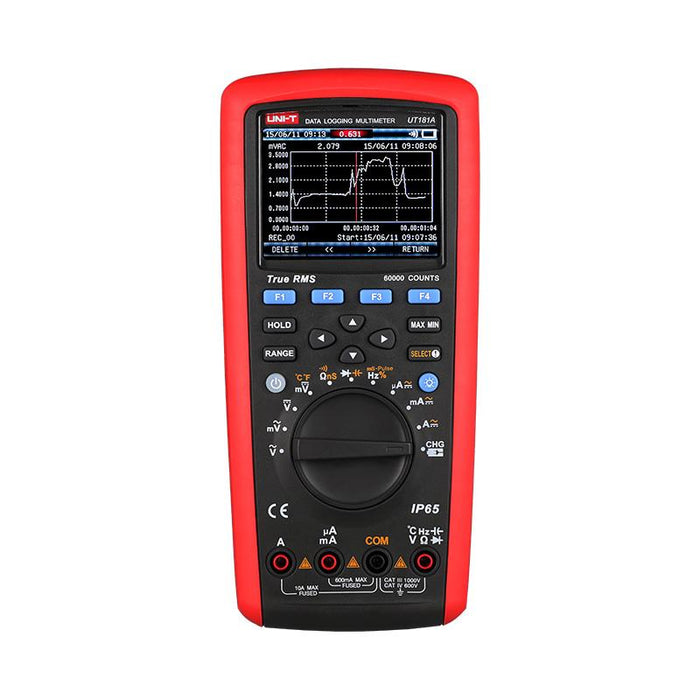

  • Trend capture
  • Data logging: 20000
  • Data comparison
  • 3.5-inch 64k color TFT LCD
  • Dual temperature measurement
  • Low pass filter
  • 2000mAh Li-ion battery
  • Real time and date
  • Peak hold

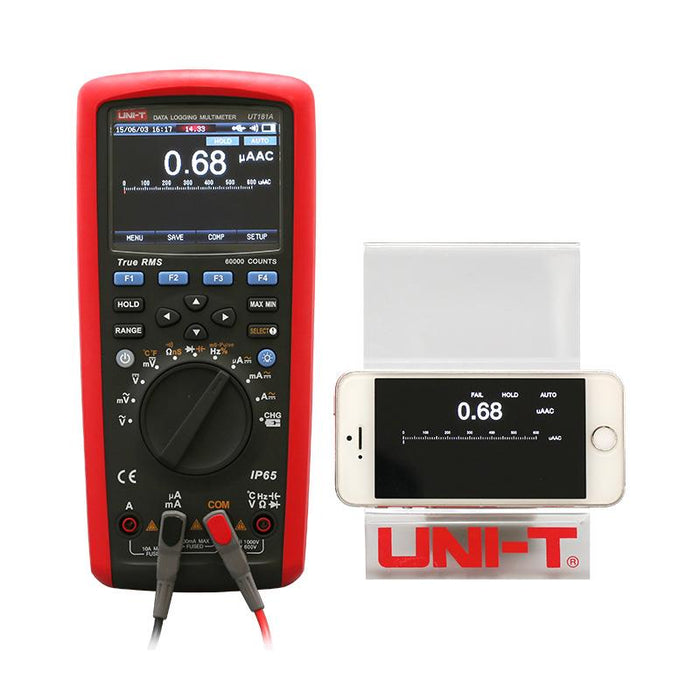

  • Bluetooth/APP

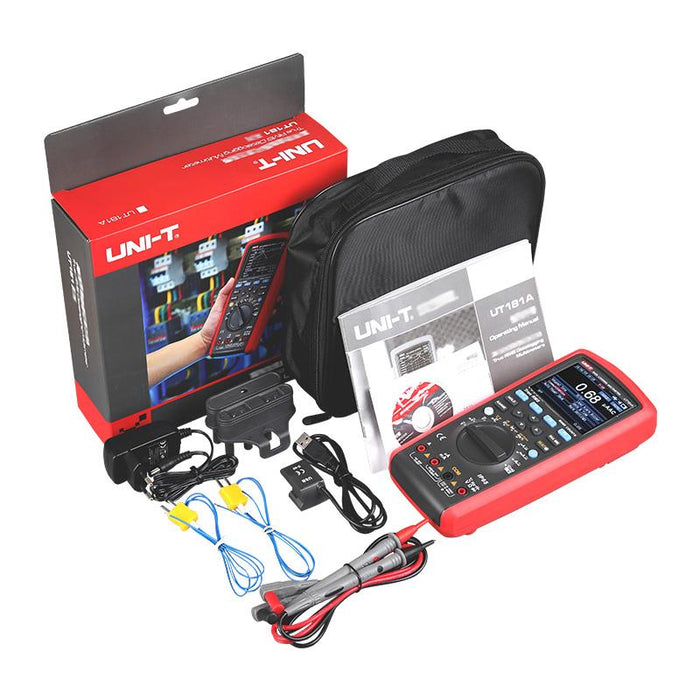

  • USB interface cable /PC software CD
  • IP65
  • Voltage rating: 1000VAC/DC
  • Current rating: 10A
  • Resistance rating: 60MΩ
  • Admittance rating: 60nS
  • Capacitance rating: 60mF
  • Frequency range: 10Hz~60MHz
  • Temperature range: -40°C~1000°C
  • Certifications: CE, UKCA, cETLus
  • Specification
    Auto power off Yes
    Back order lead time 10 Days
    Continuity buzzer Yes
    Data hold Yes
    Display count 60000
    Form factor Handheld
    Frequency 10Hz to 60MHz
    Lcd backlight Yes
    Low battery indication Yes
    Maximum ac current 10A
    Maximum ac voltage 1000V
    Maximum capacitance 60mF
    Maximum dc current 10A
    Maximum dc voltage 1000V
    Maximum resistance 60MΩ
    Max min mode Yes
    Range Auto
    Temperature range -40℃ to 1000℃
    True rms Yes
