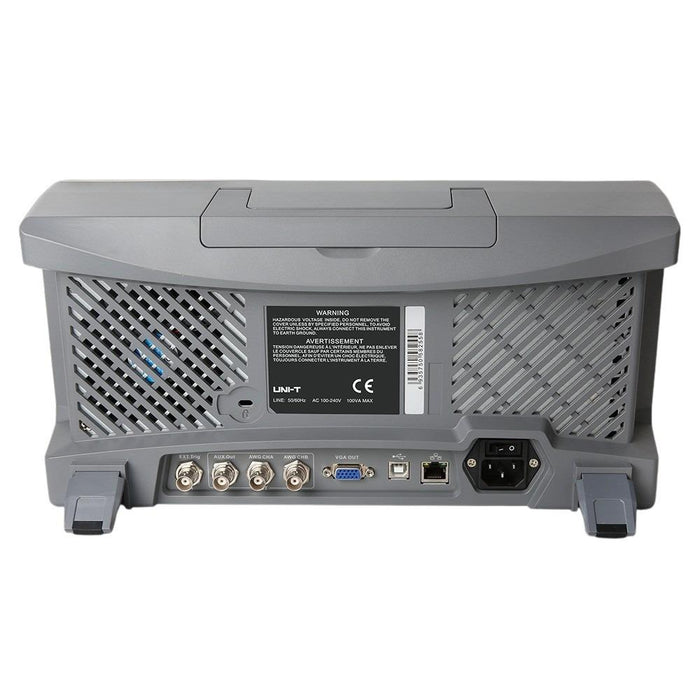

UPO3352E 2 Analog 16 Digital Channel Oscilloscope Touch Screen 350MHz Uni-T

by Uni-T
SKU 488989

MPN: UPO3352E

Availability:
Out of stock
Sold out
Original price £1,395.20 - Original price £1,395.20
Original price
£1,395.20 Inc VAT
£1,395.20 - £1,395.20
Current price £1,395.20 Inc VAT
The UPO3352E digital phosphor oscilloscope is a multifunctional and high-performanceoscilloscope based on UNI-T's original Ultra Phosphor 2.0 technology. It realizes the combinationof ease of use, excellent technical indicators and many functional features. It can help users complete the measurement work faster. It is an oscilloscope designed for general design / debugging / testing needs in many fields, such as communication, semiconductor, computer, instrumentation, industrial electronics, consumer electronics, automotive electronics, on-site maintenance, R & D / education, etc. Fast Acquire technology can accurately capture abnormal events such as video, jitter, noise and low wave signals.

  • Bandwidth: 350MHz
  • Real time sample rate: 2.5GSa/s
  • Waveform capture rate: 1,000,000 wfms/s
  • 2 analog channels
  • Maximum memory depth: 250Mpts
  • 8 inch interactive touch screen
  • Rich measurement functions
  • XY mode
  • Ultra high capture rate
  • 256-level grayscale display
  • Channel split screen function Multi-Scopes 2.0
  • Memory depth 70Mpts per channel
  • Rich trigger function
  • Full memory hardware decoding
  • Area trigger
  • Bode plot
  • LA Logic Analyzer
  • Specification
    Back order lead time 10 Days
    Bandwidth 350MHz
    Channels 2 Analogue 16 Digital
    Digitalanalogue Digital
    Display 8 Inch Touch Screen
    Memory depth 250Mpts
    Rise time <1ns
    Sampling rate 2.5GSa/s
    Vertical range 1mV/div to 10V/div
    Waveform capture rate 1,000,000 wfms/s
