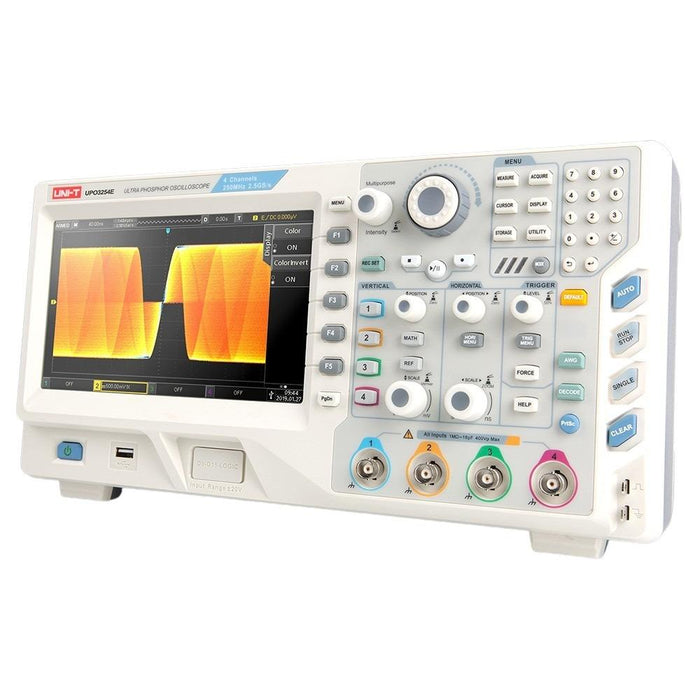

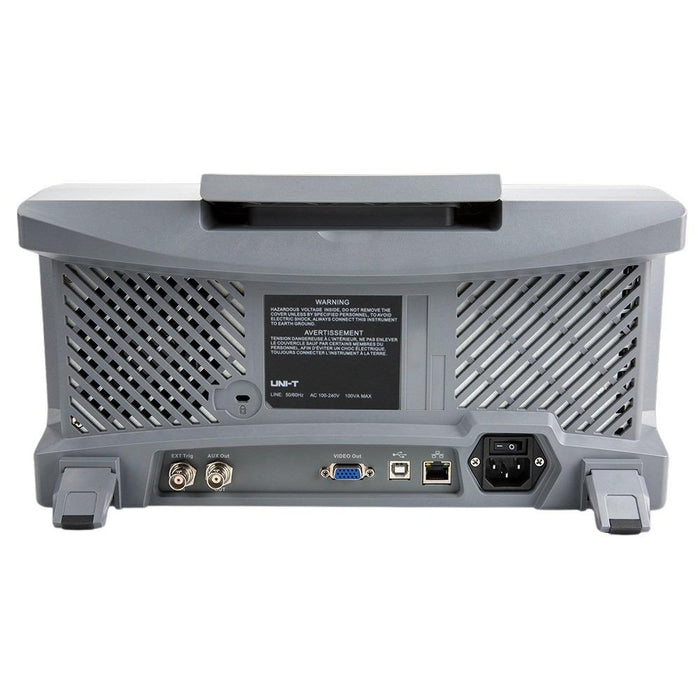

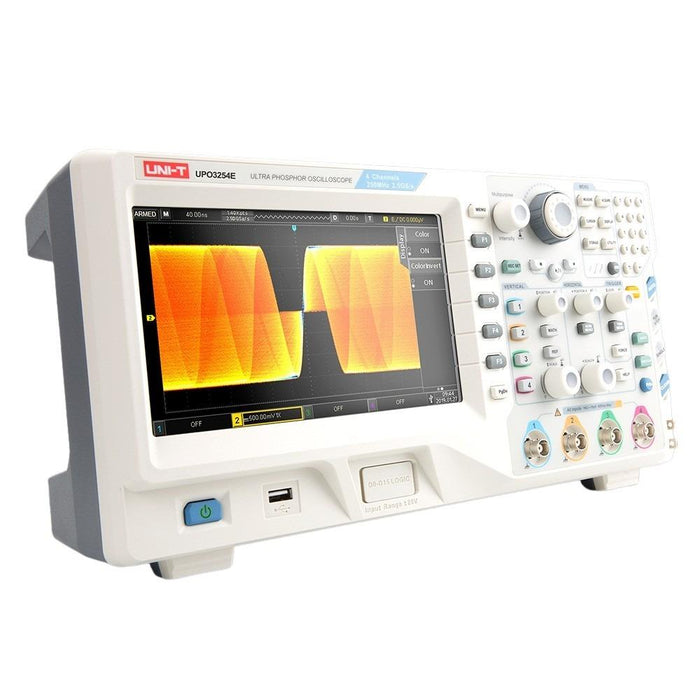

UPO3254E Digital Storage 4 Channel Analog Oscilloscope 250MHz Uni-T

by Uni-T
SKU 488990

MPN: UPO3254E

Availability:
Out of stock
Sold out
Original price £1,397.92 - Original price £1,397.92
Original price
£1,397.92 Inc VAT
£1,397.92 - £1,397.92
Current price £1,397.92 Inc VAT
The UPO3254E digital phosphor oscilloscope is a multifunctional and high-performanceoscilloscope based on UNI-T's original Ultra Phosphor 2.0 technology. It realizes the combinationof ease of use, excellent technical indicators and many functional features. It can help users complete the measurement work faster. It is an oscilloscope designed for general design / debugging / testing needs in many fields, such as communication, semiconductor, computer, instrumentation, industrial electronics, consumer electronics, automotive electronics, on-site maintenance, R & D / education, etc. Fast Acquire technology can accurately capture abnormal events such as video, jitter, noise and low wave signals.

  • Bandwidth: 250MHz
  • Real time sample rate: 2.5GSa/s
  • Waveform capture rate: 200,000 wfms/s
  • 4 channels
  • Maximum memory depth: 70Mpts
  • 8 inch screen
  • Rich measurement functions
  • XY mode
  • Ultra high capture rate
  • 256-level grayscale display
  • Channel split screen function Multi-Scopes 2.0
  • Memory depth 70Mpts per channel
  • Rich trigger function
  • Full memory hardware decoding
  • Area trigger
  • Bode plot
  • LA Logic Analyzer
  • Specification
    Back order lead time 10 Days
    Bandwidth 250MHz
    Channels 4 Analogue
    Digitalanalogue Digital
    Display 8 Inch TFT LCD
    Memory depth 70Mpts
    Sampling rate 2.5GSa/s
    Vertical range 1mV/div to 20V/div
    Waveform capture rate 200,000 wfms/s
