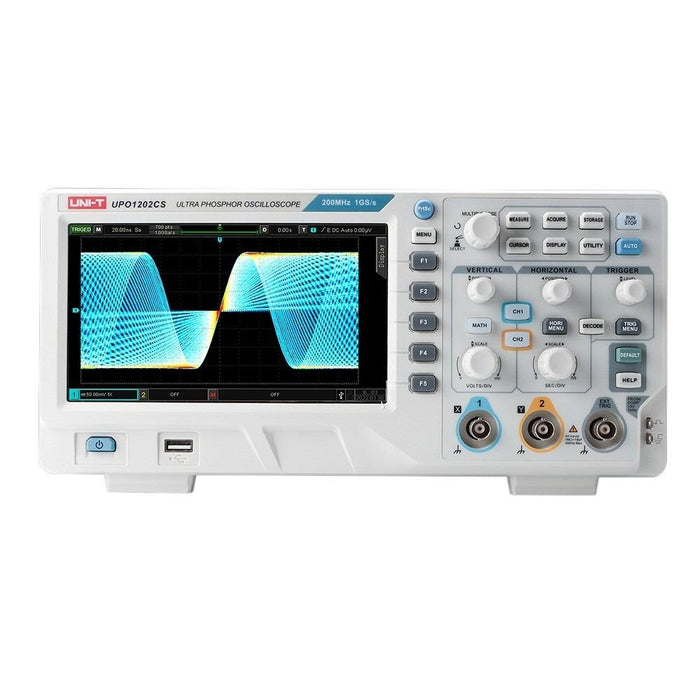

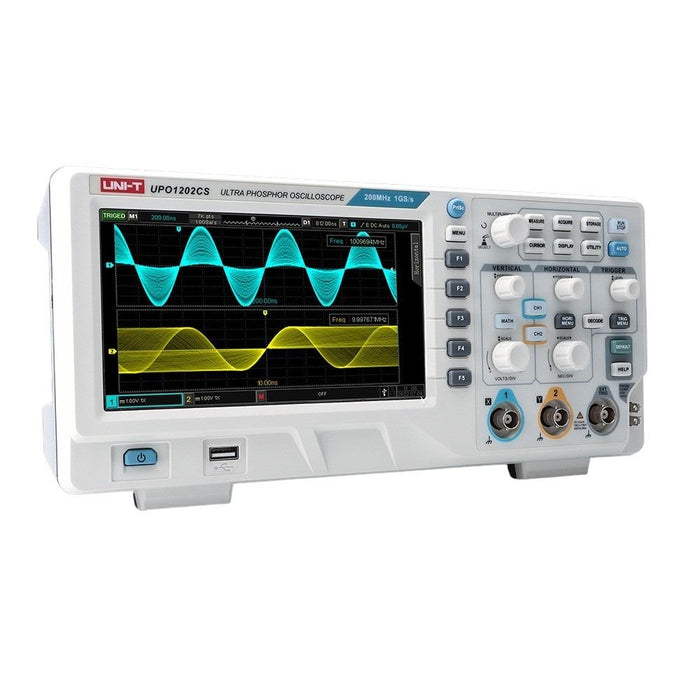

UPO1202CS Digital Storage 2 Channel Analog Oscilloscope 200MHz Uni-T

The UPO1202CS is a multi-function, cost-effective digital phosphor oscilloscope. It can be widely used in the fields of electronic and electrical design, debugging, education and industrial design. UPO1202CS adopts parallel digital signal processing technology, which greatly improves the data processing speed and waveform capture rate. The original Ultra Phosphor technology can present the cumulative effect of the tested signal as a multi-layered afterglow. Compared with traditional digital storage oscilloscopes, the persistence of digital phosphor oscilloscopes can present three-dimensional waveform data of amplitude, time and signal intensity. Fast Acquire technology can accurately capture abnormal events such as video, jitter, noise and runt signals.

Bandwidth: 200MHz

Real time sample rate: 1GSa/s

Waveform capture rate: 150,000 wfms/s

2 analog channels

Maximum memory depth: 56 Mpts

7" display

Web control

1Mpts FFT sampling point

Multi-scopes

Serial bus trigger and hardware decoding

Deep storage depth

Ultra high capture rate

256 gray level display
