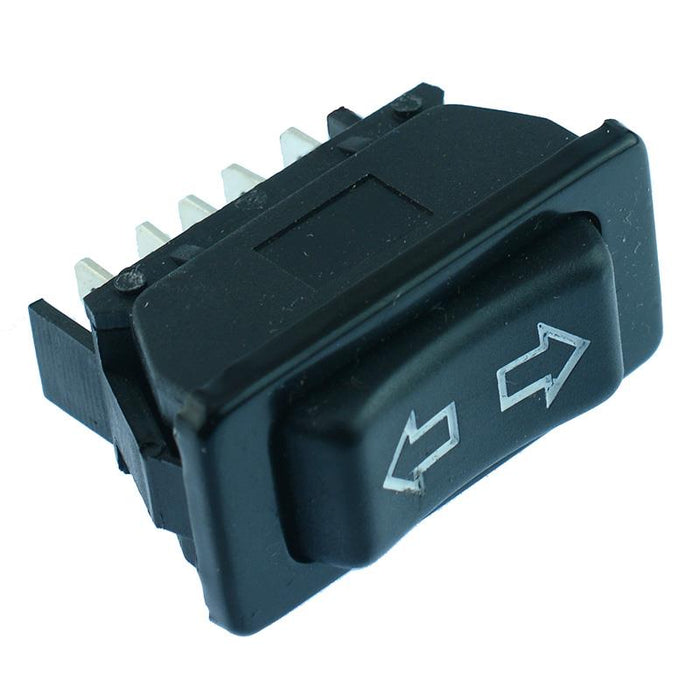

Universal Electric Window / Aerial Switch 5-Pin 12V

SKU 132007

MPN: 132007

Availability:
270 in stock
Original price £2.83 - Original price £2.83
Original price
£2.83 Inc VAT
£2.83 - £2.83
Current price £2.83 Inc VAT
Momentary rocker switch with 3 positions commonly used for automotive applications to operate windows or aerials.

  • (On)-Off-(On) action
  • DPDT contacts
  • 5 terminals
  • Panel cut-out: 36 x 18mm
  • Snap-in mounting
  • Specification
    Back order lead time 45 Days
    Contact rating 20A 12VDC
    Current rating 20A
    Illuminated No
    Mounting style Panel
    Number of positions 3
    Operating temperature -25°C to +85°C
    Panel cut out 36 x 18mm
    Switch operation (On)-Off-(On)
    Terminal type Quick Connect
    Voltage rating 12VDC
