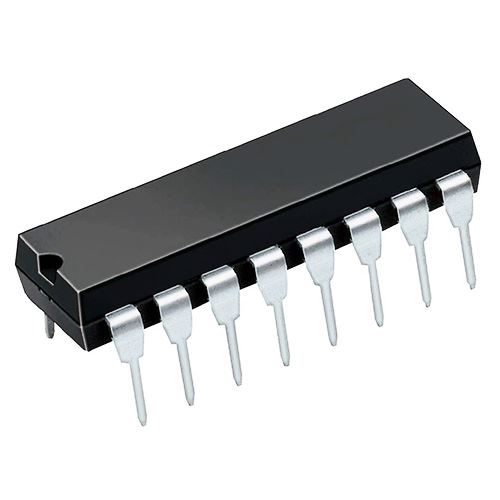

ULN2003 Seven Darlington Transistor Array
by ST
SKU 551427
MPN: ULN2003
Availability:
17 in stock
Original price
£1.03
-
Original price
£1.03
Original price
£1.03
Inc VAT
£1.03
-
£1.03
Current price
£1.03
Inc VAT
The ULN2003 are high voltage, high current darlington arrays each containing seven open collector darlington pairs with common emitters. Each channel rated at 500mA and can withstand peak currents of 600mA. Suppression diodes are included for inductive load driving and the inputs are pinned opposite the outputs to simplify board layout.
Seven darlingtons per package Output current 500mA per driver Output voltage: 50V Integrated suppression diodes for inductive loads Outputs can be paralleled for higher current TTL/CMOS/PMOS/DTL compatible inputs Inputs pinned opposite outputs to simplify layout Package: DIL-16
Specification
| Back order lead time | 5 Days |
| Function | Function |
| Number of channels | Number of Channels |
| Package | Package |
| Supply voltage | Supply Voltage |
