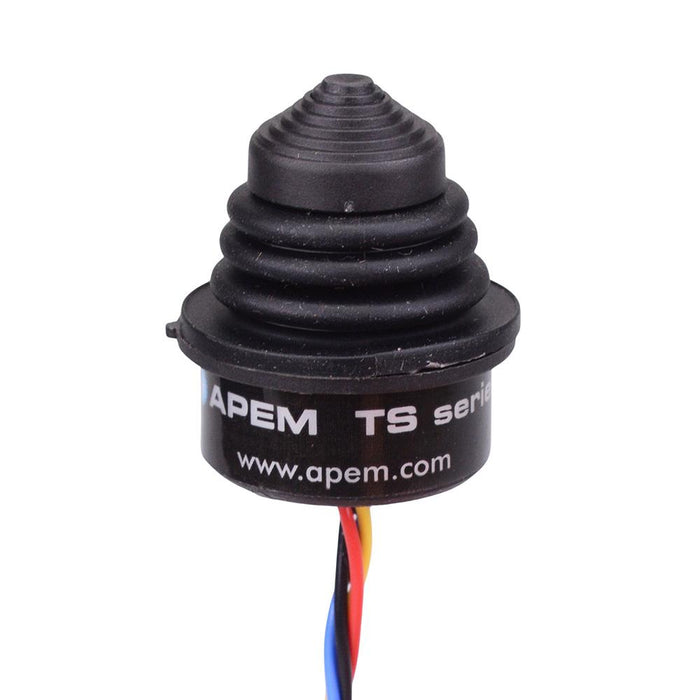

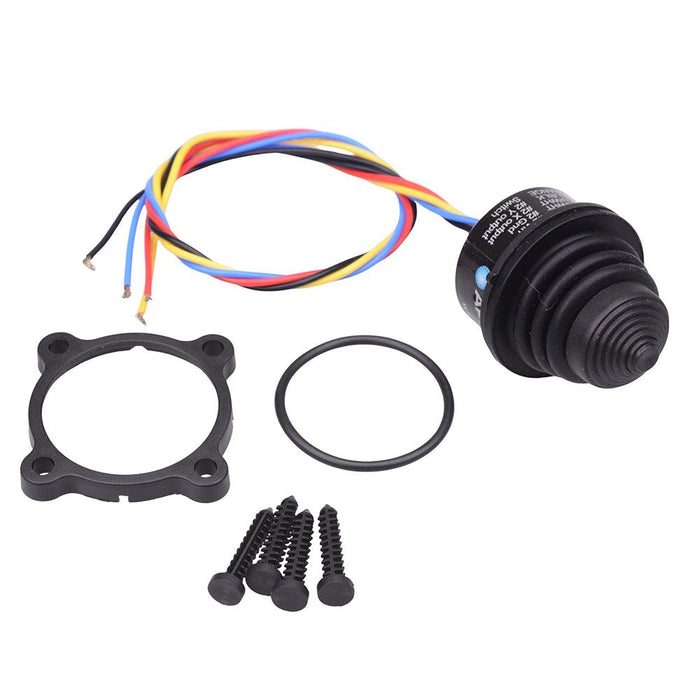

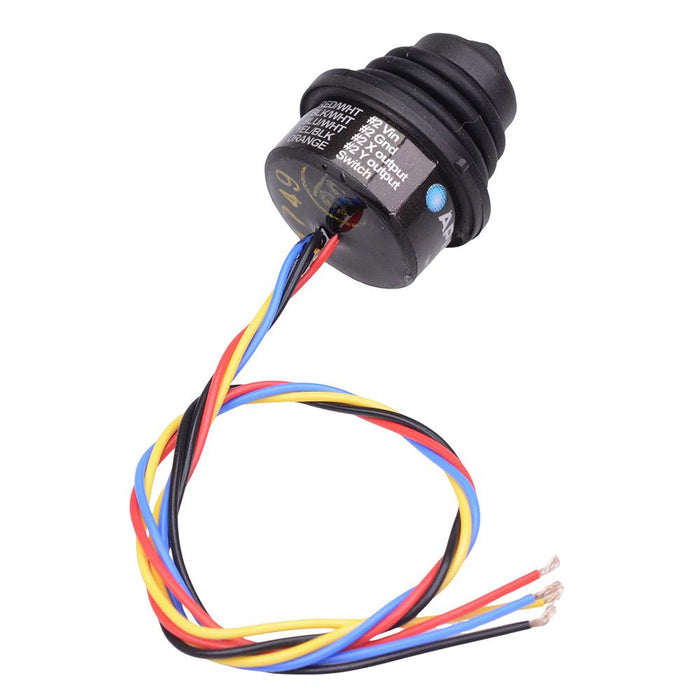

TS3D1S02A 2-Axis Thumb Joystick Hall Effect IP69K APEM
by APEM
SKU 492772
MPN: TS3D1S02A
Availability:
Out of stock
Sold out
Original price
£138.85
-
Original price
£138.85
Original price
£138.85
£138.85
-
£138.85
Current price
£138.85
The TS3D1S02A is a miniature thumb control joystick by APEM, utilising non-contacting hall effect technology. The joystick features 2 axis and a conical handle, designed for drop-in mounting. The IP67 protection rating and 1,000,000 cycle life expectancy, makes it suitable for a wide range of demanding applications.
Supply voltage: 5V Output voltage: 0.5-4.5V Spring return to center IP67 sealing Conical handle Drop-in mounting Square limiter Panel cut-out: 36.45 x 16.05mm 22AWG 25cm cable Wiring specification: BK ground, RD 5V power, BU, X axis output, YW Y axis output
Specification
| Back Order Lead Time | 150 Days |
| Handle | Conical |
| Joystick Travel | 50° |
| Mechanical Life | 1,000,000 Cycles |
| MOQ | 1 |
| Number of Axis | 2 |
| Operating Temperature | -25°C to +70°C |
| Protection Level | IP69K |
| Rating | 50mA 12VDC |
| Technology | Hall Effect |
| Terminal Type | Tail Leads |
