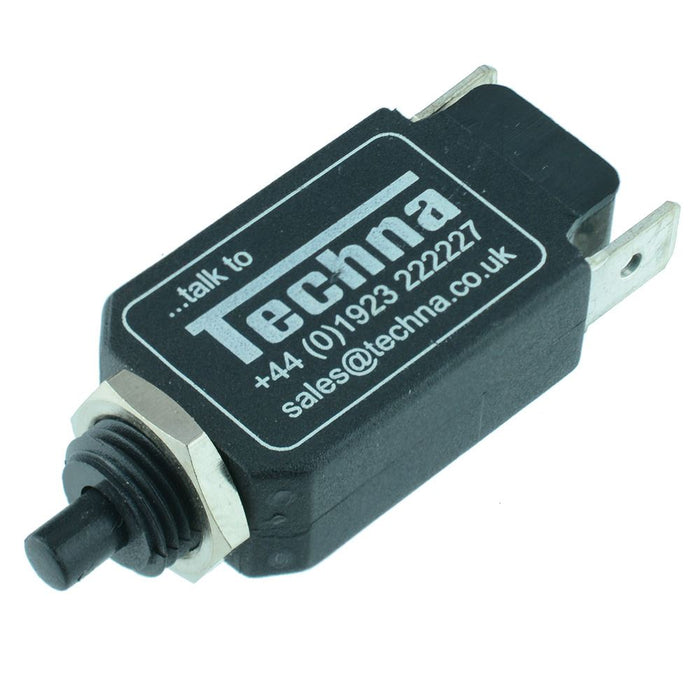

TR11CX01S6 Techna 1A Miniature Thermal Circuit Breaker

by Techna
SKU 480794

MPN: TR11CX01S6

Availability:
45 in stock
Original price £3.54 - Original price £3.54
Original price
£3.54 Inc VAT
£3.54 - £3.54
Current price £3.54 Inc VAT
1A miniature panel mount circuit breaker from the TR11 series, manufactured by Techna. The breaker features a push to reset button, providing a trip free operation on overloads and short circuits. Suitable for a wide range of applications including single phase motors.

  • 1A current rating
  • 250Vac voltage rating
  • 6.3mm quick connect terminals
  • Push button reset
  • 10.2mm panel cut-out
  • Single pole
  • 19 x 42mm dimensions (width x height)
  • Specification
    Back order lead time 5 Days
    Current rating 1A
    Interrupting capacity 1000A
    Mounting style Panel
    Operating temperature 60°C Maximum
    Panel cut out 10.2 x 9.4mm
    Voltage rating 250V
